5W Custom 4.3 Inch to 22" 5W Resistive Touch Panel With USB Cable and Controller

Product Details:

Place of Origin:China
Brand Name:Dopo touch
Certification:CE,FCC,ROHS
Model Number:DPT-5W-xx

Payment & Shipping Terms:

Minimum Order Quantity:10pcs
Packaging Details:Standard export package
Delivery Time:7-15 working days
Payment Terms:T/T,westen union
Supply Ability:60Kpcs/month
Detailed Product Description

Custom 4.3 Inch to 22" 5W Resistive Touch Panel With USB Cable and Controller



5W RTP size list



No.

Size

5W  Item NO.

OD(mm)

VA(mm)

AA(mm)

1

4”-22”

Customized size







2

10.4”

TP104W5BZ

234.00*178.00

216.00*163.40

212.00*159.40

3

12.1”

TP121W5BZ

266.00*203.20

253.50*191.50

248.00*186.00

4

TP121W5H1

263.00*200.00

250.30*191.00

245.30*186.00

5

TP121W5K

275.80*178.00

264.10*166.20

261.10*163.20

6

TP121W5N1

279.00*215.60

253.80*192.10

245.80*184.10

7

TP121W5N2

271.00*206.00

252.00*190.00

248.00*186.00

8

14”

TP14W5K

319.40*198.60

306.80*186.80

305.80*185.80

9

14.1”

TP141W5BZ

304.00*231.00

289.00*218.00

285.00*214.00

10

15”

TP15W5BD

322.00*247.00

310.50*236.00

302.00*226.00

11

TP15W5BZ

322.00*247.00

310.50*236.00

304.00*228.00

12

TP15W5H1

321.20*246.00

306.96*232.16

304.04*228.09

13

TP15W5K

 346.20*217.00

331.20*217.00

327.20*203.00

14

TP15W5N1

317.00*241.00

305.00*229.40

304.00*228.00

15

TP15W5N2

325.00*252.50

311.70*235.70

304.00*228.00

16

TP15W5N3

328.00*255.00

310.50*236.00

302.00*226.00

17

15.4”

TP154W5K

346.90*223.00

335.00*210.70

331.20*207.00

18

15.6”

TP156W5K

359.00*212.00

347.30*196.60

344.30*193.60

19

TP156W5N1

359.00*209.00

345.00*195.00

342.00*192.00

20

TP156W5N2

359.00*209.20

344.00*194.00

341.00*191.00

21

15.7”

 TP157W5K

 364.00*215.00

351.00*200.00

348.00*197.00

22

17”

TP17W5BZ

355.00*288.00

341.50*275.00

337.00*269.00

23

TP17W5K

382.20239.50

367.20*229.50

363.20*225.50

24

TP17W5N2

357.00*295.00

341.60*274.00

337.76*270.17

25

TP17W5N5

354.00*290.00

341.00*275.00

337.00*269.00

26

17.3”

TP173W5K

397.70*232.40

384.98*217.76

380.00*213.00

27

TP173W5N1

401.00*234.00

386.00*219.00

383.00*216.00

28

18.5”

5W-1850K

424.00*243.00

410.00*231.00

406.00*227.00

29

5W-1850N

429.37*253.60

412.97*234.00

409.37*230.40

30

19”

TP19W5BZ

396.00*323.00

377.00*304.00

375.00*300.00

31

TP19W5K

426.00*276.00

414.00*260.00

410.00*256.00

32

TP19W5N1

394.00*324.00

377.00*304.00

375.00*300.00

33

TP19W5N2

395.00*324.00

380.32*306.06

376.32*301.06

34

TP19W5N3

395.00*322.00

380.20*305.00

378.20*303.00

35

20”

TP20W5BZ

430.00*322.00

413.00*311.00

407.80*305.85

36

21.5”

TP215W5K

500.00*289.60

480.00*270.40

476.40*266.00

37

22”

TP22W5

488.00*310.00

475.00*298.00

471.00*294.00

38

TP22W5N2

493.00*320.00

480.20*304.50

473.76*296.10







5W Custom 4.3 Inch to 22" 5W Resistive Touch Panel With USB Cable and Controller

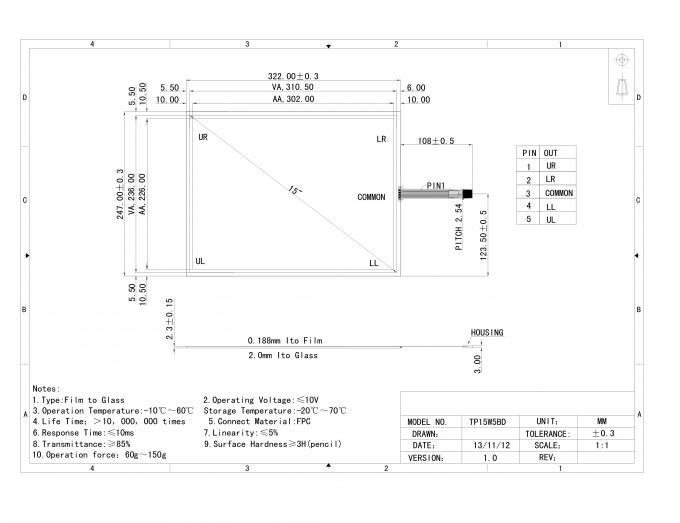

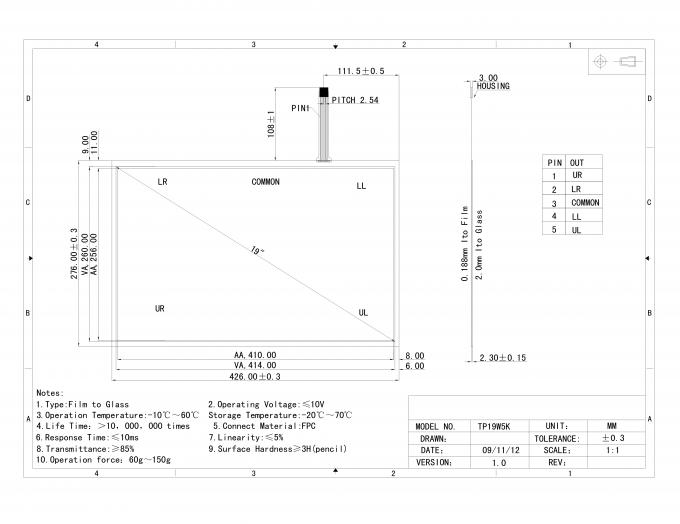

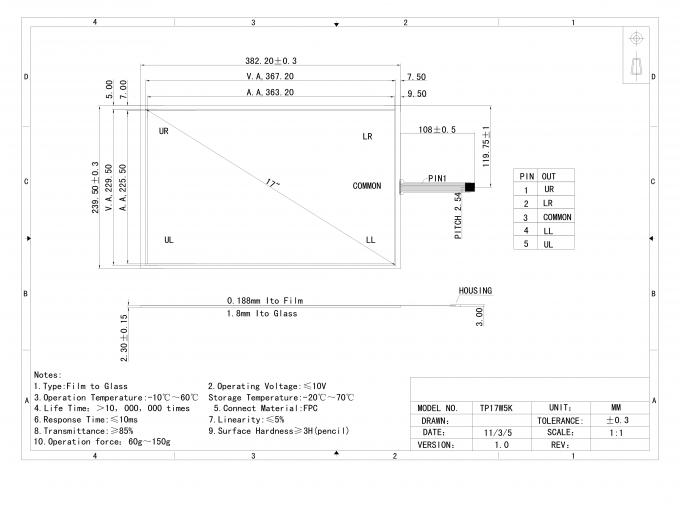

Example of engineering drawing



5W Custom 4.3 Inch to 22" 5W Resistive Touch Panel With USB Cable and Controller



5W Custom 4.3 Inch to 22" 5W Resistive Touch Panel With USB Cable and Controller



5W Custom 4.3 Inch to 22" 5W Resistive Touch Panel With USB Cable and Controller

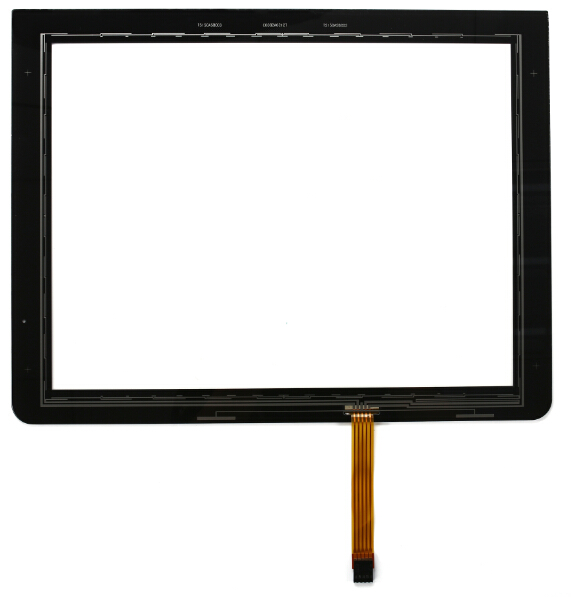

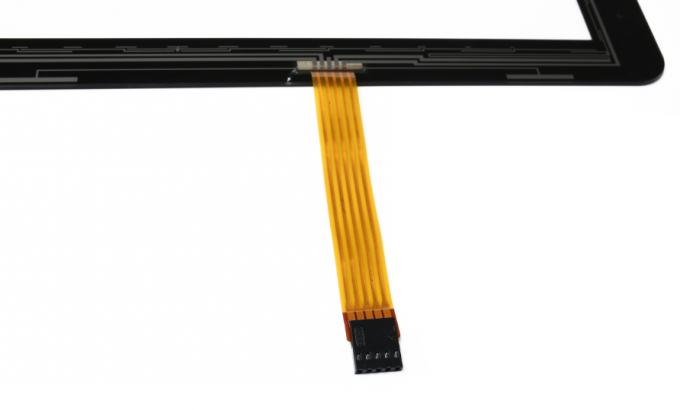

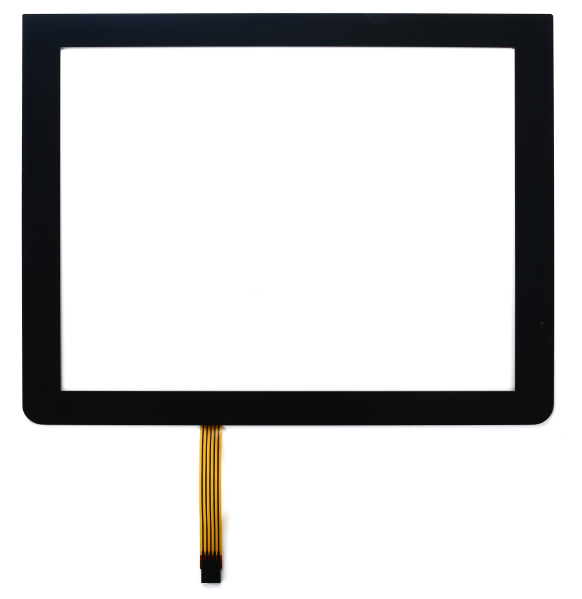

               RTP 5W new item touch panel  with black frame



            5W Custom 4.3 Inch to 22" 5W Resistive Touch Panel With USB Cable and Controller





5W Custom 4.3 Inch to 22" 5W Resistive Touch Panel With USB Cable and Controller



5W Custom 4.3 Inch to 22" 5W Resistive Touch Panel With USB Cable and Controller



5W Custom 4.3 Inch to 22" 5W Resistive Touch Panel With USB Cable and Controller



5W Custom 4.3 Inch to 22" 5W Resistive Touch Panel With USB Cable and Controller





5W Custom 4.3 Inch to 22" 5W Resistive Touch Panel With USB Cable and Controller
