Product Details:

Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: DPT-4W-xxxxxx

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 60Kpcs/month
Contact Now
Detailed Product Description

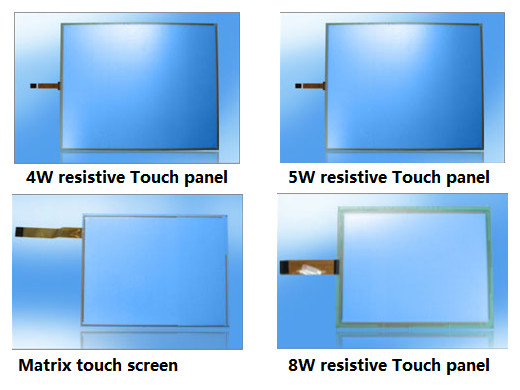

ITO Glass USB Resistive Matrix industrial Touch Panel 4w 5w 8w



Quick Detail:



1. Material: Glass + film

2. Aspect ratio: 4:3

3. Input method: Finger or touch pen

4. Thickness: ITO Glass:1.8mm,ITO Film:0.188mm

5. Surface hardness: 3H

6. Detection method: Four wire Resistive





Specification



Item

Specification

1

Item NO.

DPT-4W/5W-xxxxxx

2

Detection method

Four wire Resistive

3

Size

See engineering drawing

4

Aspect ratio

4:3

5

Input method

Finger or touch pen

6

Touch action force

20~80g

7

Position accuracy

4.5mm

8

Operating Voltage

DC≤10V

9

Operating current

5~25mA

10

Operating temperature

-10°C~60°C

11

Storage temperature

-20°C~70°C

12

Humidity

10%~90% RH at 60°C, non-condensing

13

Relative humidity

10%~90% RH at 40°C, non-condensing

14

Response time

<10ms

15

Transparency

≥80%

16

Surface hardness

3H

17

Material

Glass + film

18

Thickness

ITO Glass:1.8mm

ITO Film:0.188mm

19

Light transmission

92%~100%

20

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

21

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

22

Surface Disposal

Glare hard coating;  Anti-Newton ring

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Pen hitting life

≥10,000,000/point

26

Pen sliding Durability

≥500,000 times

27

Finger Touch life

≥35,000,000 times

28

Surface resistance

200Ω~900Ω

29

Isolation resistance

≥20MΩ    @ DC 25V

30

Linearity

≤1.5%

31

X.Y resistance

X:180Ω~480Ω  Y:500Ω~1080Ω

32

 Warranty

1 year





No.

Size

Item NO.

OD(mm)

 VA(mm)

AA(mm)

1

Customized size 2”-10.1” with small pin and no controller

2

2.0”

DPT-4W-0200135

50.50*38.00

40.60*33.80

39.60*32.68

3

2.5”

DPT-4W-0250106

63.00*29.00

59.80*23.80

25.00*22.30

4

2.8”

DPT-4W-0280131

68.80*48.80

59.00*44.80

58.00*43.80

5

DPT-4W-0280194

66.72*45.00

60.00*35.48

57.00*33.48

6

3.0”

DPT-4W-0300115

72.00*39.00

67.30*34.00

62.30*31.80

7

DPT-4W-0300130

66.00*64.00

53.90*58.50

52.90*50.50

8

DPT-4W-0300199A

76.69*55.00

67.79*51.60

66.79*50.60

9

DPT-4W-0300199B

76.69*55.00

67.79*51.60

66.79*50.60

10

3.2”

DPT-4W-0320128

77.50*49.80

71.90*40.10

71.50*39.70

11

DPT-4W-0320174

72.00*50.00

67.30*44.00

62.30*41.80

12

3.3”

DPT-4W-0330038

82.00*24.00

78.00*18.50

/

13

DPT-4W-0330061

75.60*59.50

68.60*52.50

/

14

3.5”

DPT-4W-0350018

76.00*68.60

64.00*61.60

/

15

DPT-4W-0350122

85.00*64.00

76.2*58.40

75.80*58.00

16

DPT-4W-0350129

77.20*55.10

71.00*50.70

69.00*49.20

17

3.6”

DPT-4W-0360200A

80.00*65.00

77.00*55.90

76.00*54.90

18

DPT-4W-0360200B

80.00*65.00

77.00*55.90

76.00*54.90

19

4.2”

DPT-4W-0420035

101.00*61.00

94.00*52.00

/

20

4.3”

DPT-4W-0430008

104.70*64.90

99.00*57.60

96.40*55.00

21

DPT-4W-0430044

102.00*62.50

97.40*56.30

95.64*54.46

22

DPT-4W-0430097

104.50*65.90

96.74*57.05

95.74*54.50

23

5.0”

DPT-4W-0500028

119.10*73.20

115.10*67.00

110.80*67.00

24

DPT-4W-0500034

117.50*70.00

112.50*65.00

112.00*65.00

25

DPT-4W-0500122

120.00*73.50

115.10*67.50

110.80*66.22

26

DPT-4W-0500192

120.70*76.30

111.20*68.20

108.30*65.10

27

5.2”

DPT-4W-0520011

131.00*78.00

114.00*64.00

108.00*58.00

28

5.6”

DPT-4W-0560041

126.50*100.00

113.80*85.90

112.80*84.90

29

5.7”

DPT-4W-0570012

132.50*104.70

122.00*93.85

115.17*86.37

30

DPT-4W-0570055

133.00*103.00

123.00*93.00

115.17*86.36

31

DPT-4W-0570081

130.00*97.00

120.00*91.00

116.04*87.00

32

DPT-4W-0570108

129.50*101.50

117.30*87.90

112.50*83.80

33

6.1”

DPT-4W-0610147

149.00*82.90

138.20*74.00

135.00*70.80

34

6.2”

DPT-4W-0620002

154.80*87.80

140.70*80.00

137.52*77.22

35

DPT-4W-0620002B

155.20*88.20

140.70*80.00

135.05*75.40

36

DPT-4W-0620045

155.20*88.20

138.82*78.53

135.82*75.53

37

DPT-4W-0620064

154.80*87.80

143.50*80.62

135.80*75.50

38

DPT-4W-0620074

154.30*87.20

140.80*80.00

135.80*75.00

39

DPT-4W-0620104

155.00*88.00

142.40*80.43

135.40*75.30

40

DPT-4W-0620120

152.75*87.55

142.35*79.95

134.65*72.40

41

6.5”

DPT-4W-0650001

155.00*88.00

139.70*78.80

136.40*75.60

42

DPT-4W-0650168

154.80*89.10

146.40*80.55

142.38*76.30

43

6.7”

DPT-4W-0670123

154.00*105.00

144.20*92.00

142.20*90.00

44

6.95”

DPT-4W-0695140

166.50*92.50

159.24*84.87

154.40*80.56

45

DPT-4W-0695142

166.95*92.90

159.35*84.80

157.15*79.70

46

DPT-4W-0695148

166.70*92.50

158.60*84.25

154.50*80.50

47

7.0”

DPT-4W-0700007

165.00*100.00

157.00*90.00

152.00*85.00

48

DPT-4W-0700021

164.60*103.60

155.70*94.70

152.40*91.44

49

DPT-4W-0700026

166.77*92.50

158.60*84.25

154.50*80.50

50

DPT-4W-0700030

164.50*99.50

155.30*87.22

150.40*83.50

51

DPT-4W-0700046

164.90*99.90

157.00*87.90

152.60*83.53

52

DPT-4W-0700047

164.80*99.80

156.30*89.30

154.30*86.80

53

DPT-4W-0700056

164.90*100.00

155.50*88.50

153.50*86.00

54

DPT-4W-0700060

164.90*100.00

155.60*88.64

152.60*83.94

55

DPT-4W-0700065B

164.80*100.00

155.60*88.64

152.60*85.64

56

DPT-4W-0700069

161.20*97.00

156.20*88.80

155.60*88.20

57

DPT-4W-0700072

164.50*99.70

157.30*89.70

153.08*83.92

58

DPT-4W-0700073

164.90*99.90

157.50*89.90

149.60*83.49

59

DPT-4W-0700076

164.50*99.60

155.50*88.50

153.50*86.00

60

DPT-4W-0700079

164.80*99.90

155.90*90.40

152.70*85.70

61

DPT-4W-0700087

164.80*100.00

156.80*91.30

149.74*82.30

62

DPT-4W-0700092

164.70*99.80

154.60*87.64

151.60*84.64

63

DPT-4W-0700110

162.60*97.60

156.00*89.52

152.50*84.85

64

DPT-4W-0700117

164.40*99.90

154.20*91.25

151.94*84.70

65

DPT-4W-0700119

164.30*98.70

156.68*88.52

155.68*87.52

66

DPT-4W-0700126

163.60*98.90

156.40*89.30

151.35*84.20

67

DPT-4W-0700153

163.65*100.46

156.60*93.00

154.60*91.00

68

DPT-4W-0700157

164.90*99.00

157.25*90.10

155.25*88.10

69

DPT-4W-0700162

165.30*93.00

149.10*76.80

145.10*72.80

70

DPT-4W-0700169

164.90*100.00

156.70*89.10

152.38*84.70

71

7.1”

DPT-4W-0710116

167.39*104.10

157.20*94.80

155.00*92.00

72

8.0”

DPT-4W-0800004

192.20*116.00

183.00*105.70

175.80*99.30

73

DPT-4W-0800071

192.30*116.40

180.10*103.40

174.00*96.50

74

DPT-4W-0800082

192.56*116.80

182.60*106.00

173.60*96.50

75

DPT-4W-0800109

182.70*140.50

160.40*125.40

161.88*121.80

76

8.1”

DPT-4W-0810005

192.40*115.86

180.10*103.78

175.64*98.36

77

8.4”

DPT-4W-0810138

191.17*141.50

171.40*131.80

172.40*129.80

78

9.0”

DPT-4W-0900075

210.70*126.10

201.00*114.70

197.00*110.70

79

DPT-4W-0900185

210.50*124.30

200.40*114.48

198.60*112.68

80

DPT-TP-090W4H1

233.00*120.60

225.00*101.50

221.00*97.50













No.

Size

Item NO.

OD(mm)

VA(mm)

AA(mm)

1

9.7”-22”

Customized size

With USB controller

2

9.7”

TP097W4H1

210.00*164.00

200.91*152.26

196.61*147.46

3

TP097W4L1

234.70*115.60

223.30*103.10

220.30*100.10

4

10”

TP100W4LN

224.50*169.50

211.00*160.50

206.00*155.50

5

10.1”

TP101W4L1

234.40*142.30

228.60*131.80

225.60*128.30

6

TP101W4N2

234.00*142.00

226.50*129.00

224.50*127.00

7

10.2”

TP102W4K

233.00*143.80

223.40*132.20

221.40*130.20

8

TP102W4L1

235.00*145.90

224.90*136.11

222.00*133.20

9

TP102W4N1

235.00*145.00

228.00*135.90

224.00*132.50

10

TP102W4N2

228.50*148.50

220.50*139.20

217.00*136.20

11

TP102W4N3

228.50*148.50

220.50*139.20

217.00*136.20

12

TP102W4N5

234.50*135.00

227.50*130.00

226.10*128.60

13

10.4”

TP104W4BZ

234.00*178.00

216.00*163.40

212.00*159.40

14

TP104W4H1

224.50*172.00

214.20*161.60

212.20*172.00

15

TP104W4H3

229.00*171.50

220.00*165.00

212.00*157.00

16

TP104W4L1

225.40*175.90

215.00*162.20

211.20*158.40

17

TP104W4L2

221.00*171.10

209.00*158.50

203.00*152.50

18

TP104W4N1

228.50*175.50

218.00*167.50

216.00*165.50

19

TP104W4N2

225.55*172.95

215.00*162.20

211.20*158.80

20

TP104W4N3

235.00*143.00

225.70*128.20

222.70*125.20

21

TP104W4N5

225.55*172.95

215.00*165.21

209.70*158.80

22

TP104W4N6

228.00*175.00

214.40*161.50

213.20*160.30

23

TP104W4N7

224.00*168.50

209.00*158.50

203.00*152.50

24

TP104W4N8

228.00*175.00

213.20*160.40

211.20*158.40

25

TP104W4N9

225.55*172.95

215.00*162.20

214.00*161.00

26

TP104W4N10

225.30*172.80

215.50*162.00

211.50*158.00

27

TP104W4N11

225.00*173.50

215.80*162.70

213.00*159.90

28

10.5”

TP105W4N1

227.60*174.40

213.10*174.40

210.10*157.10

29

10.6”

TP106W4N1

259.60*117.30

250.00*103.50

248.00*101.50

30

11.4”

TP114W4H1

244.50*186.50

236.00*177.50

173.50*231.00

31

12.1”

TP121W4BZ

266.00*203.20

253.50*191.50

248.00*186.00

32

TP121W4H2

271.00*206.00

254.00*192.00

248.00*186.00

33

TP121W4K

275.82*178.03

264.12*166.20

261.12*163.20

34

TP121W4N2

260.00*200.00

252.00*190.00

248.00*186.00

35

TP121W4N3

260.80*203.20

248.00*187.20

245.00*184.20

36

TP121W4N4

279.00*166.84

271.01*153.68

268.01*150.68

37

TP121W4N6

261.00*198.60

250.80*190.60

249.80*188.20

38

TP121W4N7

260.00*200.00

247.80*186.00

243.20*182.30

39

12.2”

TP122W4N1

275.50*178.00

264.00*167.50

262.00*164.50

40

13”

TP130W4N1

299.00*173.30

280.40*152.70

280.40*152.70

41

13.3”

TP133W4K

310.40*181.60

297.40*168.60

294.40*165.60

42

TP133W4L1

292.00*216.00

274.30*206.00

272.30*204.00

43

TP133W4N1

285.00*217.00

275.00*207.00

270.00*202.00

44

TP133W4N3

305.00*183.50

297.00*172.00

291.00*164.00

45

TP133W4N4

296.40*191.40

288.00*181.00

286.00*179.00

46

14.1”

TP141W4BZ

298.00*227.00

289.00*218.00

285.00*214.00

47

TP141W4K

319.50*203.20

307.00*193.10

303.74*189.84

48

TP141W4N3F

323.50*191.99

313.40*177.95

309.40*173.95

49

TP141W4N4

319.10*203.10

307.00*193.20

303.36*189.60

50

TP141W4N5

323.50*191.99

313.40*177.95

309.40*173.95

51

15”

TP150W4BD

322.00*247.00

310.50*236.00

302.00*226.00

52

TP150W4BZ

322.00*247.00

310.50*236.00

304.00*228.00

53

TP150W4K

346.20*217.00

331.20*207.00

327.20*203.00

54

TP150W4N1

320.30*243.40

309.00*233.00

306.00*230.00

55

TP150W4N2

324.50*248.70

308.10*232.10

306.10*230.10

56

TP150W4N3

322.00*247.00

308.10*232.10

306.10*230.10

57

TP150W4N4

322.00*247.00

310.50*236.00

304.00*228.00

58

15.4”

TP154W4K

344.00*222.00

335.00*210.70

331.20*207.00

59

TP154W4KN

344.00*222.00

335.00*210.70

331.20*207.00

60

15.6”

TP156W4K

363.80*215.90

347.30*196.60

344.30*193.60

61

TP156W4N2

359.00*209.20

344.00*194.00

341.008191.00

62

TP156W4N3

359.00*209.20

348.30*197.60

344.30*193.60

63

TP156W4N4

359.30*209.50

345.56*194.99

344.16*193.59

64

17”

TP170W4BZ

355.00*288.00

341.50*275.00

337.00*269.00

65

TP170W4K

382.20*239.50

367.20*229.50

363.20*225.50

66

TP170W4KN

381.50*243.00

371.00*232.50

367.60*229.10

67

17.3”

TP173W4K

397.50*232.00

385.50*218.00

383.50*216.00

68

TP173W4L1

397.70*232.40

384.98*217.77

382.98*215.77

69

TP173W4L2

396.00*230.00

387.00*219.00

382.00*214.00

70

TP173W4N2

397.80*232.50

386.10*219.00

381.60*214.50

71

18.4”

TP184W4K

421.20*244.90

412.00*232.50

409.00*229.50

72

18.5”

TP185W4K

424.00*243.00

410.00*231.00

406.00*227.00

73

TP185W4KN

429.37*253.60

413.39*234.00

409.79*230.40

74

TP185W4N2

429.37*253.60

413.39*234.00

409.79*230.40

75

19”

TP190W4BZ

396.00*323.00

377.00*304.00

375.00*300.00

76

TP190W4K

426.40*266.50

410.40*256.50

406.40*252.50

77

TP190W4KL

426.00*276.00

414.00*260.00

410.00*256.00

78

TP190W4KN

426.00*276.00

414.00*260.00

410.00*256.00

79

TP190W4N2

426.00*276.00

410.24*259.15

407.40*254.00

80

19.5”

TP195W4N1

452.00*263.00

435.00*243.06

430.00*238.00

81

20”

TP200W4BZ

430.00*322.00

413.00*311.00

408.00*306.00

82

21.5”

TP215W4K

490.00*285.00

480.00*270.00

476.00*266.00

83

TP215W4L1

495.00*292.00

479.00*271.30

476.00*268.00

84

22”

TP220W4

488.00*310.00

475.20*297.00

472.20*294.00

85

TP220W4H1

491.00*318.00

477.00*300.00

475.00*297.60

86

TP220W4N1

487.70*315.00

477.70*300.10

473.76*296.10

87

22”-52”

4W Film/Film

Customized FF-RTP











No.

Size

5W  Item NO.

OD(mm)

VA(mm)

AA(mm)

1

4”-22”

Customized size







2

10.4”

TP104W5BZ

234.00*178.00

216.00*163.40

212.00*159.40

3

12.1”

TP121W5BZ

266.00*203.20

253.50*191.50

248.00*186.00

4

TP121W5H1

263.00*200.00

250.30*191.00

245.30*186.00

5

TP121W5K

275.80*178.00

264.10*166.20

261.10*163.20

6

TP121W5N1

279.00*215.60

253.80*192.10

245.80*184.10

7

TP121W5N2

271.00*206.00

252.00*190.00

248.00*186.00

8

14”

TP14W5K

319.40*198.60

306.80*186.80

305.80*185.80

9

14.1”

TP141W5BZ

304.00*231.00

289.00*218.00

285.00*214.00

10

15”

TP15W5BD

322.00*247.00

310.50*236.00

302.00*226.00

11

TP15W5BZ

322.00*247.00

310.50*236.00

304.00*228.00

12

TP15W5H1

321.20*246.00

306.96*232.16

304.04*228.09

13

TP15W5K

 346.20*217.00

331.20*217.00

327.20*203.00

14

TP15W5N1

317.00*241.00

305.00*229.40

304.00*228.00

15

TP15W5N2

325.00*252.50

311.70*235.70

304.00*228.00

16

TP15W5N3

328.00*255.00

310.50*236.00

302.00*226.00

17

15.4”

TP154W5K

346.90*223.00

335.00*210.70

331.20*207.00

18

15.6”

TP156W5K

359.00*212.00

347.30*196.60

344.30*193.60

19

TP156W5N1

359.00*209.00

345.00*195.00

342.00*192.00

20

TP156W5N2

359.00*209.20

344.00*194.00

341.00*191.00

21

15.7”

 TP157W5K

 364.00*215.00

351.00*200.00

348.00*197.00

22

17”

TP17W5BZ

355.00*288.00

341.50*275.00

337.00*269.00

23

TP17W5K

382.20239.50

367.20*229.50

363.20*225.50

24

TP17W5N2

357.00*295.00

341.60*274.00

337.76*270.17

25

TP17W5N5

354.00*290.00

341.00*275.00

337.00*269.00

26

17.3”

TP173W5K

397.70*232.40

384.98*217.76

380.00*213.00

27

TP173W5N1

401.00*234.00

386.00*219.00

383.00*216.00

28

18.5”

5W-1850K

424.00*243.00

410.00*231.00

406.00*227.00

29

5W-1850N

429.37*253.60

412.97*234.00

409.37*230.40

30

19”

TP19W5BZ

396.00*323.00

377.00*304.00

375.00*300.00

31

TP19W5K

426.00*276.00

414.00*260.00

410.00*256.00

32

TP19W5N1

394.00*324.00

377.00*304.00

375.00*300.00

33

TP19W5N2

395.00*324.00

380.32*306.06

376.32*301.06

34

TP19W5N3

395.00*322.00

380.20*305.00

378.20*303.00

35

20”

TP20W5BZ

430.00*322.00

413.00*311.00

407.80*305.85

36

21.5”

TP215W5K

500.00*289.60

480.00*270.40

476.40*266.00

37

22”

TP22W5

488.00*310.00

475.00*298.00

471.00*294.00

38

TP22W5N2

493.00*320.00

480.20*304.50

473.76*296.10

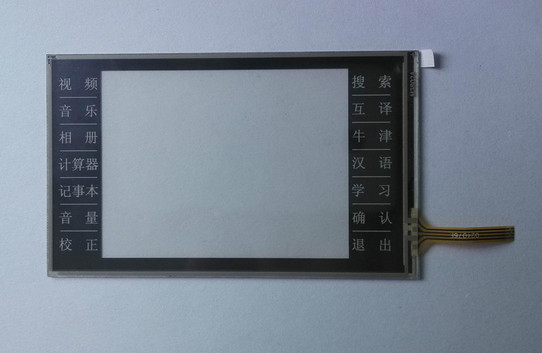

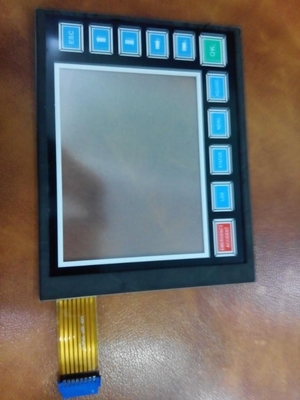

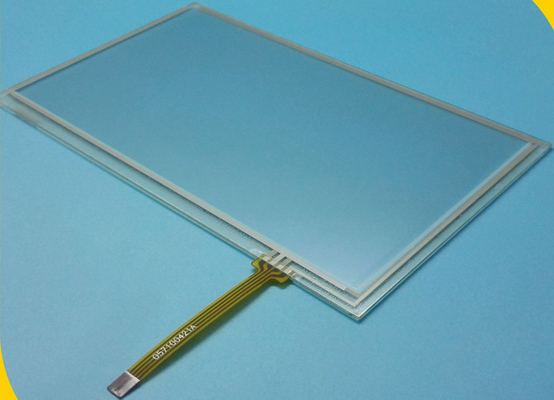

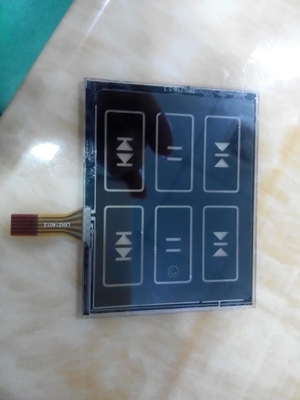

ITO film Glass USB Resistive Matrix industrial Touch screen Panel 4w 5w 8w





ITO film Glass USB Resistive Matrix industrial Touch screen Panel 4w 5w 8w





ITO film Glass USB Resistive Matrix industrial Touch screen Panel 4w 5w 8w









ITO film Glass USB Resistive Matrix industrial Touch screen Panel 4w 5w 8w





ITO film Glass USB Resistive Matrix industrial Touch screen Panel 4w 5w 8w

Contact Details
DOPO TECH GROUP LIMITED

Contact Person: dopo

Send your inquiry directly to us (0 / 3000)
