Custom Projected Capacitive Industrial Touch Screen Panel PCT CTP P - Cap

Certification
Good quality Custom Capacitive Touch Screen for sales
I'm Online Chat Now

Custom Projected Capacitive Industrial Touch Screen Panel PCT CTP P - Cap

China Custom Projected Capacitive Industrial Touch Screen Panel PCT CTP P - Cap supplier
Custom Projected Capacitive Industrial Touch Screen Panel PCT CTP P - Cap supplier Custom Projected Capacitive Industrial Touch Screen Panel PCT CTP P - Cap supplier Custom Projected Capacitive Industrial Touch Screen Panel PCT CTP P - Cap supplier

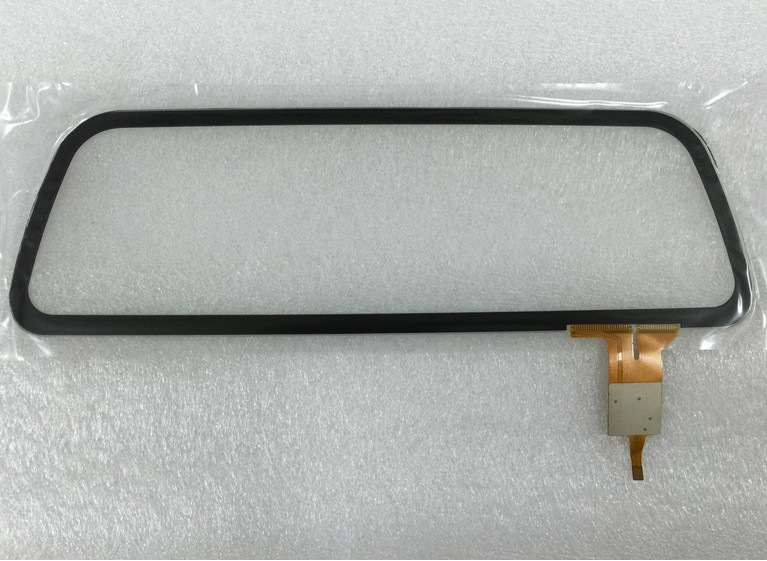

Large Image :  Custom Projected Capacitive Industrial Touch Screen Panel PCT CTP P - Cap

Product Details:

Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: DPT-PCT-Sxx

Payment & Shipping Terms:

Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 60Kpcs/month
Contact Now
Detailed Product Description



Custom Projected Capacitive Industrial Touch Panel PCT CTP P - Cap





Item

Specification

Standard projected capacitive touch panel with controller (interface:USB)

1

Item NO.

DPT-PCT-

2

Detection method

Projected Capacitive

3

Size



4

working area

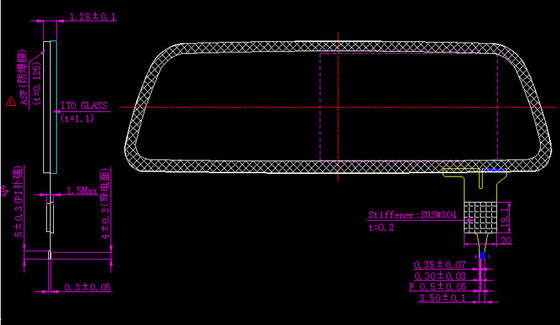

see drawing

5

Outline dimension



6

Resolution

2048*2048

7

Input method

Finger

8

Touch action force

30~60g

9

Operating Voltage

3.3V adjustable

10

Operating current

2.5~10mA Depends on IC

11

Operating temperature

-20°C~60°C

12

Storage temperature

-20°C~60°C ,<90%RH;40°C~70°C,<60%RH

13

Humidity

10%~90%RH at 40°C, non-condensing

14

Relative humidity

10%~90%RH at 40°C, non-condensing

15

Response time

<35ms

16

Transparency

≥82% depends on the quantity of layers

17

Surface hardness

≥7H

18

Material structure

GFF

19

Thickness

1.35mm

20

Light transmission

92%~100%

21

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

22

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Finger Touch life

≥35,000,000 times

26

Warranty

1 year
