Detailed Product Description

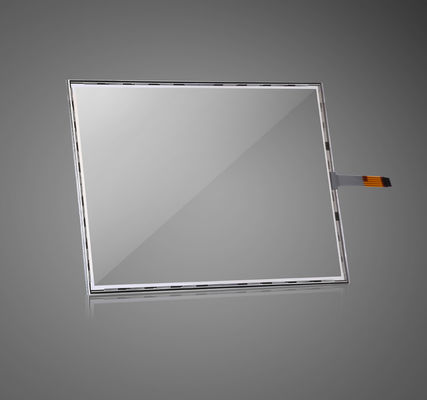

5W RTP 4" - 23.6" 5 Wire Resistive Touch Panel With USB Cable And Controller



5W / 8W RTP 4" - 23.6" 5 Wire Resistive Touch Panel With USB Controller





5W resistive overview



5-Wire Resistive touch screen, features unrivaled accuracy, reliability, superior light transmission, highest touch point density, sensitive and drift-free. Imperious to environmental conditions such as liquid splashes and washdown, these screens are the most contamination-resistant available. It can be touched by finger, gloved finger, leather or stylus pen. The life time is up to 35 million finger touches, much better than 4 wire resistive touch screen, delivering fantastic performance in retail, industry, transportation, financial, hospital, Kiosk or telecom field.



Benefits

■ Long lifetime (almost ten times of 5 Wire Resistive Touch Screen)
■ Finger, gloved hand and stylus activation
■ Contaminant proof and liquid resistance
■ High accuracy and durability
■ High resolution and sensitivity



Application
■ Point-of-Sale uses: convenience store, movie theater, lottery terminal, fast food, etc

■ Industrial uses: Automated testing, automation equipment, man-machine interface, etc
■ Medical uses: medical instrument, research equipment and patient monitoring system
■ Transportation uses: Inner vehicle control panel



Item

Specification

1

Item model

DPT-5W-***

2

Detection method

Resistive

3

Size

3"~22"

4

Aspect ratio

16:10

5

Input method

Finger or touch pen

6

Touch action force

20~80g

7

Position accuracy

4.5~5mm

8

Operating Voltage

DC≤10V

9

Operating current

5~25mA

10

Operating temperature

-10°C~60°C

11

Storage temperature

-20°C~70°C

12

Humidity

10%~90%RH at 60°C, non-condensing

13

Relative humidity

10%~90%RH at 40°C, non-condensing

14

Response time

<10ms

15

Transparency

≥78%

16

Surface hardness

3H

17

Material

Glass + Film

18

Thickness

ITO Glass:1.1~1.8mm

ITO Film:0.188mm

19

Light transmission

92%~100%

20

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

21

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

22

Surface Disposal

Glare hard coating;Anti-Newton ring

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Pen hitting life

≥10,000,000/point

26

Pen sliding Durability

≥500,000 times

27

Finger Touch life

≥35,000,000 times

28

Surface resistance

30Ω~350Ω

29

Isolation resistance

≥20MΩ @ DC 25V

30

Linearity

≤7%

31

X.Y resistance

30Ω~350Ω according to the size

32

Warranty

1 year









No.

Size

Item NO.

OD(mm)

VA(mm)

AA(mm)

1

4”-22”

5W Customized size







2

10.4”

TP104W5BZ

234.00*178.00

216.00*163.40

212.00*159.40

3

12.1”

TP121W5BZ

266.00*203.20

253.50*191.50

248.00*186.00

4

TP121W5H1

263.00*200.00

250.30*191.00

245.30*186.00

5

TP121W5K

275.80*178.00

264.10*166.20

261.10*163.20

6

TP121W5N1

279.00*215.60

253.80*192.10

245.80*184.10

7

TP121W5N2

271.00*206.00

252.00*190.00

248.00*186.00

8

14”

TP14W5K

319.40*198.60

306.80*186.80

305.80*185.80

9

14.1”

TP141W5BZ

304.00*231.00

289.00*218.00

285.00*214.00

10

15”

TP15W5BD

322.00*247.00

310.50*236.00

302.00*226.00

11

TP15W5BZ

322.00*247.00

310.50*236.00

304.00*228.00

12

TP15W5H1

321.20*246.00

306.96*232.16

304.04*228.09

13

TP15W5K

 346.20*217.00

331.20*217.00

327.20*203.00

14

TP15W5N1

317.00*241.00

305.00*229.40

304.00*228.00

15

TP15W5N2

325.00*252.50

311.70*235.70

304.00*228.00

16

TP15W5N3

328.00*255.00

310.50*236.00

302.00*226.00

17

15.4”

TP154W5K

346.90*223.00

335.00*210.70

331.20*207.00

18

15.6”

TP156W5K

359.00*212.00

347.30*196.60

344.30*193.60

19

TP156W5N1

359.00*209.00

345.00*195.00

342.00*192.00

20

TP156W5N2

359.00*209.20

344.00*194.00

341.00*191.00

21

15.7”

 TP157W5K

 364.00*215.00

351.00*200.00

348.00*197.00

22

17”

TP17W5BZ

355.00*288.00

341.50*275.00

337.00*269.00

23

TP17W5K

382.20239.50

367.20*229.50

363.20*225.50

24

TP17W5N2

357.00*295.00

341.60*274.00

337.76*270.17

25

TP17W5N5

354.00*290.00

341.00*275.00

337.00*269.00

26

17.3”

TP173W5K

397.70*232.40

384.98*217.76

380.00*213.00

27

TP173W5N1

401.00*234.00

386.00*219.00

383.00*216.00

28

18.5"

5W-1850K

424.00*243.00

410.00*231.00

406.00*227.00

29

18.5"

5W-1850N

429.37*253.60

412.97*234.00

409.37*230.40

30

19”

TP19W5BZ

396.00*323.00

377.00*304.00

375.00*300.00

31

TP19W5K

426.00*276.00

414.00*260.00

410.00*256.00

32

TP19W5N1

394.00*324.00

377.00*304.00

375.00*300.00

33

TP19W5N2

395.00*324.00

380.32*306.06

376.32*301.06

34

TP19W5N3

395.00*322.00

380.20*305.00

378.20*303.00

35

20”

TP20W5BZ

430.00*322.00

413.00*311.00

407.80*305.85

36

21.5”

TP215W5K

500.00*289.60

480.00*270.40

476.40*266.00

37

22”

TP22W5

488.00*310.00

475.00*298.00

471.00*294.00

38

TP22W5N2

493.00*320.00

480.20*304.50

473.76*296.10





Example of engineering drawings



5W / 8W RTP 4" - 23.6" 5 Wire Resistive Touch Panel With USB Controller



5W / 8W RTP 4" - 23.6" 5 Wire Resistive Touch Panel With USB Controller







5W / 8W RTP 4" - 23.6" 5 Wire Resistive Touch Panel With USB Controller







Please email us and we will send you its engineering drawing
