Product Details:

Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: DP-GG10103005USB

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 60Kpcs/month
Detailed Product Description

G+G  10.1 Inch Projected Capacitive Touchscreen Panel with I2C interface , Lcd Touch Screen Panel



This item is designed for POS machine, and has been sold to Japan market more than 3 year.







DOPO  catalogue V2019.pdf           GG10103005JY-USB 20170304.pdf

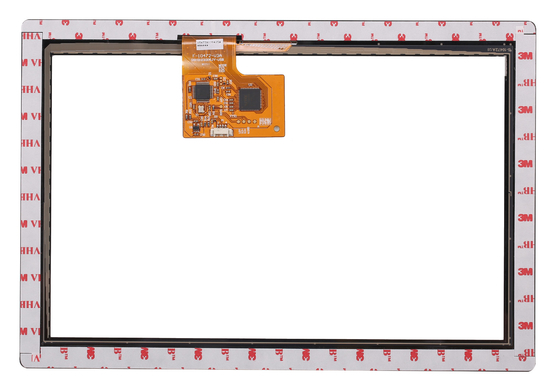

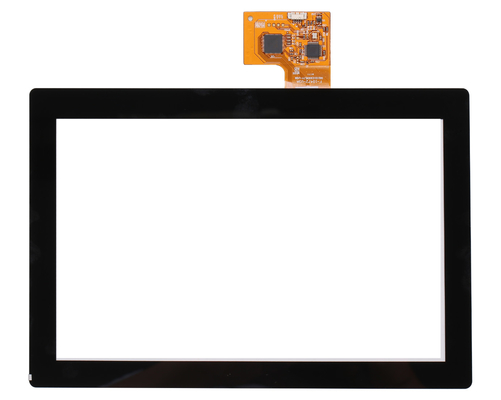

POS G+G 10.1 Inch Projected Capacitive Touch Panel With USB interface , Lcd Touch Screen Panel 0



POS G+G 10.1 Inch Projected Capacitive Touch Panel With USB interface , Lcd Touch Screen Panel 1





POS G+G 10.1 Inch Projected Capacitive Touch Panel With USB interface , Lcd Touch Screen Panel 2





POS G+G 10.1 Inch Projected Capacitive Touch Panel With USB interface , Lcd Touch Screen Panel 3











Examples of customized case



Item

Specification (Some index value will be adjusted according to customizated requirements)

1

Item NO.

DP-GG10103005USB

2

Detection method

Projected Capacitive

3

Size

10.1"

4

Outline dimension(mm)

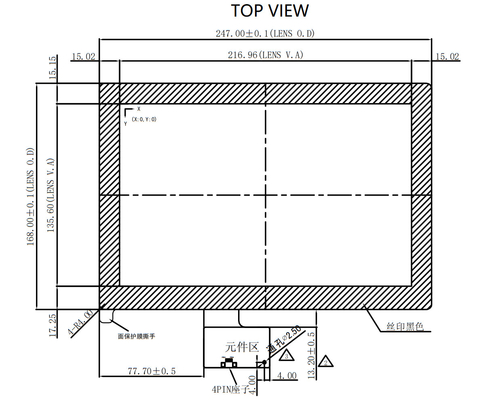

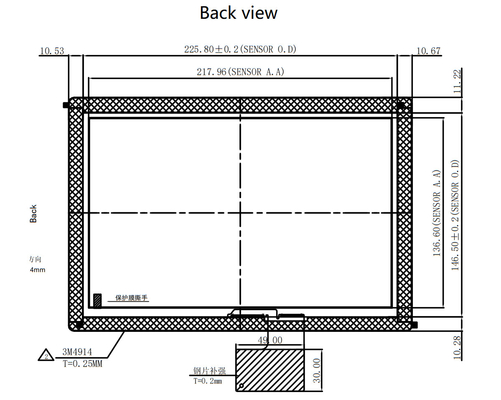

See drawing

5

View area(mm)



6

Active area(mm)



7

Aspect ratio

16:9 or 4:3

8

Resolution

1024*1024

9

Input method

Finger

10

Touch action force

30~60g

11

Operating Voltage

3.3V adjustable

12

Operating current

2.5~10mA Depends on IC

13

Operating temperature

-10°C~60°C

14

Storage temperature

-15°C~40°C ,<90%RH;-20°C~70°C,<60%RH

15

Humidity

10%~90%RH at 40°C, non-condensing

16

Relative humidity

10%~90%RH at 40°C, non-condensing

17

Response time

<10ms

18

Transparency

≥82% depends on the quantity of layers

19

Surface hardness

≥6H

20

Material structure

Glass+ Glass

21

Thickness

1.6mm adjustable Glass(1.1mm) +Top ITO Film(0.125mm) +Bottom ITO Film(0.125mm)

22

Light transmission

92%~100%

23

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

24

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

25

Certificates

CE, FCC, RoHS

26

Working environment

Under sunlight,indoor and outdoor

27

Finger Touch life

≥35,000,000 times

28

Warranty

1 year

















POS G+G 10.1 Inch Projected Capacitive Touch Panel With USB interface , Lcd Touch Screen Panel 4
