Standard Smart Home Touch Panel , Tempered Glass Touch Screen For Financial Transactions

Standard Smart Home Touch Panel , Tempered Glass Touch Screen For Financial Transactions

Standard Smart Home Touch Panel , Tempered Glass Touch Screen For Financial Transactions
Standard Smart Home Touch Panel , Tempered Glass Touch Screen For Financial Transactions Standard Smart Home Touch Panel , Tempered Glass Touch Screen For Financial Transactions

Large Image :  Standard Smart Home Touch Panel , Tempered Glass Touch Screen For Financial Transactions

Product Details:
Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: DPT-SAW-xx
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 20Kpcs/month
Detailed Product Description
Highlight:

home automation touch screen

,

smart home touch screen

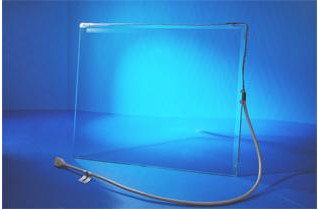

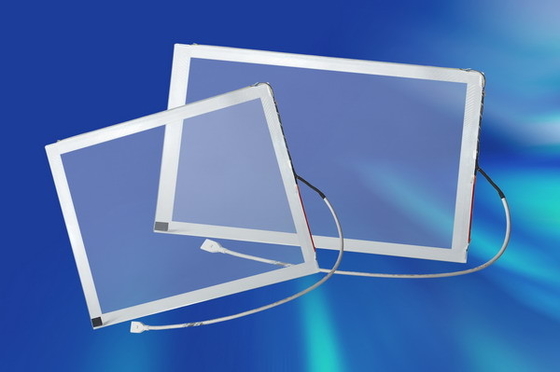

Standard Saw Touch Panel , Tempered Glass Touch Screen For Financial Transactions

Standard SAW touch screen, adopts 3mm or 4mm optical glass with fantastic clarity. Transducers sink into glass beveled edge which can prevent transducers from crush dangerous and facilities assembly. It features unrivaled accuracy, reliability, sensitive and drift-free performance, can be touched by fingerer, glove, leather or stylus pen. With controller, it enable you to use both USB and RS232 interface, which enhance convenience and flexibility.



Advantage
■ Superior image clarity with high light transmission
■ Sensitive and fast response
■ Durability, deep scratch resistance and abrasion
■ Highest resolution
■ Activated by finger, gloved hand, leather or soft stylus
■ More than 50 million touches in a single point
■ Dirt and splash sealed capability



Application
■ Self-service kiosks
■ Vending and ticket sales
■ Electronic catalogs
■ Gaming, lottery, and amusement
■ Public pay phones
■ Multimedia marketing
■ Banking/financial transactions
■ Industrial control rooms
■ Computer-based training





Standard Smart Home Touch Panel , Tempered Glass Touch Screen For Financial Transactions 0

Item

Specification

1

Item model

DPT-SAW-***

2

Detection method

Surface Acoustic Wave

3

Size

10” to 47”

4

Aspect ratio

4:3/16:9

5

Resolution

4096*4096 ,Z-axis 256, not related with the sizes of the touch screen panel

6

Input method

Finger,gloved finger and touch pen

7

Touch action force

30~60g

8

Position accuracy

2mm

9

Operating Voltage

DC ≤10V

10

Operating current

5~25mA

11

Operating temperature

-20°C ~ 60°C

12

Storage temperature

-40°C ~ 70°C

13

Humidity

10%~90% RH at 60°C, non-condensing

14

Relative humidity

10%~90% RH at 40°C, non-condensing

15

Response time

≤10ms

16

Transparency

≥82%

17

Surface hardness

≥5H

18

Material

Pure glass

19

Thickness

4MM~6MM

20

Light transmission

≥90%

21

Durability

Scratch-free; More than 50,000,000 touches in one location without failure.

22

Drivers available

Windows 2000, Windows XP, Windows NT, Linux,Mac

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Pen hitting life

≥10,000,000/point

26

Pen sliding Durability

≥5,000,000 times

27

Finger Touch life

≥35,000,000 times

28

Warranty

1 year

Standard Smart Home Touch Panel , Tempered Glass Touch Screen For Financial Transactions 1
