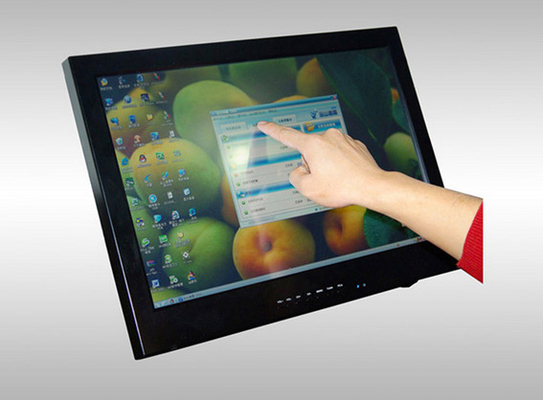

High Resolution Saw Touch Panel , Tempered Glass Touch Screen For PC

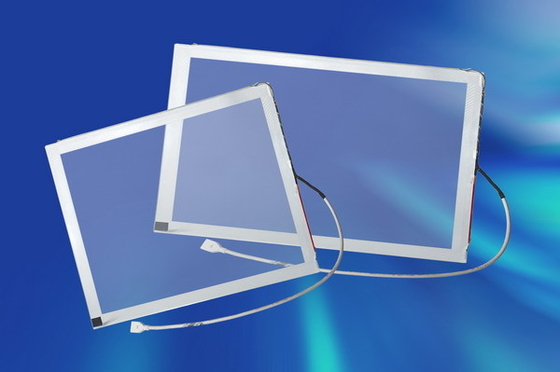

Standard SAW touch screen, adopts 3mm or 4mm optical glass with fantastic clarity. Transducers sink into glass beveled edge which can prevent transducers from crush dangerous and facilities assembly. It features unrivaled accuracy, reliability, sensitive and drift-free performance, can be touched by fingerer, glove, leather or stylus pen. With controller, it enable you to use both USB and RS232 interface, which enhance convenience and flexibility.
Advantage
■ Superior image clarity with high light transmission
■ Sensitive and fast response
■ Durability, deep scratch resistance and abrasion
■ Highest resolution
■ Activated by finger, gloved hand, leather or soft stylus
■ More than 50 million touches in a single point
■ Dirt and splash sealed capability
Application
■ Self-service kiosks
■ Vending and ticket sales
■ Electronic catalogs
■ Gaming, lottery, and amusement
■ Public pay phones
■ Multimedia marketing
■ Banking/financial transactions
■ Industrial control rooms
■ Computer-based training
№ |
Item |
Specification |
1 |
Item model |
DPT-SAW-*** |
2 |
Detection method |
Surface Acoustic Wave |
3 |
Size |
10” to 47” |
4 |
Aspect ratio |
4:3/16:9 |
5 |
Resolution |
4096*4096 ,Z-axis 256, not related with the sizes of the touch screen panel |
6 |
Input method |
Finger,gloved finger and touch pen |
7 |
Touch action force |
30~60g |
8 |
Position accuracy |
2mm |
9 |
Operating Voltage |
DC ≤10V |
10 |
Operating current |
5~25mA |
11 |
Operating temperature |
-20°C ~ 60°C |
12 |
Storage temperature |
-40°C ~ 70°C |
13 |
Humidity |
10%~90% RH at 60°C, non-condensing |
14 |
Relative humidity |
10%~90% RH at 40°C, non-condensing |
15 |
Response time |
≤10ms |
16 |
Transparency |
≥82% |
17 |
Surface hardness |
≥5H |
18 |
Material |
Pure glass |
19 |
Thickness |
4MM~6MM |
20 |
Light transmission |
≥90% |
21 |
Durability |
Scratch-free; More than 50,000,000 touches in one location without failure. |
22 |
Drivers available |
Windows 2000, Windows XP, Windows NT, Linux,Mac |
23 |
Certificates |
CE, FCC, RoHS |
24 |
Working environment |
Under sunlight,indoor and outdoor |
25 |
Pen hitting life |
≥10,000,000/point |
26 |
Pen sliding Durability |
≥5,000,000 times |
27 |
Finger Touch life |
≥35,000,000 times |
28 |
Warranty |
1 year |
