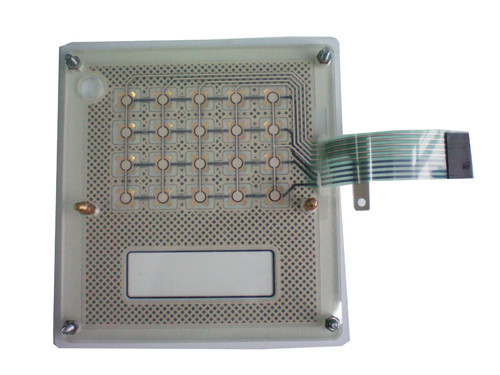

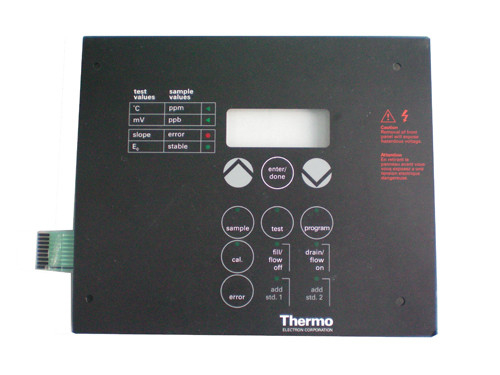

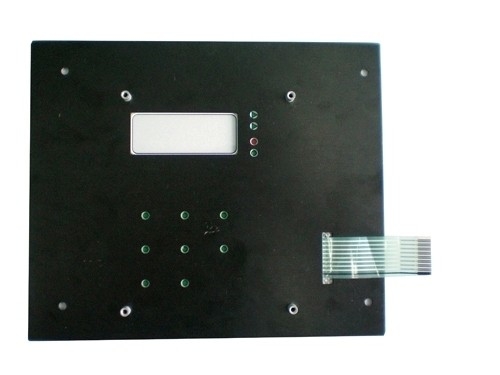

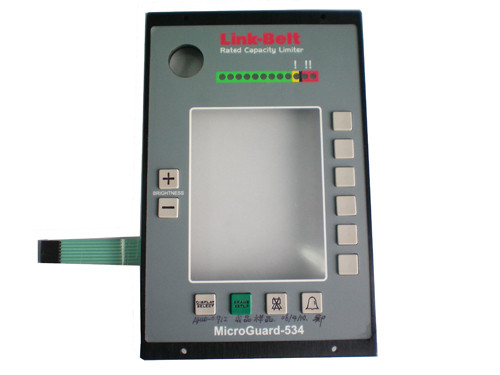

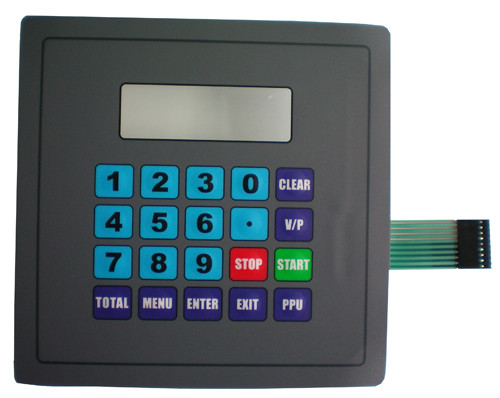

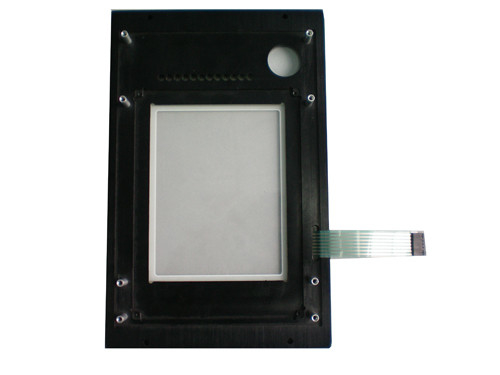

LED Membrane Switch Panel , Tactile Dome And Backlit Keypad

LED Membrane Switch Panel , Tactile Dome And Backlit Keypad

LED Membrane Switch Panel , Tactile Dome And Backlit Keypad
LED Membrane Switch Panel , Tactile Dome And Backlit Keypad LED Membrane Switch Panel , Tactile Dome And Backlit Keypad LED Membrane Switch Panel , Tactile Dome And Backlit Keypad LED Membrane Switch Panel , Tactile Dome And Backlit Keypad LED Membrane Switch Panel , Tactile Dome And Backlit Keypad LED Membrane Switch Panel , Tactile Dome And Backlit Keypad

Large Image :  LED Membrane Switch Panel , Tactile Dome And Backlit Keypad

Product Details:
Place of Origin: China
Brand Name: DOPO
Certification: CE,FCC,ROHS
Model Number: DPT-MS-03
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 20Kpcs/day
Detailed Product Description
Glue: 3M Or Common Material: Polyester Or Polycarbonate
Application: Industrial Device, Home Appliance Keypad Button Material: PVC, PC,PET, Sandwich,circuit
Classification: Tactile & Non-Tactile Operating Voltage: 35V DC
Operating Current: 100mA 1W Tactile Ratio: FC > 40%
Highlight:

membrane switch keyboard

,

membrane key switch

LED Membrane Switch Panel , Tactile Dome And Backlit Keypad



Key Details
Place of Original: ShenZhen China
Application:Industrial device, home appliance
Keypad Button Material:    PVC, PC,PET, Sandwich,circuit
color:all color
Material:Polyester or Polycarbonate
glue:3M or common
Artwork Format: CorelDraw, Adobe Illustrator AI or EPS, AutoCAD Dwg or DXF



Packaging & Delivery
Packaging Detail: Customer' designes are welcome
Delivery Detail: 7-10 working days after comformation


Specifications

  1. membrane key switch
  2. 100% testing
  3. High quality siliver ink
  4. Printing Circuit
  5. Screen printing
  6. Waterproof
  7. LED backlight(if need)


Membrane keypad with FPC circuit

membrane switch label
Material: Polyester or Polycarbonate
Artwork Format: CorelDraw, Adobe Illustrator AI or EPS, AutoCAD Dwg or DXF
Tactile Feel: Is determined by the thickness of the overlayer. Normally between 0.06” -0.08".
Color Verification: Pantone Matching System;The Munsell Color System;Color Samples
Conductive Trace: Silver or Copper
Shielding: EMI/ESD/RFI can be employed.
Dome:Stainless Steel or Mylar
Actuation Force: Depend on customer's requirement. Normally between 30-600 grams.
Travel: Depend on customer's requirement. Normally between 0.010" - 0.020".
Life Cycle: 5 Million Cycles(up to)



Strength:

  1. Pressing life-span is over ten hundred thousand times.
  2. Have the characteristics of the function stabilizes.
  3. Handle reliably and good tactility feeling.
  4. Customised design



Technology

Operating voltage:  35V DC
Operating current: 100mA  1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:-20°c to +80°c
Storage temperature: Flat/Metal dome:-40°cto +80°c
Life expectancy  Flat type≥5,000,000 times Tactile type≥1,000,000 times
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH
Female, male connector, solder pins and heat seal connectors are available
Packaging & Delivery
Packaging:  PE bag, Carton, Wooden case
Delivery Detail: two weeks after order confirmation

We help design the back support in aluminum, stainless steel, PC and acrylic etc.

LED Membrane Switch Panel , Tactile Dome And Backlit Keypad 0

LED Membrane Switch Panel , Tactile Dome And Backlit Keypad 1
