Tactile 3M LED Membrane Switch Panel For Industrial

Tactile 3M LED Membrane Switch Panel For Industrial

Tactile 3M LED Membrane Switch Panel For Industrial
Tactile 3M LED Membrane Switch Panel For Industrial Tactile 3M LED Membrane Switch Panel For Industrial

Large Image :  Tactile 3M LED Membrane Switch Panel For Industrial

Product Details:
Place of Origin: China
Brand Name: DOPO
Certification: CE,FCC,ROHS
Model Number: DPT-MS-05
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 20Kpcs/day
Detailed Product Description
Glue: 3M Or Common Material: Polyester Or Polycarbonate
Application: Industrial Device, Home Appliance Keypad Button Material: PVC, PC,PET, Sandwich,circuit
Classification: Tactile & Non-Tactile Operating Voltage: 35V DC
Operating Current: 100mA 1W Tactile Ratio: FC > 40%
Highlight:

membrane switch keyboard

,

membrane key switch

Tactile 3M LED Membrane Switch Panel For Industrial



Key Details
Place of Original: ShenZhen China
Application: Industrial device, home appliance
Keypad Button Material: PVC, PC,PET, Sandwich,circuit
color:all color
Material: Polyester or Polycarbonate
glue: 3M or common
Artwork Format: CorelDraw, Adobe Illustrator AI or EPS, AutoCAD Dwg or DXF



Packaging & Delivery
Packaging Detail: Customer' designes are welcome
Delivery Detail: 7-10 working days after comformation


Specifications

  1. membrane key switch
  2. 100% testing
  3. High quality siliver ink
  4. Printing Circuit
  5. Screen printing
  6. Waterproof
  7. LED backlight(if need)


Membrane keypad with FPC circuit

membrane switch label
Material: Polyester or Polycarbonate
Artwork Format: CorelDraw, Adobe Illustrator AI or EPS, AutoCAD Dwg or DXF
Tactile Feel: Is determined by the thickness of the overlayer. Normally between 0.06” -0.08".
Color Verification: Pantone Matching System;The Munsell Color System;Color Samples
Conductive Trace: Silver or Copper
Shielding: EMI/ESD/RFI can be employed.
Dome:Stainless Steel or Mylar
Actuation Force: Depend on customer's requirement. Normally between 30-600 grams.
Travel: Depend on customer's requirement. Normally between 0.010" - 0.020".
Life Cycle: 5 Million Cycles(up to)



Strength:

  1. Pressing life-span is over ten hundred thousand times.
  2. Have the characteristics of the function stabilizes.
  3. Handle reliably and good tactility feeling.
  4. Customised design



Technology

Operating voltage:  35V DC
Operating current: 100mA  1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:-20°c to +80°c
Storage temperature: Flat/Metal dome:-40°cto +80°c
Life expectancy  Flat type≥5,000,000 times Tactile type≥1,000,000 times
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH
Female, male connector, solder pins and heat seal connectors are available
Packaging & Delivery
Packaging:  PE bag, Carton, Wooden case
Delivery Detail: two weeks after order confirmation

Per customer’s requirement, we can place OCA + acrylic (or PC) at the back of membrane switch to harden the window.

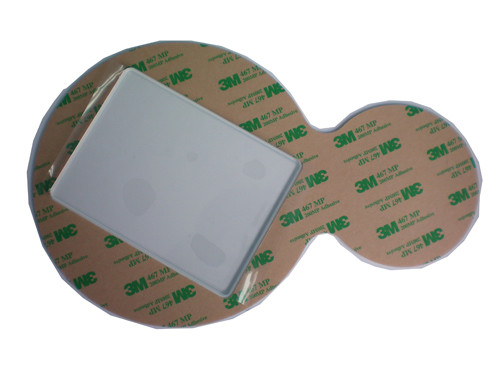

Tactile 3M LED Membrane Switch Panel For Industrial 0

Tactile 3M LED Membrane Switch Panel For Industrial 1
