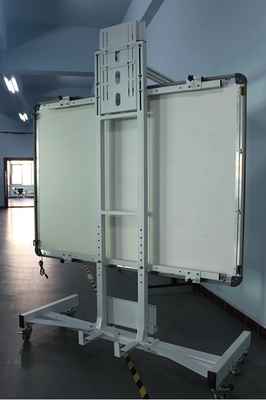

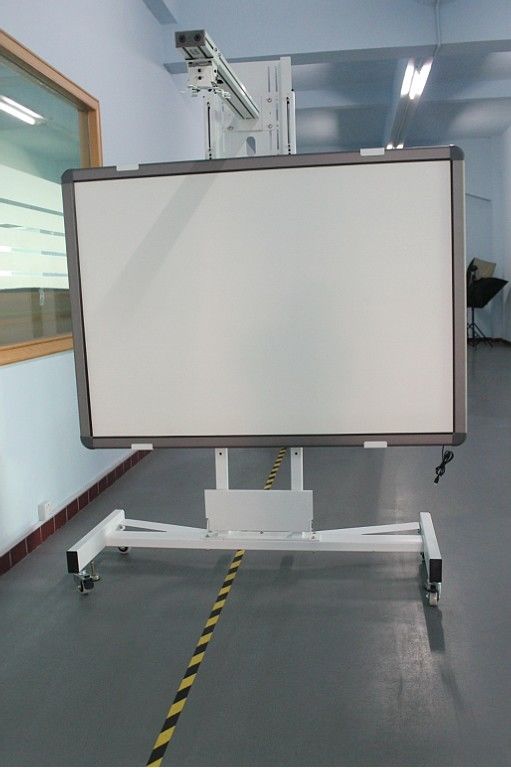

80" 82" 100 Inch Smart Interactive Whiteboard

DOPO Touch Monitor Specification

Model

DPT-TB-8000xx


LCD

Size

80”

LCD Brand

AUO

Power

Power

< 800W

Standby Power

<１W

Display

Active Display Area

see drawing

Pixel Pitch

Display Colors

1.07 billion colors

Number of Pixels

1920x1080 pixels

Brightness

500cd/m2

Viewing Angle

178 Degree

TV

optional

Input and
Output
Ports

USB Multimedia Input ports

4-line

Touchscreen port

1-line USB2.0

HDMI Input port

1-line

VGA Input port

1-line

PC Audio port

1-line

UPBRP audio and videoinput port

2-line

AV Input port

2-line

S-VIDEO port

1-line

SPDIF port

1-line

Touch
Panel

Touch Technology

Infrared touch technology

Touch mode

Single, multipoint,Mouse click

Inductive objects

Finger,pen or any other opaque objects

Inductive size

Diameter≥5mm

Resolution

4096*4096

Response time

1) First dot(click):8ms, continuously(writing):3ms
2)multipointclick:firstdot(click):8ms,continuously(writing):8ms
3) Mouse click: first dot(click):8ms,continuously(writing):
8ms

Cursor speed

UP to 300 dots/s Multipoint,mouse click:125 dot/s

Operating life

≥60,000,000 times to click

Power

USB power supply (4.6-5V, DC)

Power consumption

≤1w

Multi-touch operation

Compatible with windows 7 OS, to achieve the
multi-touch and writingwith two points, support
win7 gesture recognition

Calibration

HID devices standard, accord with Win7 multi-touch
protocol, no needspecial software to calibrate, just use
Table PC setting to finish thecalibration.

Anti-light decay function

Anti-light decay circuits to prevent the performance
degradation causedby long working hours

LED Test Software

Supply touch screen LED test software to test the
function of eachcouple of the LED lights and the
drawing functions

Antilight interferencefunction

can work properly in direct sunlight condition

Standard
Configuration

Interactive all-in-one touchmonitor

１set

Remote Control

TV Remote control

USB cable

1.5m USB cable for touch monitor, USB2.0

VGA cable

1.5m VGA cable

Audio cable

1.5m audio cable

CD

1 pcs

Pens without ink

2 pcs

User manul

1 pcs

Optional
Configuration

PC

Display

High-Version

Motherboard

Gigabyte 880G

CPU

AMD 250 3.0G dual-core

RAM

DDR II 2G

Hard Disk

500G

Network Adapter

Onboard Realtek RTL8111D Gigabit Ethernet

Wireless Mouse

Optional

Install Accessories

Wall brackets

Optional

Packing

External Size

1710*1030*100mm (without base)

Carton Size

1740*1100*290mm

Net Weight

150kg

Gross Weight

158kg
