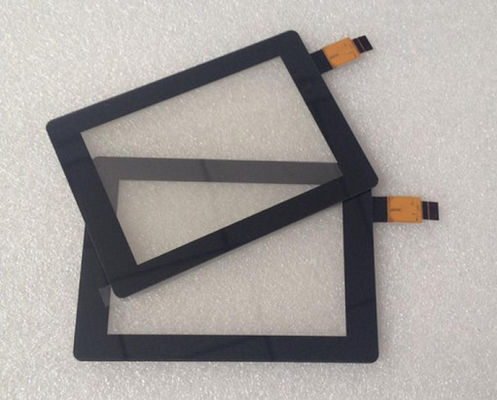

G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home

G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home

G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home
G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home

Large Image :  G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home

Product Details:
Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: DPT-PCT-0800XX
Payment & Shipping Terms:
Minimum Order Quantity: 3000pcs
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 60Kpcs/month
Detailed Product Description
Highlight:

panel pc touch screen

,

replacement lcd panel

G+F/F 7 Inch Projected Capacitive Touch Screen Panel For Tablet PC / Smart Home





G+F/F "/8"/9.7"/10.1"/12.1"/13.3"/14"/15.6"/17"/19"/21.5"/23.6"/32"/42"/46"/47"/55"/65"





Quick Detail:



1. Size: 8.0 inch

2. Resolution: 1024*1024

3. Input method: Finger

4. Material: Glass+ Film or  Glass+ Glass

5. Touch action force: 30~60g

6. Operating Voltage: 3.3V





Advantage


■ Multi-points touching
■ Superior image clarity with high light transmission

■ Controller IC close to sensor for best performance
■ Sensitive and fast response
■ Highest resolution
■ More application in electronic fields





Projected Capacitive TouchScreen Technology



Projected Capacitive Technology permits more accurate and flexible operation by etching the conductive layer on the touch screen. Projected Capacitive Technology (PCT) is a more robust solution versus resistive touch technology since PCT's top layer is made of glass. DOPO's Projected Capacitive Touchscreens can support resolutions up to 1024 x 1024 with a sampling rate of 50 times per second. Our Projected Capacitive Touch Screens uses multiple layers of glass wih optical lamination in assembly process. This makes the PCT touch screen the same touchness as tempered glass which could stand against shock and impact.

Projected Capacitive touch panels are embedded with high performance IC and users can enlarge, shrink, rotate, flip and drag pages easily due to the multi-touch gesture support (multi touch touch screen).





Specification



Item

Specification (Some index value will be adjusted according to customizated requirements)

1

Item NO.

DPT-PCT-0800XX

2

Detection method

Projected Capacitive

3

Size

8"

4

Outline dimension(mm)

204.06*154.06mm(adjustable if need)

5

View area(mm)

163.32*122.86 mm(adjustable if need)

6

Active area(mm)

162.32*121.86 mm(adjustable if need)

7

Aspect ratio

16:9 or 4:3

8

Resolution

1024*1024

9

Input method

Finger

10

Touch action force

30~60g

11

Operating Voltage

3.3V adjustable

12

Operating current

2.5~10mA Depends on IC

13

Operating temperature

-10°C~60°C

14

Storage temperature

-15°C~40°C ,<90%RH;40°C~70°C,<60%RH

15

Humidity

10%~90%RH at 40°C, non-condensing

16

Relative humidity

10%~90%RH at 40°C, non-condensing

17

Response time

<10ms

18

Transparency

≥82% depends on the quantity of layers

19

Surface hardness

≥5H

20

Material structure

Glass+ Film or  Glass+ Glass

21

Thickness

1.6mm adjustable Glass(1.1mm) +Top ITO Film(0.125mm) +Bottom ITO Film(0.125mm)

22

Light transmission

92%~100%

23

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

24

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

25

Certificates

CE, FCC, RoHS

26

Working environment

Under sunlight,indoor and outdoor

27

Finger Touch life

≥35,000,000 times

28

Warranty

1 year





Application


■ Mobile phone
■ Car navigation (GPS)
■ E-book
■ MID (tablet PC)
■ Handheld game device
■ Camera
■ Electronic photo frame



Example of drawings







G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home 0



G+F/F 7 Inch Projected Capacitive Tablet Touch Panel For Tablet PC / Smart Home 1
