Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

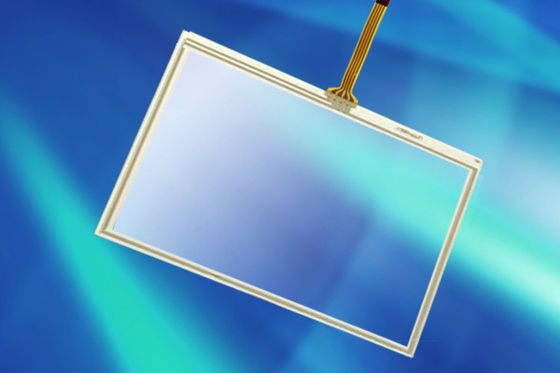

Large Image : Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Product Details:

Place of Origin:	China
Brand Name:	Dopo touch
Certification:	CE,FCC,ROHS
Model Number:	DPT-4W-xxxxxx

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	Standard export package
Delivery Time:	7-15 working days
Payment Terms:	T/T,westen union
Supply Ability:	60Kpcs/month

Contact Now

Detailed Product Description

Highlight:

resistive touch screens

4 wire resistive touch screen

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Quick Detail:

1.Material: Glass + film

2.Aspect ratio: 4:3

3.Input method: Finger or touch pen

4.Thickness: ITO Glass:see below,ITO Film:0.188mm

5.Surface hardness: 3H

6.Detection method: Four wire Resistive

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller 0

Specification

1) 4.7" 4W-M047001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller 2

Item No.	4W-M044701
Type	4-wire resistive touch screen (Analogue type)
Structure	ITO Film / ITO Glass
Outline Dimensions	113691mm
View Area	109*62mm
Active Area	104.7*60mm
TP Size (inch, diagonal)	4.7
Connector	FPC
Input Method	Pen or finger
Input Force	≦100g
Operation Voltage	5V
Transmittance	>78%
Linearity	≦1.5%
Operation Temperature	-10℃～60℃
Operation Humidity	20%～90%RH
Storage Temperature	-20℃～70℃
Storage Humidity	20%～90%RH
Hitting life	1,000,000 times
Response Time	<15ms
ROHS, REACH, PTH, PAHs, NP

2) 4.9" 4W-M049001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller 3

Item No.	4W-M049001
Type	4-wire resistive touch screen (Analogue type)
Structure	ITO Film / ITO Glass
Outline Dimensions	113651.5mm
View Area	109*59mm
Active Area	108.458.4mm .64.4mm
TP Size (inch, diagonal)	4.9
Connector	FPC
Input Method	Pen or finger
Input Force	≦100g
Operation Voltage	5V
Transmittance	>72%
Linearity	≦1.5%
Operation Temperature	-10℃～60℃
Operation Humidity	20%～90%RH
Storage Temperature	-20℃～70℃
Storage Humidity	20%～90%RH
Hitting life	1,000,000 times
Response Time	<15ms
ROHS, REACH, PTH, PAHs, NP

3) 5.5" 4W-M055001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller 4

Item No.	4W-M055001
Type	Digital resistive touch screen
Structure	ITO Film / ITO Glass
Outline Dimensions	137.1690.931.42mm
View Area	125.98*76.99mm
Active Area	121.5269.86mm .64.4mm
TP Size (inch, diagonal)	5.5
Connector	FPC
Input Method	Pen or finger
Input Force	≦100g
Operation Voltage	3V～5V
Transmittance	>78%
Linearity	≦1.5%
Operation Temperature	-10℃～60℃
Operation Humidity	20%～90%RH
Storage Temperature	-20℃～70℃
Storage Humidity	20%～90%RH
Hitting life	1,000,000 times
Response Time	<15ms
ROHS, REACH, PTH, PAHs, NP

4) 7.0" 4W-M070001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller 5

Item No.	4W-M070001
Type	4-wire resistive touch screen (Analogue type)
Structure	ITO Film / ITO Glass
Outline Dimensions	167.192.81.2mm
View Area	158*84.6mm
Active Area	156.483.12mm .64.4mm
TP Size (inch, diagonal)	7
Connector	FPC
Input Method	Pen or finger
Input Force	80g～100g
Operation Voltage	3V～5V
Transmittance	>78%
Linearity	≦1.5%
Operation Temperature	-10℃～60℃
Operation Humidity	20%～90%RH
Storage Temperature	-20℃～70℃
Storage Humidity	20%～90%RH
Hitting life	1,000,000 times
Response Time	<15ms
ROHS, REACH, PTH, PAHs, NP

5) 7.1" 4W-M071001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller 6

Item No.	4W-M071001
Type	4-wire resistive touch screen (Analogue type)
Structure	ITO Film / ITO Glass
Outline Dimensions	161.1101.11.4mm
View Area	154.45*94.75mm
Active Area	154.4594.75mm .64.4mm
TP Size (inch, diagonal)	7.1
Connector	FPC
Input Method	Pen or finger
Input Force	80g～100g
Operation Voltage	3V～5V
Transmittance	>78%
Linearity	≦1.5%
Operation Temperature	-10℃～60℃
Operation Humidity	20%～90%RH
Storage Temperature	-20℃～70℃
Storage Humidity	20%～90%RH
Hitting life	1,000,000 times
Response Time	<15ms
ROHS, REACH, PTH, PAHs, NP

6) 8.5" 4W-M085001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller 7

Item No.	4W-M085001
Type	4-wire resistive touch screen (Analogue type)
Structure	ITO Film / ITO Glass
Outline Dimensions	182.7142.651.4mm
View Area	173.8*131.2mm
Active Area	171.8129.2mm .64.4mm
TP Size (inch, diagonal)	8.5
Connector	FPC
Input Method	Pen or finger
Input Force	80g～100g
Operation Voltage	3V～5V
Transmittance	>78%
Linearity	≦1.5%
Operation Temperature	-10℃～60℃
Operation Humidity	20%～90%RH
Storage Temperature	-20℃～70℃
Storage Humidity	20%～90%RH
Hitting life	1,000,000 times
Response Time	<15ms
ROHS, REACH, PTH, PAHs, NP

7) 10.4" 4W-104001

Item No.	4W-M104001
Type	Multi-Touch (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	225.50176.30 2.13mm
View Area	214.23* 161.64mm
Active Area	211.73* 159.12mm
TP Size (inch, diagonal)	10.4
Connector	FPC
Input Method	Touch stylus or finger
Input Force	30g -80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C , humidity 10%~90%
	> 35°C to 50℃ , humidity 10%~60%
Storage Environment	-30°C to 35°C , humidity 10%~90%
	> 35°C to 70℃ , humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M time.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

8) 13.3" 4W-M133001

Item No.	4W-M133001
Type	AMR (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	307.60183.102.13mm
View Area	296.42*167.97mm
Active Area	295.42*166.97mm
TP Size (inch, diagonal)	13.3
Connector	FPC
Input Method	stylus or finger
Input Force	30g-80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C, humidity 10%~90%
	>35°C to 50℃, humidity 10%~60%
Storage Environment	-30°C to 35°C, humidity 10%~90%
	>35°C to 70℃, humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M times.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

9) 18.5" 4W-185001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller 10

Item No.	4W-M185001
Type	resistive Multi-Touch (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	430.37254.602.13mm
View Area	413.20*233.80mm
Active Area	411*231.60mm
TP Size (inch, diagonal)	18.5
Connector	FPC
Input Method	Touch stylus or finger
Input Force	30g-80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C, humidity 10%~90%
	>35°C to 50℃, humidity 10%~60%
Storage Environment	-30°C to 35°C, humidity 10%~90%
	>35°C to 70℃, humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M time.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

10) 19" 4W-M190001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller 11

Item No.	4W-M190001
Type	AMR (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	432.00278.002.13mm
View Area	416.42*258.50mm
Active Area	411.20*257.30mm
TP Size (inch, diagonal)	19
Connector	FPC
Input Method	stylus or finger
Input Force	30g-80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C, humidity 10%~90%
	>35°C to 50℃, humidity 10%~60%
Storage Environment	-30°C to 35°C, humidity 10%~90%
	>35°C to 70℃, humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M times.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

11) 20" 4W-M200001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller 12

Item No.	4W-M200001
Type	AMR (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	462.80272.002.13mm
View Area	445.80*252.20mm
Active Area	443.80*250.20mm
TP Size (inch, diagonal)	20
Connector	FPC
Input Method	stylus or finger
Input Force	30g-80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C, humidity 10%~90%
	>35°C to 50℃, humidity 10%~60%
Storage Environment	-30°C to 35°C, humidity 10%~90%
	>35°C to 70℃, humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M times.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

12) 23" 4W-M230001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller 13

Item No.	4W-M230001
Type	Multi-Touch (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	533.203122.13mm
View Area	513.78*291.02mm
Active Area	509.18*286.42mm
TP Size (inch, diagonal)	23
Connector	FPC
Input Method	Touch stylus or finger
Input Force	30g-80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C, humidity 10%~90%
	>35°C to 50℃, humidity 10%~60%
Storage Environment	-30°C to 35°C, humidity 10%~90%
	>35°C to 70℃, humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M times.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

13 ) 23.6" 4W-M236001

Item No.	4W-M236001
Type	AMR (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	544.80320.52.13mm
View Area	523.50*295.50mm
Active Area	522.50*294.50mm
TP Size (inch, diagonal)	23.6
Connector	FPC
Input Method	stylus or finger
Input Force	30g-80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C, humidity 10%~90%
	>35°C to 50℃, humidity 10%~60%
Storage Environment	-30°C to 35°C, humidity 10%~90%
	>35°C to 70℃, humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M times.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP
