High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen

High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen
High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen

Large Image :  High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen

Product Details:

Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: DPT-4W-xx

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 60Kpcs/month
Detailed Product Description
High Light:

resistive touch screens

,

resistive touch screen panel

High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen





Quick Detail:



Detection Method: Resistive

Size:4.0"~52" (4"-22"G/F;23"-52"F/F)

Aspect Ratio: 4:3/16:9

Input Method: Finger Or Touch Pen

Touch Action Force: 20~80g

Position Accuracy: 2.5~5mm





Benefits


■ Low cost
■ Finger, gloved hand and stylus activation
■ High accuracy and sensitivity
■ High durability and reliability
■ Contaminant proof and liquid resistance





Description:



4-Wire Resistive touch screen is an outstanding high quality product, suitable for low cost solution. It is inherently of many advantages such as high accuracy, quick response, drift-free, stable and long durability for a life time of 1,000,000 times finger touches. DOPO 4 wire Resistive touchscreen featured contamination-resistant and waterproof, is designed for the harshest environment such as dust is prevalent or liquid spills, splashes and wash down. It can be touched by finger, gloved finger, leather or stylus pen.





Specification



Item

Specification

1

Item model

DPT-4W-***

2

Detection method

Resistive

3

Size

4.0"~52"  (4"-22"G/F;23"-52"F/F)

4

Aspect ratio

4:3/16:9

5

Input method

Finger or touch pen

6

Touch action force

20~80g

7

Position accuracy

2.5~5mm

8

Operating Voltage

DC ≤ 10v

9

Operating current

5~25mA

10

Operating temperature

-10°C~60°C

11

Storage temperature

-20°C~70°C

12

Humidity

10%~90% RH at 60°C, non-condensing

13

Relative humidity

10%~90% RH at 40°C, non-condensing

14

Response time

<10ms

15

Transparency

≥80%

16

Surface hardness

3H

17

Material

Glass + film

18

Thickness

ITO Glass:1.1~1.8mm

ITO Film:0.188mm

19

Light transmission

92%~100%

20

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

21

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

22

Surface Disposal

Glare hard coating;  Anti-Newton ring

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Pen hitting life

≥10,000,000/point

26

Pen sliding Durability

≥500,000times

27

Finger Touch life

≥35,000,000 times

28

Surface resistance

200Ω~900Ω

29

Isolation resistance

≥20MΩ   @ DC 25V

30

Linearity

≤1.5%

31

X.Y resistance

100Ω~1000Ω according to the size

32

Warranty

1 year





Application


■ Light industrial
■ Home appliances
■ Portable sport devices
■ Access control terminals
■ Portable medical devices

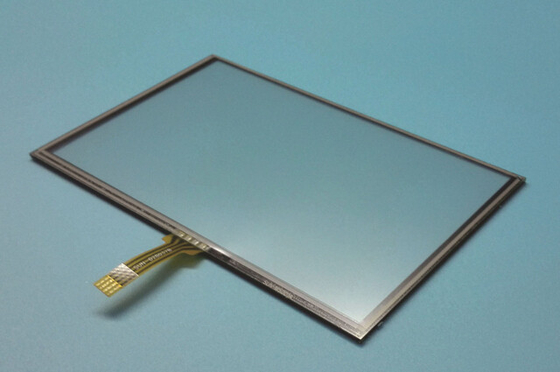

High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen 0

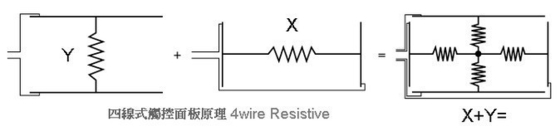

High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen 1

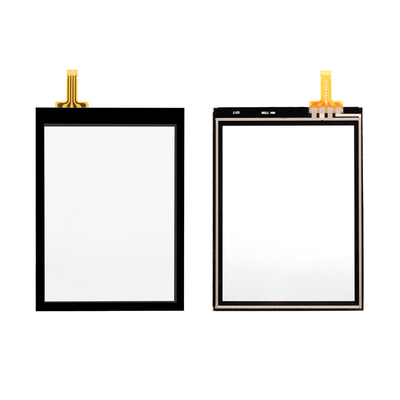

High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen 2



No.

Size

Item NO.

Outline Dimension

(mm)  OD

 Viewing Area(mm)

VA

Action Area(mm)

AA

1

Customized size 2”-10.1” with small pin and no controller

2

2.0”

DPT-4W-0200135

50.50*38.00

40.60*33.80

39.60*32.68

3

2.5”

DPT-4W-0250106

63.00*29.00

59.80*23.80

25.00*22.30

4

2.8”

DPT-4W-0280131

68.80*48.80

59.00*44.80

58.00*43.80

5

DPT-4W-0280194

66.72*45.00

60.00*35.48

57.00*33.48

6

3.0”

DPT-4W-0300115

72.00*39.00

67.30*34.00

62.30*31.80

7

DPT-4W-0300130

66.00*64.00

53.90*58.50

52.90*50.50

8

DPT-4W-0300199A

76.69*55.00

67.79*51.60

66.79*50.60

9

DPT-4W-0300199B

76.69*55.00

67.79*51.60

66.79*50.60

10

3.2”

DPT-4W-0320128

77.50*49.80

71.90*40.10

71.50*39.70

11

DPT-4W-0320174

72.00*50.00

67.30*44.00

62.30*41.80

12

3.3”

DPT-4W-0330038

82.00*24.00

78.00*18.50

/

13

DPT-4W-0330061

75.60*59.50

68.60*52.50

/

14

3.5”

DPT-4W-0350018

76.00*68.60

64.00*61.60

/

15

DPT-4W-0350122

85.00*64.00

76.2*58.40

75.80*58.00

16

DPT-4W-0350129

77.20*55.10

71.00*50.70

69.00*49.20

17

3.6”

DPT-4W-0360200A

80.00*65.00

77.00*55.90

76.00*54.90

18

DPT-4W-0360200B

80.00*65.00

77.00*55.90

76.00*54.90

19

4.2”

DPT-4W-0420035

101.00*61.00

94.00*52.00

/

20

4.3”

DPT-4W-0430008

104.70*64.90

99.00*57.60

96.40*55.00

21

DPT-4W-0430044

102.00*62.50

97.40*56.30

95.64*54.46

22

DPT-4W-0430097

104.50*65.90

96.74*57.05

95.74*54.50

23

5.0”

DPT-4W-0500028

119.10*73.20

115.10*67.00

110.80*67.00

24

DPT-4W-0500034

117.50*70.00

112.50*65.00

112.00*65.00

25

DPT-4W-0500122

120.00*73.50

115.10*67.50

110.80*66.22

26

DPT-4W-0500192

120.70*76.30

111.20*68.20

108.30*65.10

27

5.2”

DPT-4W-0520011

131.00*78.00

114.00*64.00

108.00*58.00

28

5.6”

DPT-4W-0560041

126.50*100.00

113.80*85.90

112.80*84.90

29

5.7”

DPT-4W-0570012

132.50*104.70

122.00*93.85

115.17*86.37

30

DPT-4W-0570055

133.00*103.00

123.00*93.00

115.17*86.36

31

DPT-4W-0570081

130.00*97.00

120.00*91.00

116.04*87.00

32

DPT-4W-0570108

129.50*101.50

117.30*87.90

112.50*83.80

33

6.1”

DPT-4W-0610147

149.00*82.90

138.20*74.00

135.00*70.80

34

6.2”

DPT-4W-0620002

154.80*87.80

140.70*80.00

137.52*77.22

35

DPT-4W-0620002B

155.20*88.20

140.70*80.00

135.05*75.40

36

DPT-4W-0620045

155.20*88.20

138.82*78.53

135.82*75.53

37

DPT-4W-0620064

154.80*87.80

143.50*80.62

135.80*75.50

38

DPT-4W-0620074

154.30*87.20

140.80*80.00

135.80*75.00

39

DPT-4W-0620104

155.00*88.00

142.40*80.43

135.40*75.30

40

DPT-4W-0620120

152.75*87.55

142.35*79.95

134.65*72.40

41

6.5”

DPT-4W-0650001

155.00*88.00

139.70*78.80

136.40*75.60

42

DPT-4W-0650168

154.80*89.10

146.40*80.55

142.38*76.30

43

6.7”

DPT-4W-0670123

154.00*105.00

144.20*92.00

142.20*90.00

44

6.95”

DPT-4W-0695140

166.50*92.50

159.24*84.87

154.40*80.56

45

DPT-4W-0695142

166.95*92.90

159.35*84.80

157.15*79.70

46

DPT-4W-0695148

166.70*92.50

158.60*84.25

154.50*80.50

47

7.0”

DPT-4W-0700007

165.00*100.00

157.00*90.00

152.00*85.00

48

DPT-4W-0700021

164.60*103.60

155.70*94.70

152.40*91.44

49

DPT-4W-0700026

166.77*92.50

158.60*84.25

154.50*80.50

50

DPT-4W-0700030

164.50*99.50

155.30*87.22

150.40*83.50

51

DPT-4W-0700046

164.90*99.90

157.00*87.90

152.60*83.53

52

DPT-4W-0700047

164.80*99.80

156.30*89.30

154.30*86.80

53

DPT-4W-0700056

164.90*100.00

155.50*88.50

153.50*86.00

54

DPT-4W-0700060

164.90*100.00

155.60*88.64

152.60*83.94

55

DPT-4W-0700065B

164.80*100.00

155.60*88.64

152.60*85.64

56

DPT-4W-0700069

161.20*97.00

156.20*88.80

155.60*88.20

57

DPT-4W-0700072

164.50*99.70

157.30*89.70

153.08*83.92

58

DPT-4W-0700073

164.90*99.90

157.50*89.90

149.60*83.49

59

DPT-4W-0700076

164.50*99.60

155.50*88.50

153.50*86.00

60

DPT-4W-0700079

164.80*99.90

155.90*90.40

152.70*85.70

61

DPT-4W-0700087

164.80*100.00

156.80*91.30

149.74*82.30

62

DPT-4W-0700092

164.70*99.80

154.60*87.64

151.60*84.64

63

DPT-4W-0700110

162.60*97.60

156.00*89.52

152.50*84.85

64

DPT-4W-0700117

164.40*99.90

154.20*91.25

151.94*84.70

65

DPT-4W-0700119

164.30*98.70

156.68*88.52

155.68*87.52

66

DPT-4W-0700126

163.60*98.90

156.40*89.30

151.35*84.20

67

DPT-4W-0700153

163.65*100.46

156.60*93.00

154.60*91.00

68

DPT-4W-0700157

164.90*99.00

157.25*90.10

155.25*88.10

69

DPT-4W-0700162

165.30*93.00

149.10*76.80

145.10*72.80

70

DPT-4W-0700169

164.90*100.00

156.70*89.10

152.38*84.70

71

7.1”

DPT-4W-0710116

167.39*104.10

157.20*94.80

155.00*92.00

72

8.0”

DPT-4W-0800004

192.20*116.00

183.00*105.70

175.80*99.30

73

DPT-4W-0800071

192.30*116.40

180.10*103.40

174.00*96.50

74

DPT-4W-0800082

192.56*116.80

182.60*106.00

173.60*96.50

75

DPT-4W-0800109

182.70*140.50

160.40*125.40

161.88*121.80

76

8.1”

DPT-4W-0810005

192.40*115.86

180.10*103.78

175.64*98.36

77

8.4”

DPT-4W-0810138

191.17*141.50

171.40*131.80

172.40*129.80

78

9.0”

DPT-4W-0900075

210.70*126.10

201.00*114.70

197.00*110.70

79

DPT-4W-0900185

210.50*124.30

200.40*114.48

198.60*112.68

80

10.1”

DPT-4W-1010086

235.00*143.00

225.50*128.00

221.50*124.00

81

10.4”

DPT-4W-1040042

228.60*175.30

211.008157.50

208.80*155.30

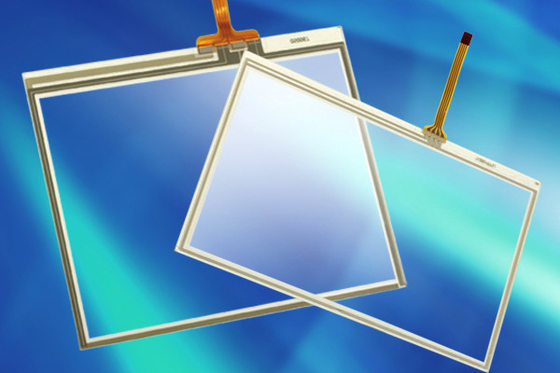

                                               High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen 3

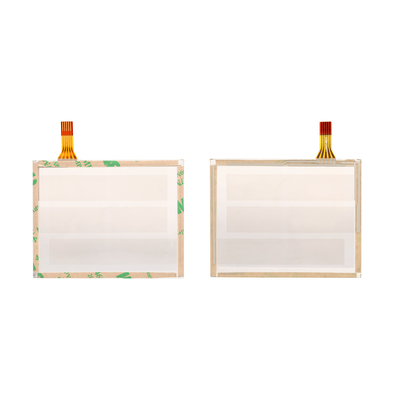

                                        High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen 4

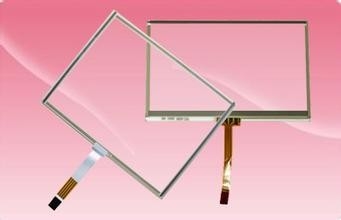

High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen 5



High Accuracy 2 - 10.4" Lcd Touchscreen Panel , 4 Wire Resistive Touch Screen 6
