Detailed Product Description
High Light:

resistive touch screens

,

4 wire resistive touch screen

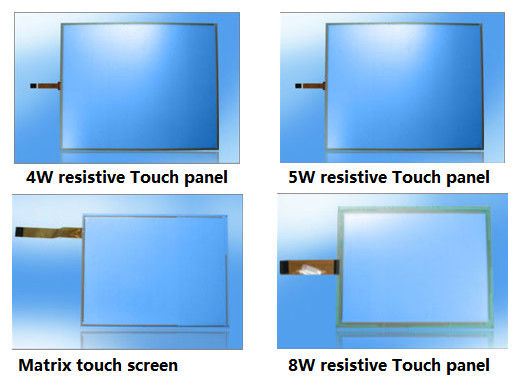

The standard/customzied touch panel we can offer as below:



1) 2" - 22" 4 Wire Resistive Touch Panel , Glass + Film Industrial Touch Screen Panel



2) 4.7" - 23.6" Multipoint touch 4 wire Resistive Touch Panel , Glass + Film Industrial Touch Screen Panel



3) 21" - 52" 4 Wire Resistive Touch Panel , Film + Film Industrial Touch Screen Panel



4) the RTP 4W / 5W / 8W resistive touch panel same size



5) Customized OEM / ODM matrix touch screen





Application



■ Light industrial
■ Home appliances
■ Portable sport devices

■ Access control terminals
■ Portable medical devices



Item

Specification

1

Item model

DPT-4W-***

2

Detection method

Resistive

3

Size

2.0"~22" (4"-22"G/F;23"-52"F/F)

4

Aspect ratio

4:3/16:9

5

Input method

Finger or touch pen

6

Touch action force

20~80g

7

Position accuracy

2.5~5mm

8

Operating Voltage

DC ≤ 10v

9

Operating current

5~25mA

10

Operating temperature

-10°C~60°C

11

Storage temperature

-20°C~70°C

12

Humidity

10%~90% RH at 60°C, non-condensing

13

Relative humidity

10%~90% RH at 40°C, non-condensing

14

Response time

<10ms

15

Transparency

≥80%

16

Surface hardness

3H

17

Material

Glass + film

18

Thickness

ITO Glass:1.1~1.8mm

ITO Film:0.188mm

19

Light transmission

92%~100%

20

Durability

Scratch-free; More than 50,000,000 touches in one

location without failure

21

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

22

Surface Disposal

Glare hard coating; Anti-Newton ring

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Pen hitting life

≥10,000,000/point

26

Pen sliding Durability

≥500,000times

27

Finger Touch life

≥35,000,000 times

28

Surface resistance

200Ω~900Ω

29

Isolation resistance

≥20MΩ @ DC 25V

30

Linearity

≤1.5%

31

X.Y resistance

100Ω~1000Ω according to the size

32

Warranty

1 year





RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 0



4W resistive overview

4-Wire Resistive touch screen is an outstanding high quality product, suitable for low cost solution. It is inherently of many advantages such as high accuracy, quick response, drift-free, stable and long durability for a life timeof 1,000,000 times finger touches. DOPO 4 wire Resistive touchscreen featuredcontamination-resistant and waterproof, is designed for the harshest environment such as dust is prevalent or liquid spills, splashes and wash down. It can be touched by finger, gloved finger, leather or stylus pen.



Benefits

■ Low cost
■ Finger, gloved hand and stylus activation
■ High accuracy and sensitivity
■ High durability and reliability
■ Contaminant proof and liquid resistance





1. The below are small size 4W TP without USB controller



No.

Size

Item NO.

Outline Dimension

(mm)  OD

 Viewing Area(mm)

VA

Action Area(mm)

AA

1

Customized size 2”-10.1” with small pin and no controller

2

2.0”

DPT-4W-0200135

50.50*38.00

40.60*33.80

39.60*32.68

3

2.5”

DPT-4W-0250106

63.00*29.00

59.80*23.80

25.00*22.30

4

2.8”

DPT-4W-0280131

68.80*48.80

59.00*44.80

58.00*43.80

5

DPT-4W-0280194

66.72*45.00

60.00*35.48

57.00*33.48

6

3.0”

DPT-4W-0300115

72.00*39.00

67.30*34.00

62.30*31.80

7

DPT-4W-0300130

66.00*64.00

53.90*58.50

52.90*50.50

8

DPT-4W-0300199A

76.69*55.00

67.79*51.60

66.79*50.60

9

DPT-4W-0300199B

76.69*55.00

67.79*51.60

66.79*50.60

10

3.2”

DPT-4W-0320128

77.50*49.80

71.90*40.10

71.50*39.70

11

DPT-4W-0320174

72.00*50.00

67.30*44.00

62.30*41.80

12

3.3”

DPT-4W-0330038

82.00*24.00

78.00*18.50

/

13

DPT-4W-0330061

75.60*59.50

68.60*52.50

/

14

3.5”

DPT-4W-0350018

76.00*68.60

64.00*61.60

/

15

DPT-4W-0350122

85.00*64.00

76.2*58.40

75.80*58.00

16

DPT-4W-0350129

77.20*55.10

71.00*50.70

69.00*49.20

17

3.6”

DPT-4W-0360200A

80.00*65.00

77.00*55.90

76.00*54.90

18

DPT-4W-0360200B

80.00*65.00

77.00*55.90

76.00*54.90

19

4.2”

DPT-4W-0420035

101.00*61.00

94.00*52.00

/

20

4.3”

DPT-4W-0430008

104.70*64.90

99.00*57.60

96.40*55.00

21

DPT-4W-0430044

102.00*62.50

97.40*56.30

95.64*54.46

22

DPT-4W-0430097

104.50*65.90

96.74*57.05

95.74*54.50

23

5.0”

DPT-4W-0500028

119.10*73.20

115.10*67.00

110.80*67.00

24

DPT-4W-0500034

117.50*70.00

112.50*65.00

112.00*65.00

25

DPT-4W-0500122

120.00*73.50

115.10*67.50

110.80*66.22

26

DPT-4W-0500192

120.70*76.30

111.20*68.20

108.30*65.10

27

5.2”

DPT-4W-0520011

131.00*78.00

114.00*64.00

108.00*58.00

28

5.6”

DPT-4W-0560041

126.50*100.00

113.80*85.90

112.80*84.90

29

5.7”

DPT-4W-0570012

132.50*104.70

122.00*93.85

115.17*86.37

30

DPT-4W-0570055

133.00*103.00

123.00*93.00

115.17*86.36

31

DPT-4W-0570081

130.00*97.00

120.00*91.00

116.04*87.00

32

DPT-4W-0570108

129.50*101.50

117.30*87.90

112.50*83.80

33

6.1”

DPT-4W-0610147

149.00*82.90

138.20*74.00

135.00*70.80

34

6.2”

DPT-4W-0620002

154.80*87.80

140.70*80.00

137.52*77.22

35

DPT-4W-0620002B

155.20*88.20

140.70*80.00

135.05*75.40

36

DPT-4W-0620045

155.20*88.20

138.82*78.53

135.82*75.53

37

DPT-4W-0620064

154.80*87.80

143.50*80.62

135.80*75.50

38

DPT-4W-0620074

154.30*87.20

140.80*80.00

135.80*75.00

39

DPT-4W-0620104

155.00*88.00

142.40*80.43

135.40*75.30

40

DPT-4W-0620120

152.75*87.55

142.35*79.95

134.65*72.40

41

6.5”

DPT-4W-0650001

155.00*88.00

139.70*78.80

136.40*75.60

42

DPT-4W-0650168

154.80*89.10

146.40*80.55

142.38*76.30

43

6.7”

DPT-4W-0670123

154.00*105.00

144.20*92.00

142.20*90.00

44

6.95”

DPT-4W-0695140

166.50*92.50

159.24*84.87

154.40*80.56

45

DPT-4W-0695142

166.95*92.90

159.35*84.80

157.15*79.70

46

DPT-4W-0695148

166.70*92.50

158.60*84.25

154.50*80.50

47

7.0”

DPT-4W-0700007

165.00*100.00

157.00*90.00

152.00*85.00

48

DPT-4W-0700021

164.60*103.60

155.70*94.70

152.40*91.44

49

DPT-4W-0700026

166.77*92.50

158.60*84.25

154.50*80.50

50

DPT-4W-0700030

164.50*99.50

155.30*87.22

150.40*83.50

51

DPT-4W-0700046

164.90*99.90

157.00*87.90

152.60*83.53

52

DPT-4W-0700047

164.80*99.80

156.30*89.30

154.30*86.80

53

DPT-4W-0700056

164.90*100.00

155.50*88.50

153.50*86.00

54

DPT-4W-0700060

164.90*100.00

155.60*88.64

152.60*83.94

55

DPT-4W-0700065B

164.80*100.00

155.60*88.64

152.60*85.64

56

DPT-4W-0700069

161.20*97.00

156.20*88.80

155.60*88.20

57

DPT-4W-0700072

164.50*99.70

157.30*89.70

153.08*83.92

58

DPT-4W-0700073

164.90*99.90

157.50*89.90

149.60*83.49

59

DPT-4W-0700076

164.50*99.60

155.50*88.50

153.50*86.00

60

DPT-4W-0700079

164.80*99.90

155.90*90.40

152.70*85.70

61

DPT-4W-0700087

164.80*100.00

156.80*91.30

149.74*82.30

62

DPT-4W-0700092

164.70*99.80

154.60*87.64

151.60*84.64

63

DPT-4W-0700110

162.60*97.60

156.00*89.52

152.50*84.85

64

DPT-4W-0700117

164.40*99.90

154.20*91.25

151.94*84.70

65

DPT-4W-0700119

164.30*98.70

156.68*88.52

155.68*87.52

66

DPT-4W-0700126

163.60*98.90

156.40*89.30

151.35*84.20

67

DPT-4W-0700153

163.65*100.46

156.60*93.00

154.60*91.00

68

DPT-4W-0700157

164.90*99.00

157.25*90.10

155.25*88.10

69

DPT-4W-0700162

165.30*93.00

149.10*76.80

145.10*72.80

70

DPT-4W-0700169

164.90*100.00

156.70*89.10

152.38*84.70

71

7.1”

DPT-4W-0710116

167.39*104.10

157.20*94.80

155.00*92.00

72

8.0”

DPT-4W-0800004

192.20*116.00

183.00*105.70

175.80*99.30

73

DPT-4W-0800071

192.30*116.40

180.10*103.40

174.00*96.50

74

DPT-4W-0800082

192.56*116.80

182.60*106.00

173.60*96.50

75

DPT-4W-0800109

182.70*140.50

160.40*125.40

161.88*121.80

76

8.1”

DPT-4W-0810005

192.40*115.86

180.10*103.78

175.64*98.36

77

8.4”

DPT-4W-0810138

191.17*141.50

171.40*131.80

172.40*129.80

78

9.0”

DPT-4W-0900075

210.70*126.10

201.00*114.70

197.00*110.70

79

DPT-4W-0900185

210.50*124.30

200.40*114.48

198.60*112.68

80

10.1”

DPT-4W-1010086

235.00*143.00

225.50*128.00

221.50*124.00

81

10.4”

DPT-4W-1040042

228.60*175.30

211.008157.50

208.80*155.30







2. The Below is the big size 4W touch panel with USB controller





No.

Size

Item NO.

OD(mm)

VA(mm)

AA(mm)

1

9.7”-22”

Customized size

With USB controller

2

9.7”

TP097W4H1

210.00*164.00

200.91*152.26

196.61*147.46

3

TP097W4L1

234.70*115.60

223.30*103.10

220.30*100.10

4

10”

TP100W4LN

224.50*169.50

211.00*160.50

206.00*155.50

5

10.1”

TP101W4L1

234.40*142.30

228.60*131.80

225.60*128.30

6

TP101W4N2

234.00*142.00

226.50*129.00

224.50*127.00

7

10.2”

TP102W4K

233.00*143.80

223.40*132.20

221.40*130.20

8

TP102W4L1

235.00*145.90

224.90*136.11

222.00*133.20

9

TP102W4N1

235.00*145.00

228.00*135.90

224.00*132.50

10

TP102W4N2

228.50*148.50

220.50*139.20

217.00*136.20

11

TP102W4N3

228.50*148.50

220.50*139.20

217.00*136.20

12

TP102W4N5

234.50*135.00

227.50*130.00

226.10*128.60

13

10.4”

TP104W4BZ

234.00*178.00

216.00*163.40

212.00*159.40

14

TP104W4H1

224.50*172.00

214.20*161.60

212.20*172.00

15

TP104W4H3

229.00*171.50

220.00*165.00

212.00*157.00

16

TP104W4L1

225.40*175.90

215.00*162.20

211.20*158.40

17

TP104W4L2

221.00*171.10

209.00*158.50

203.00*152.50

18

TP104W4N1

228.50*175.50

218.00*167.50

216.00*165.50

19

TP104W4N2

225.55*172.95

215.00*162.20

211.20*158.80

20

TP104W4N3

235.00*143.00

225.70*128.20

222.70*125.20

21

TP104W4N5

225.55*172.95

215.00*165.21

209.70*158.80

22

TP104W4N6

228.00*175.00

214.40*161.50

213.20*160.30

23

TP104W4N7

224.00*168.50

209.00*158.50

203.00*152.50

24

TP104W4N8

228.00*175.00

213.20*160.40

211.20*158.40

25

TP104W4N9

225.55*172.95

215.00*162.20

214.00*161.00

26

TP104W4N10

225.30*172.80

215.50*162.00

211.50*158.00

27

TP104W4N11

225.00*173.50

215.80*162.70

213.00*159.90

28

10.5”

TP105W4N1

227.60*174.40

213.10*174.40

210.10*157.10

29

10.6”

TP106W4N1

259.60*117.30

250.00*103.50

248.00*101.50

30

11.4”

TP114W4H1

244.50*186.50

236.00*177.50

173.50*231.00

31

12.1”

TP121W4BZ

266.00*203.20

253.50*191.50

248.00*186.00

32

TP121W4H2

271.00*206.00

254.00*192.00

248.00*186.00

33

TP121W4K

275.82*178.03

264.12*166.20

261.12*163.20

34

TP121W4N2

260.00*200.00

252.00*190.00

248.00*186.00

35

TP121W4N3

260.80*203.20

248.00*187.20

245.00*184.20

36

TP121W4N4

279.00*166.84

271.01*153.68

268.01*150.68

37

TP121W4N6

261.00*198.60

250.80*190.60

249.80*188.20

38

TP121W4N7

260.00*200.00

247.80*186.00

243.20*182.30

39

12.2”

TP122W4N1

275.50*178.00

264.00*167.50

262.00*164.50

40

13”

TP130W4N1

299.00*173.30

280.40*152.70

280.40*152.70

41

13.3”

TP133W4K

310.40*181.60

297.40*168.60

294.40*165.60

42

TP133W4L1

292.00*216.00

274.30*206.00

272.30*204.00

43

TP133W4N1

285.00*217.00

275.00*207.00

270.00*202.00

44

TP133W4N3

305.00*183.50

297.00*172.00

291.00*164.00

45

TP133W4N4

296.40*191.40

288.00*181.00

286.00*179.00

46

14.1”

TP141W4BZ

298.00*227.00

289.00*218.00

285.00*214.00

47

TP141W4K

319.50*203.20

307.00*193.10

303.74*189.84

48

TP141W4N3F

323.50*191.99

313.40*177.95

309.40*173.95

49

TP141W4N4

319.10*203.10

307.00*193.20

303.36*189.60

50

TP141W4N5

323.50*191.99

313.40*177.95

309.40*173.95

51

15”

TP150W4BD

322.00*247.00

310.50*236.00

302.00*226.00

52

TP150W4BZ

322.00*247.00

310.50*236.00

304.00*228.00

53

TP150W4K

346.20*217.00

331.20*207.00

327.20*203.00

54

TP150W4N1

320.30*243.40

309.00*233.00

306.00*230.00

55

TP150W4N2

324.50*248.70

308.10*232.10

306.10*230.10

56

TP150W4N3

322.00*247.00

308.10*232.10

306.10*230.10

57

TP150W4N4

322.00*247.00

310.50*236.00

304.00*228.00

58

15.4”

TP154W4K

344.00*222.00

335.00*210.70

331.20*207.00

59

TP154W4KN

344.00*222.00

335.00*210.70

331.20*207.00

60

15.6”

TP156W4K

363.80*215.90

347.30*196.60

344.30*193.60

61

TP156W4N2

359.00*209.20

344.00*194.00

341.008191.00

62

TP156W4N3

359.00*209.20

348.30*197.60

344.30*193.60

63

TP156W4N4

359.30*209.50

345.56*194.99

344.16*193.59

64

17”

TP170W4BZ

355.00*288.00

341.50*275.00

337.00*269.00

65

TP170W4K

382.20*239.50

367.20*229.50

363.20*225.50

66

TP170W4KN

381.50*243.00

371.00*232.50

367.60*229.10

67

17.3”

TP173W4K

397.50*232.00

385.50*218.00

383.50*216.00

68

TP173W4L1

397.70*232.40

384.98*217.77

382.98*215.77

69

TP173W4L2

396.00*230.00

387.00*219.00

382.00*214.00

70

TP173W4N2

397.80*232.50

386.10*219.00

381.60*214.50

71

18.4”

TP184W4K

421.20*244.90

412.00*232.50

409.00*229.50

72

18.5”

TP185W4K

424.00*243.00

410.00*231.00

406.00*227.00

73

TP185W4KN

429.37*253.60

413.39*234.00

409.79*230.40

74

TP185W4N2

429.37*253.60

413.39*234.00

409.79*230.40

75

19”

TP190W4BZ

396.00*323.00

377.00*304.00

375.00*300.00

76

TP190W4K

426.40*266.50

410.40*256.50

406.40*252.50

77

TP190W4KL

426.00*276.00

414.00*260.00

410.00*256.00

78

TP190W4KN

426.00*276.00

414.00*260.00

410.00*256.00

79

TP190W4N2

426.00*276.00

410.24*259.15

407.40*254.00

80

19.5”

TP195W4N1

452.00*263.00

435.00*243.06

430.00*238.00

81

20”

TP200W4BZ

430.00*322.00

413.00*311.00

408.00*306.00

82

21.5”

TP215W4K

490.00*285.00

480.00*270.00

476.00*266.00

83

TP215W4L1

495.00*292.00

479.00*271.30

476.00*268.00

84

22”

TP220W4

488.00*310.00

475.20*297.00

472.20*294.00

85

TP220W4H1

491.00*318.00

477.00*300.00

475.00*297.60

86

TP220W4N1

487.70*315.00

477.70*300.10

473.76*296.10

87

22”-52”

4W Film/Film

Customized FF-RTP

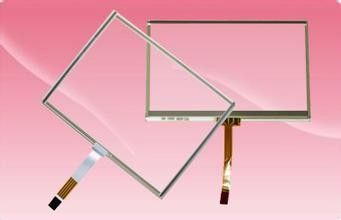

RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 1







RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 2



 RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 3RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 4





3. New item 4W RTP multitouch 4wire resistive touch panle





RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 5



No.

Size

Item NO.

OD&thickness (mm)

VA(mm)

AA(mm)

1

4.7”

4W-M047001

113*69*1

109*62

104.7*60

2

4.9”

4W-M049001

113*65*1.5

109*59

108.4*58.4

3

5.5”

4W-M055001

137.16*90.93*1.4

125.98*76.9

121.52*69.86

4

7.0”

4W-M070001

167.1*92.8*1.2

158*84.60

156.4*83.12

5

7.1”

4W-M071001

161.1*101.1*1.4

154.45*94.75

154.45*94.75

6

8.5”

4W-M085001

182.7*142.65*1.4

173.8*131.2

171.8*129.2

7

10.4”

4W-M104001

225.50*176.30* 2.13

214.23* 161.64

211.73* 159.12

8

13.3”

4W-M133001

307.60*183.10*2.13

296.42*167.97

295.42*166.97

9

18.5”

4W-M185001

430.37*254.60*2.13

413.20*233.80

411*231.60

10

19”

4W-M190001

432.00*278.00*2.13

416.42*258.50

411.20*257.30

11

20”

4W-M200001

462.80*272.00*2.13

445.80*252.20

443.80*250.20

12

23”

4W-M230001

533.20*312*2.13

513.78*291.02

509.18*286.42

13

23.6”

4W-M236001

544.80*320.5*2.13

523.50*295.50

522.50*294.50









Item No.

4W-M190001     Multitouch panel

Type

AMR (Analog type)

Structure

ITO Film / ITO Glass

Outline Dimensions

432.00*278.00*2.13mm

View Area

416.42*258.50mm

Active Area

411.20*257.30mm

TP Size (inch, diagonal)

19

Connector

FPC

Input Method

stylus or finger

Input Force

30g-80g

Operation Voltage

5V

Transmittance

>78%

Linearity

± 1.5% error or less for X and Y axis.

Operation Environment

-10°C to 35°C, humidity 10%~90%



>35°C to 50℃, humidity 10%~60%

Storage Environment

-30°C to 35°C, humidity 10%~90%



>35°C to 70℃, humidity 10%~60%

Hitting life

Pen sliding: more than 100k times



Pen hitting: more than 1M times.



Finger Touch: more than 5M times.

ROHS, REACH, PTH, PAHs, NP



4W resistive touch panel FILM/FILM  21"-52"



RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 6









RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 7



RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 8



5. Matrix touch screen

RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 9   RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 10





RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 11RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 12  RTP 4 Wire Resistive Touch Panel 2" - 52" , Glass + Film Industrial Touch Screen 13











Contact Details
DOPO TECH GROUP LIMITED

Contact Person: dopo

Send your inquiry directly to us (0 / 3000)
