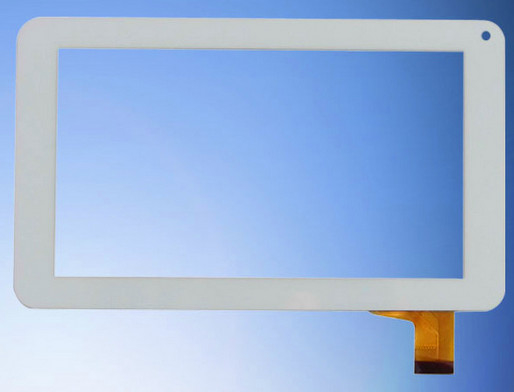

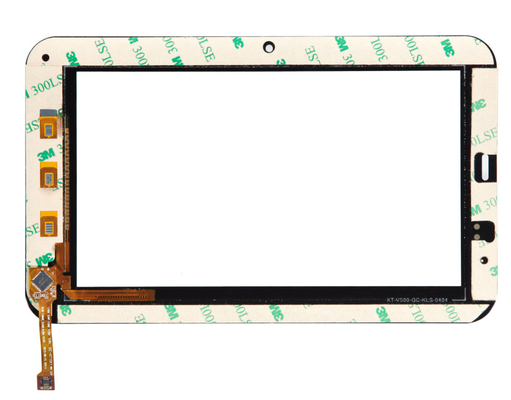

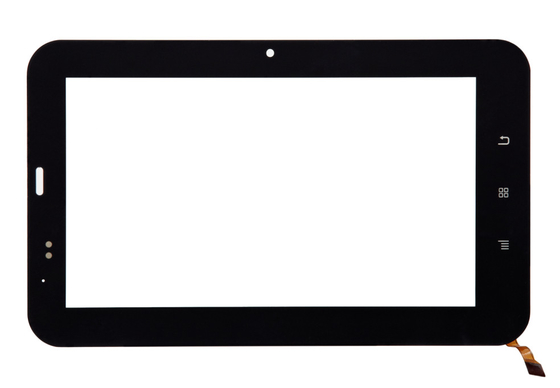

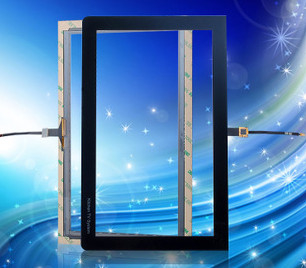

7 inch Multi touch Projected Capacitive Touch Panel For Smart Home And car GPS

7 inch Multi touch Projected Capacitive Touch Panel For Smart Home And car GPS

7 inch Multi touch Projected Capacitive Touch Panel For Smart Home And car GPS
7 inch Multi touch Projected Capacitive Touch Panel For Smart Home And car GPS 7 inch Multi touch Projected Capacitive Touch Panel For Smart Home And car GPS 7 inch Multi touch Projected Capacitive Touch Panel For Smart Home And car GPS 7 inch Multi touch Projected Capacitive Touch Panel For Smart Home And car GPS

Large Image :  7 inch Multi touch Projected Capacitive Touch Panel For Smart Home And car GPS

Product Details:
Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: DPT-PCT-0700XX
Payment & Shipping Terms:
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 30Kpcs/month
Detailed Product Description
Highlight:

projected capacitive touch screen

,

lcd capacitive touchscreen

7 inch Multi touch Projected Capacitive Touch Panel For Smart Home And Camera





Quick Detail:



1. Size: 7inch customized

2. Resolution: 1024*1024

3. Input method: Finger

4. Material: Glass+glass,PET+glass, Glass + Film + Film

5. Touch action force: 30~60g

6. Operating Voltage: 3.3V





Advantage


■ Multi-points touching
■ Superior image clarity with high light transmission

■ Controller IC close to sensor for best performance
■ Sensitive and fast response
■ Highest resolution
■ More application in electronic fields





Projected Capacitive TouchScreen Technology



Projected Capacitive Technology permits more accurate and flexible operation by etching the conductive layer on the touch screen. Projected Capacitive Technology (PCT) is a more robust solution versus resistive touch technology since PCT's top layer is made of glass. DOPO's Projected Capacitive Touchscreens can support resolutions up to 1024 x 1024 with a sampling rate of 50 times per second. Our Projected Capacitive Touch Screens uses multiple layers of glass wih optical lamination in assembly process. This makes the PCT touch screen the same touchness as tempered glass which could stand against shock and impact.

Projected Capacitive touch panels are embedded with high performance IC and users can enlarge, shrink, rotate, flip and drag pages easily due to the multi-touch gesture support (multi touch touch screen).





Specification



Item

Specification

1

Item model

DPT-PCT-***

2

Detection method

Projected Capacitive touch panel with/without IC

3

Size

7"

4

Aspect ratio

4:3/16:9

5

Resolution

According to the size

6

Input method

Finger

7

Touch action force

30~60g

8

Operating Voltage

3.3V adjustable

9

Operating current

2.5~10mA Depends on IC

10

Operating temperature

-10°C~60°C

11

Storage temperature

-15°C~40°C ,<90%RH;40°C~70°C,<60%RH

12

Humidity

10%~90%RH at 40°C, non-condensing

13

Relative humidity

10%~90%RH at 40°C, non-condensing

14

Response time

<10ms

15

Transparency

≥82% depends on the quantity of layers

16

Surface hardness

≥5H

17

Material

G+F/F, G+G,P+G

18

Thickness

0.5-1.1mm adjustable

19

Light transmission

92%~100%

20

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

21

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

22

Certificates

CE, FCC, RoHS

23

Working environment

Under sunlight,indoor and outdoor

24

Finger Touch life

≥35,000,000 times

25

Warranty

1 year





Custom Projected Capacitive Touch Screens



Our capacitive touch panel design can be paired with housing design from the customers to cover their lens or replace the physical buttons on its original module. DOPO is also capable of doing the customized shape needed to pair with customer's mechanical design.

With the assistance of the simulation software, equiment with high accuracy and simplifying assembly process, DOPO is capable of making the sample in shorter period and with lower development charge.

Projected Capacitive Touch Panel Applications

Since Projected capacitive touch panels can sense gloved hand gestures, it is a popular and logical choice for the medical and industrial industries. Its robust design also makes it a hard-wearing logical choice for point of sales and consumer products.





Application


■ Mobile phone
■ Car navigation (GPS)
■ E-book
■ MID (tablet PC)
■ Handheld game device
■ Camera
■ Electronic photo frame



Comparison between Capacitive Touch Panel and Resistive Touch Panel

Capacitive Touch Panel

Resistive Touch Panel

Touch (no pressure needed)

Press (pressure activated)

No calibration required

Calibration required (resistance drift on film)

Better Durability, No significant aging

Display turns white when aging

Handles high temperature

Film breaks down at high temperature

Better Transparency, less optical power needed

Low transmission

Can be vandal-proof (thick glass/plastic)

Easily damaged (thin top layer)

Scratch Resistant (with glass)

Prone to scratch without hardcoat

Stylus not a must

Need stylus, easy to lose
