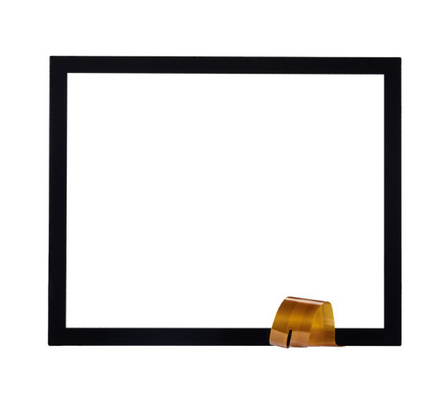

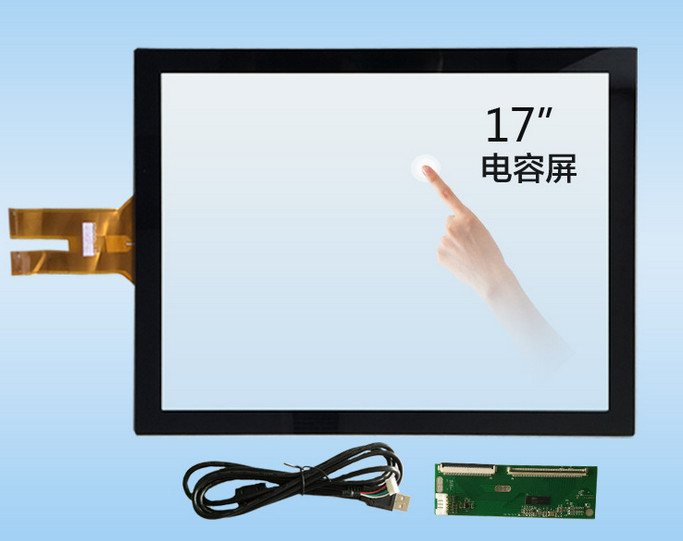

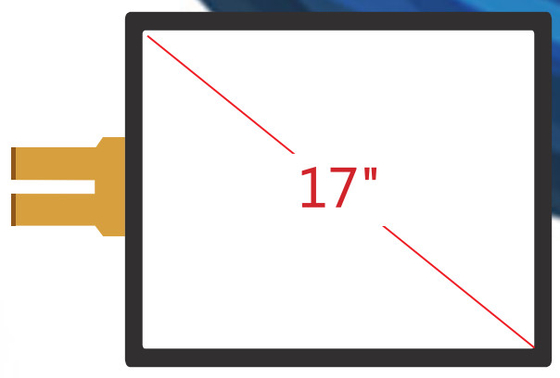

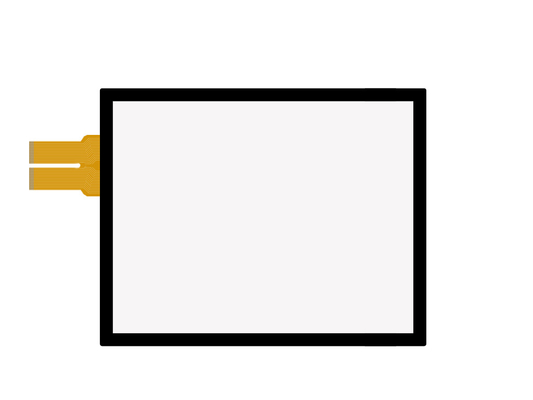

17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel

17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel

17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel
17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel 17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel 17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel 17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel

Large Image :  17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel

Product Details:
Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: GG-170010 GG-170020
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 12Kpcs/month
Detailed Product Description
High Light:

projected capacitive touch screen

,

lcd capacitive touchscreen

17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel





Quick Detail:



1.Size: 17"

2.Resolution: 25ppi(min)

3.Input method: Finger

4.Material: G+G

5.Touch action force: 30~60g

6.Operating Voltage: 5V





Advantage


■ Multi-points touching
■ Superior image clarity with high light transmission

■ Controller IC close to sensor for best performance
■ Sensitive and fast response
■ Highest resolution
■ More application in electronic fields





Projected Capacitive TouchScreen Technology



Projected Capacitive Technology permits more accurate and flexible operation by etching the conductive layer on the touch screen. Projected Capacitive Technology (PCT) is a more robust solution versus resistive touch technology since PCT's top layer is made of glass. DOPO's Projected Capacitive Touchscreens can support resolutions up to 1024 x 1024 with a sampling rate of 50 times per second. Our Projected Capacitive Touch Screens uses multiple layers of glass wih optical lamination in assembly process. This makes the PCT touch screen the same touchness as tempered glass which could stand against shock and impact.

Projected Capacitive touch panels are embedded with high performance IC and users can enlarge, shrink, rotate, flip and drag pages easily due to the multi-touch gesture support (multi touch touch screen).





 Specification



Item

Specification

Standard projected capacitive touch panel  with controller  (interface:USB)

1

Item NO.

GG-170010     GG-170020

2

Detection method

Projected Capacitive

3

Size

17"



4

working area





5

Outline dimension





6

Resolution

25ppi(min)

7

Input method

Finger

8

Touch action force

30~60g

9

Operating Voltage

5V adjustable

10

Operating current

2.5~10mA Depends on IC

11

Operating temperature

-10°C~60°C

12

Storage temperature

-15°C~65°C ,<90%RH;40°C~70°C,<60%RH

13

Humidity

10%~90%RH at 40°C, non-condensing

14

Relative humidity

10%~90%RH at 40°C, non-condensing

15

Response time

<35ms

16

Transparency

≥82% depends on the quantity of layers

17

Surface hardness

≥4H

18

Material structure

P+G,G+G,G+F/F

19

Thickness



20

Light transmission

92%~100%

21

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

22

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Finger Touch life

≥35,000,000 times

26

Warranty

1 year





Application


■ Information station
■ Car navigation (GPS)
■ E-book
■ kiosk
■ Game device
■ ATM
■ Electronic photo frame





17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel 0



17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel 1



17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel 2



17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel 3



No.

Size

Item NO.

CG OD

(mm)

 CG VA

(mm)

Sensor AA

mm

Sensor/CG

Thick mm

Total thick

1

1”-10.1”

 I2C

P+G

Customized product

TP <10.1” are 5-point touch and TP>10.1” are 10-point touch

I2C(COF)And special USB(COF) product

G+G

G+F/F

10.4”-17”

I2C/USB

P+G

Customized product

10-point touch

I2C(COF)And USB(COF),USB(COB) product

G+G

G+F/F

2

17”-

65”

USB



P+G

Customized product

10-point touch

 USB(COB) product

G+G

G+F/F

3

2”-32”

OGS

One glass screen  Customized product





All of the below items are USB interface

4

7”

GG-070020

182.30*122.00

155.80*87.50

155.20*87.10

0.7/0.55

1.4

5

8”

GG-080020

191.90*150.00

164.00*123.50

163.20*122.90

0.7/0.55

1.4

6

10.1”

GG-101020

255.00*169.00

216.00*136.00

215.00*135.00

0.7/0.55

1.4

7

10.2”

GG-102020

247.20*194.00

212.20*159.40

211.20*158.40

0.7/1.1

2

8

10.4”

GG-104010

247.20*189.40

213.20*160.40

215.20*162.40

1.1/2

3.3

9

12.1”

GG-121010

290.00*220.50

246.00*184.50

248.00*186.50

0.7/1.1

2

10

GG-121020

290.00*220.50

246.00*184.50

246.00*184.50

0.7/1.1

2

11

13.3”

GG-133010

333.40*196.00

293.4.00*165.00

295.00*166.60

0.55/1.1

1.85

12

GG-133020

329.70*210.00

296.47*168.00

295.47*167.00

0.7/1.1

2

13

14”

GG-140010

335.00*200.00

305.00*176.00

307.00*178.00

1.1/2

3.3

14

15”

GG-150010

339.90*263.90

304.00*228.00

306.00*230.00

1.1/3

4.3

15

GG-150020

331.60*254.80

307.00*232.10

306.00*231.10

0.7/1.1

2

16

GG-150021

326.00*253.40

306.00*230.00

305.00*229.00

0.7/2

2.9

17

15.6”

GG-156010

387.00*231.00

344.00*194.00

346.00*196.00

1.1/3

4.3

18

GG-156020

373.63*233.34

344.23*193.54

342.23*191.54

0.7/1.1

2

19

17”

GG-170010

377.00*309.00

339.00*271.30

340.90*273.30

1.1/3

4.3

20

GG-170020

377.00*298.00

340.92*273.34

338.92*271.34

0.7/2

3

21

17.3”

GG-173010

550.00*278.00

375.90*208.80

377.90*210.80

1.1/3

4.3

22

18.5”

GG-185010

458.00*283.00

410.80*231.40

412.80*233.40

1.1/3

4.3

23

GG-185020

443.90*273.55

412.80*233.40

410.80*231.40

0.7/1.1

2

24

18.95”

GG-189510

450.80*301.00

409.80*259.00

410.80*260.0

1.1/3

4.3

25

19”

GG-190010

421.00*346.00

377.30*302.10

379.30*304.10

1.1/3

4.3

26

GG-190020

421.00*346.00

379.32*304.96

377.32*302.96

0.7/2

2.9

27

21”

GG-210020

525.00*312.00

480.20*271.80

478.20*269.80

1.1/1.1

2.35

28

21.5”

GG-215010

524.00*321.80

478.00*269.80

478.60*270.10

1.1/3

4.3

29

22”

GG-220010

550.00*376.00

475.70*298.10

477.70*300.10

1.1/3

4.3

30

23.6”

GG-236010

573.00*349.00

525.50*297.00

527.50*299.00

1.1/3

4.3

31

27”

GG-270010

658.00*416.00

598.00*336.00

600.00*338.00

1.1/3

4.3

32

32”

GFF-320010

770.70*465.30

698.70*393.30

706.00*397.90

0.45/3

3.65

33

GG-320010

770.70*465.30

698.70*393.30

704.00*396.00

1.1/3

4.3

34

42”

GFF-420010

994.20*587.30

934.20*527.30

938.20*531.10

0.45/4

4.65

35

46”

GFF-460010

1090.80*645.40

1020.80*575.40

1033.20596.40

0.45/4

4.65

36

55”

GFF-550010

1273.00*744.40

1213.60*684.40

1205.60*678.40

0.45/4

4.65





17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel 4



17 Inch 10-Point Projected Capacitive Touch Screen Lcd Panel , Industrial Touch Panel 5
