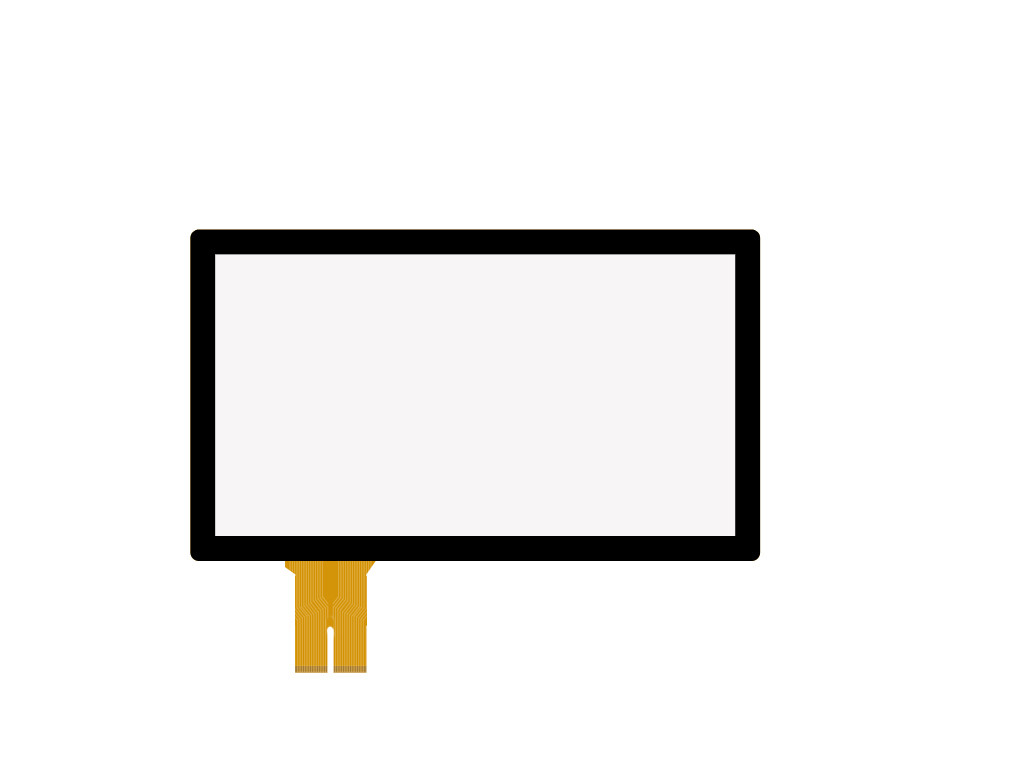

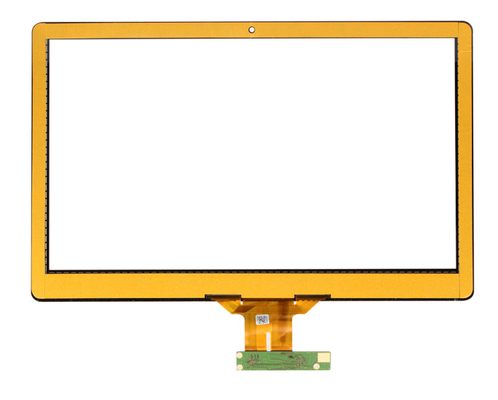

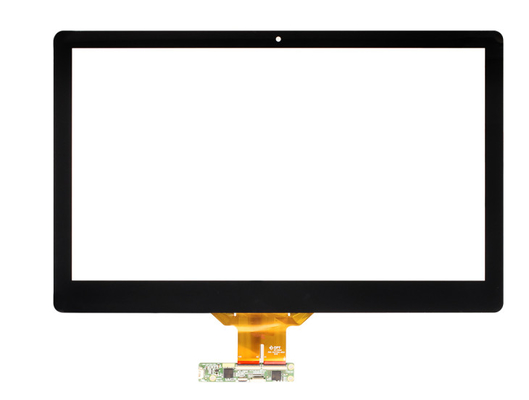

Multi Touch 13.3 Inch Standard Custom Projected Capacitive Resistive Touch Panel

Multi Touch 13.3 Inch Standard Custom Projected Capacitive Resistive Touch Panel

Multi Touch 13.3 Inch Standard Custom Projected Capacitive Resistive Touch Panel
Multi Touch 13.3 Inch Standard Custom Projected Capacitive Resistive Touch Panel Multi Touch 13.3 Inch Standard Custom Projected Capacitive Resistive Touch Panel Multi Touch 13.3 Inch Standard Custom Projected Capacitive Resistive Touch Panel Multi Touch 13.3 Inch Standard Custom Projected Capacitive Resistive Touch Panel

Large Image :  Multi Touch 13.3 Inch Standard Custom Projected Capacitive Resistive Touch Panel

Product Details:
Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: GG-133010 GG-133020
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs for standard item and 500pcs for customzied item
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 20Kpcs/month
Detailed Product Description
Highlight:

surface capacitive touch panel

,

lcd capacitive touchscreen

Multi Touch 13.3 Inch Standard Custom Projected Capacitive USB / I2C Touch Panel





Quick view



1. ten-point touch

2. USB interface

3. outline See attachment

4. Active area see attachment





Advantage



■ Multi-points touching
■ Superior image clarity with high light transmission

■ Controller IC close to sensor for best performance
■ Sensitive and fast response
■ Highest resolution
■ More application in electronic fields







Item

Specification

1

Item model

GG-133010    GG-133020

2

Detection method

Projected Capacitive

3

Size

13.3"

4

Aspect ratio

4:3/16:9

5

Resolution

According to the size

6

Input method

Finger

7

Touch action force

30~60g

8

Operating Voltage

3.3V adjustable

9

Operating current

2.5~10mA Depends on IC

10

Operating temperature

-10°C~60°C

11

Storage temperature

-15°C~40°C ,<90%RH;40°C~70°C,<60%RH

12

Humidity

10%~90%RH at 40°C, non-condensing

13

Relative humidity

10%~90%RH at 40°C, non-condensing

14

Response time

<10ms

15

Transparency

≥82% depends on the quantity of layers

16

Surface hardness

≥5H

17

Material

Glass + Film + Film

18

Thickness

SEE DRAWING

19

Light transmission

92%~100%

20

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

21

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

22

Certificates

CE, FCC, RoHS

23

Working environment

Under sunlight,indoor and outdoor

24

Finger Touch life

≥35,000,000 times

25

Warranty

1 year



Comparison between Capacitive Touch Panel and Resistive Touch Panel

Capacitive Touch Panel

Resistive Touch Panel

Touch (no pressure needed)

Press (pressure activated)

No calibration required

Calibration required (resistance drift on film)

Better Durability, No significant aging

Display turns white when aging

Handles high temperature

Film breaks down at high temperature

Better Transparency, less optical power needed

Low transmission

Can be vandal-proof (thick glass/plastic)

Easily damaged (thin top layer)

Scratch Resistant (with glass)

Prone to scratch without hardcoat

Stylus not a must

Need stylus, easy to lose

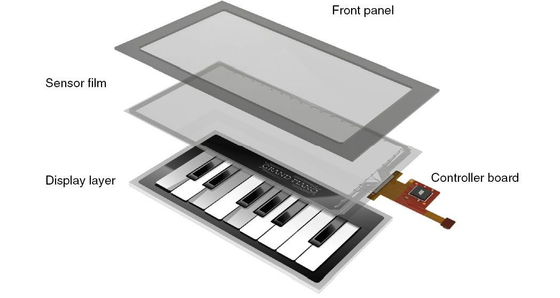

Projected Capacitive TouchScreen Technology

Projected Capacitive Technology permits more accurate and flexible operation by etching the conductive layer on the touch screen. Projected Capacitive Technology (PCT) is a more robust solution versus resistive touch technology since PCT's top layer is made of glass. DOPO's Projected Capacitive Touchscreens can support resolutions up to 1024 x 1024 with a sampling rate of 50 times per second. Our Projected Capacitive Touch Screens uses multiple layers of glass wih optical lamination in assembly process. This makes the PCT touch screen the same touchness as tempered glass which could stand against shock and impact.
Projected Capacitive touch panels are embedded with high performance IC and users can enlarge, shrink, rotate, flip and drag pages easily due to the multi-touch gesture support (multi touch touch screen).


Custom Projected Capacitive Touch Screens

Our capacitive touch panel design can be paired with housing design from the customers to cover their lens or replace the physical buttons on its original module. DOPO is also capable of doing the customized shape needed to pair with customer's mechanical design.
With the assistance of the simulation software, equiment with high accuracy and simplifying assembly process, DOPO is capable of making the sample in shorter period and with lower development charge.
Projected Capacitive Touch Panel Applications
Since Projected capacitive touch panels can sense gloved hand gestures, it is a popular and logical choice for the medical and industrial industries. Its robust design also makes it a hard-wearing logical choice for point of sales and consumer products.







Multi Touch 13.3 Inch Standard Custom Projected Capacitive Resistive Touch Panel 0



Multi Touch 13.3 Inch Standard Custom Projected Capacitive Resistive Touch Panel 1



No.

Size

Item NO.

CG OD

(mm)

 CG VA

(mm)

Sensor AA

mm

Sensor/CG

Thick mm

Total

 thick

1

1”-10.1”

 I2C

P+G

Customized product

TP <10.1” are 5-point touch and TP>10.1” are 10-point touch

I2C(COF)And special USB(COF) product

G+G

G+F/F

10.4”-17”

I2C USB

P+G

Customized product 10-point touch

I2C(COF)And USB(COF),USB(COB) product

G+G

G+F/F

2

17”-

65” USB



P+G

'Customized product 10-point touch

 USB(COB) product

G+G

G+F/F

3

2”-32”

OGS

One glass screen  Customized product





All of the below items are USB interface

4

7”USB

GG-070020

182.30*122.00

155.80*87.50

155.20*87.10

0.7/0.55

1.4

5

8”USB

GG-080020

191.90*150.00

164.00*123.50

163.20*122.90

0.7/0.55

1.4

6

10.1”

GG-101020

255.00*169.00

216.00*136.00

215.00*135.00

0.7/0.55

1.4

7

10.2”

GG-102020

247.20*194.00

212.20*159.40

211.20*158.40

0.7/1.1

2

8

10.4”

GG-104010

247.20*189.40

213.20*160.40

215.20*162.40

1.1/2

3.3

9

12.1”

GG-121010

290.00*220.50

246.00*184.50

248.00*186.50

0.7/1.1

2

10

GG-121020

290.00*220.50

246.00*184.50

246.00*184.50

0.7/1.1

2

11

13.3”

GG-133010

333.40*196.00

293.4.00*165.00

295.00*166.60

0.55/1.1

1.85

12

GG-133020

329.70*210.00

296.47*168.00

295.47*167.00

0.7/1.1

2

13

14”

GG-140010

335.00*200.00

305.00*176.00

307.00*178.00

1.1/2

3.3

14

15”

GG-150010

339.90*263.90

304.00*228.00

306.00*230.00

1.1/3

4.3

15

GG-150020

331.60*254.80

307.00*232.10

306.00*231.10

0.7/1.1

2

16

GG-150021

326.00*253.40

306.00*230.00

305.00*229.00

0.7/2

2.9

17

15.6”

GG-156010

387.00*231.00

344.00*194.00

346.00*196.00

1.1/3

4.3

18

GG-156020

373.63*233.34

344.23*193.54

342.23*191.54

0.7/1.1

2

19

17”

GG-170010

377.00*309.00

339.00*271.30

340.90*273.30

1.1/3

4.3

20

GG-170020

377.00*298.00

340.92*273.34

338.92*271.34

0.7/2

3

21

17.3”

GG-173010

550.00*278.00

375.90*208.80

377.90*210.80

1.1/3

4.3

22

18.5”

GG-185010

458.00*283.00

410.80*231.40

412.80*233.40

1.1/3

4.3

23

GG-185020

443.90*273.55

412.80*233.40

410.80*231.40

0.7/1.1

2

24

18.95”

GG-189510

450.80*301.00

409.80*259.00

410.80*260.0

1.1/3

4.3

25

19”

GG-190010

421.00*346.00

377.30*302.10

379.30*304.10

1.1/3

4.3

26

GG-190020

421.00*346.00

379.32*304.96

377.32*302.96

0.7/2

2.9

27

21”

GG-210020

525.00*312.00

480.20*271.80

478.20*269.80

1.1/1.1

2.35

28

21.5”

GG-215010

524.00*321.80

478.00*269.80

478.60*270.10

1.1/3

4.3

29

22”

GG-220010

550.00*376.00

475.70*298.10

477.70*300.10

1.1/3

4.3

30

23.6”

GG-236010

573.00*349.00

525.50*297.00

527.50*299.00

1.1/3

4.3

31

27”

GG-270010

658.00*416.00

598.00*336.00

600.00*338.00

1.1/3

4.3

32

32”

GFF-320010

770.70*465.30

698.70*393.30

706.00*397.90

0.45/3

3.65

33

GG-320010

770.70*465.30

698.70*393.30

704.00*396.00

1.1/3

4.3

34

42”

GFF-420010

994.20*587.30

934.20*527.30

938.20*531.10

0.45/4

4.65

35

46”

GFF-460010

1090.80*645.40

1020.80*575.40

1033.20596.40

0.45/4

4.65

36

55”

GFF-550010

1273.00*744.40

1213.60*684.40

1205.60*678.40

0.45/4

4.65



Multi Touch 13.3 Inch Standard Custom Projected Capacitive Resistive Touch Panel 2
