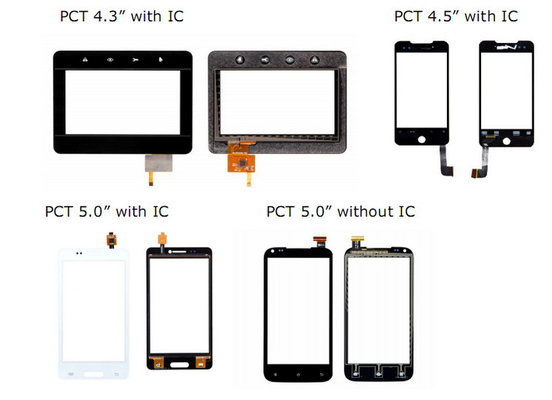

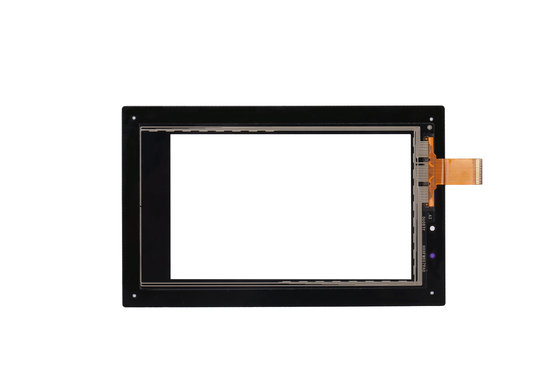

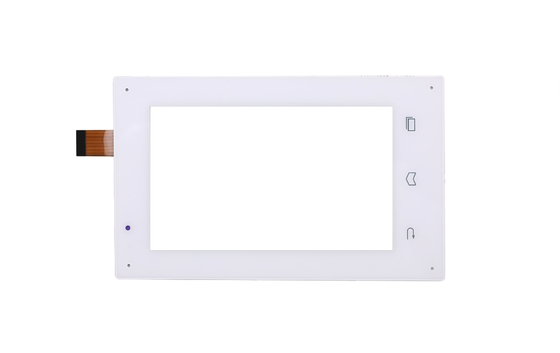

4.3 / 5 Inch IIC interface Projected Capacitive Touch Panel for Mobile Phone

4.3 / 5 Inch IIC interface Projected Capacitive Touch Panel for Mobile Phone

4.3 / 5 Inch IIC interface Projected Capacitive Touch Panel for Mobile Phone
4.3 / 5 Inch IIC interface Projected Capacitive Touch Panel for Mobile Phone 4.3 / 5 Inch IIC interface Projected Capacitive Touch Panel for Mobile Phone 4.3 / 5 Inch IIC interface Projected Capacitive Touch Panel for Mobile Phone 4.3 / 5 Inch IIC interface Projected Capacitive Touch Panel for Mobile Phone 4.3 / 5 Inch IIC interface Projected Capacitive Touch Panel for Mobile Phone

Large Image :  4.3 / 5 Inch IIC interface Projected Capacitive Touch Panel for Mobile Phone

Product Details:
Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: DPT-PCT-xx
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 60Kpcs/month
Detailed Product Description
High Light:

surface capacitive touch panel

,

projected capacitive touch screen

4.3 Inch IIC (I2C) Projected Capacitive Touch Panel for Mobile Phone , Multi Touch



DOPO catalogue V2019.pdf





Item

Specification (Some index value will be adjusted according to customizated

requirements)

1

Item NO.

DPT-PCT-0430XX

2

Detection method

Projected Capacitive

3

Size

4.3"

4

Outline dimension(mm)

See drawing

5

View area(mm)



6

Active area(mm)



7

Aspect ratio

16:9 or 4:3

8

Resolution

1024*1024

9

Input method

Finger

10

Touch action force

30~60g

11

Operating Voltage

3.3V adjustable

12

Operating current

2.5~10mA Depends on IC

13

Operating temperature

-10°C~60°C

14

Storage temperature

-15°C~40°C ,<90%RH;40°C~70°C,<60%RH

15

Humidity

10%~90%RH at 40°C, non-condensing

16

Relative humidity

10%~90%RH at 40°C, non-condensing

17

Response time

<10ms

18

Transparency

≥82% depends on the quantity of layers

19

Surface hardness

≥7H

20

Material structure

Glass+ Film or Glass+ Glass

21

Thickness

1.6mm adjustable Glass(1.1mm) +Top ITO Film(0.125mm) +Bottom ITO Film

(0.125mm)

22

Light transmission

92%~100%

23

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

24

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

25

Certificates

CE, FCC, RoHS

26

Working environment

Under sunlight,indoor and outdoor

27

Finger Touch life

≥35,000,000 times

28

Warranty

1 year



No.

Size

Item NO.

CG OD

(mm)

 CG VA

(mm)

Sensor AA

mm

Sensor/CG

Thick mm

Total

thick

1

1”-10.1”

 I2C

P+G

Customized product

TP <10.1” are 5-point touch and TP>10.1” are 10-point touch

I2C(COF)And special USB(COF) product

G+G

G+F/F

10.4”-17”

I2C/USB

P+G

Customized product 10-point touch

I2C(COF)And USB(COF),USB(COB) product

G+G

G+F/F

2

17”-

65” USB



P+G

'Customized product 10-point touch

 USB(COB) product

G+G

G+F/F

3

2”-32”

OGS

One glass screen  Customized product





All of the below items are USB interface

4

7”USB

GG-070020

182.30*122.00

155.80*87.50

155.20*87.10

0.7/0.55

1.4

5

8”USB

GG-080020

191.90*150.00

164.00*123.50

163.20*122.90

0.7/0.55

1.4

6

10.1”

GG-101020

255.00*169.00

216.00*136.00

215.00*135.00

0.7/0.55

1.4

7

10.2”

GG-102020

247.20*194.00

212.20*159.40

211.20*158.40

0.7/1.1

2

8

10.4”

GG-104010

247.20*189.40

213.20*160.40

215.20*162.40

1.1/2

3.3

9

12.1”

GG-121010

290.00*220.50

246.00*184.50

248.00*186.50

0.7/1.1

2

10

GG-121020

290.00*220.50

246.00*184.50

246.00*184.50

0.7/1.1

2

11

13.3”

GG-133010

333.40*196.00

293.4.00*165.00

295.00*166.60

0.55/1.1

1.85

12

GG-133020

329.70*210.00

296.47*168.00

295.47*167.00

0.7/1.1

2

13

14”

GG-140010

335.00*200.00

305.00*176.00

307.00*178.00

1.1/2

3.3

14

15”

GG-150010

339.90*263.90

304.00*228.00

306.00*230.00

1.1/3

4.3

15

GG-150020

331.60*254.80

307.00*232.10

306.00*231.10

0.7/1.1

2

16

GG-150021

326.00*253.40

306.00*230.00

305.00*229.00

0.7/2

2.9

17

15.6”

GG-156010

387.00*231.00

344.00*194.00

346.00*196.00

1.1/3

4.3

18

GG-156020

373.63*233.34

344.23*193.54

342.23*191.54

0.7/1.1

2

19

17”

GG-170010

377.00*309.00

339.00*271.30

340.90*273.30

1.1/3

4.3

20

GG-170020

377.00*298.00

340.92*273.34

338.92*271.34

0.7/2

3

21

17.3”

GG-173010

550.00*278.00

375.90*208.80

377.90*210.80

1.1/3

4.3

22

18.5”

GG-185010

458.00*283.00

410.80*231.40

412.80*233.40

1.1/3

4.3

23

GG-185020

443.90*273.55

412.80*233.40

410.80*231.40

0.7/1.1

2

24

18.95”

GG-189510

450.80*301.00

409.80*259.00

410.80*260.0

1.1/3

4.3

25

19”

GG-190010

421.00*346.00

377.30*302.10

379.30*304.10

1.1/3

4.3

26

GG-190020

421.00*346.00

379.32*304.96

377.32*302.96

0.7/2

2.9

27

21”

GG-210020

525.00*312.00

480.20*271.80

478.20*269.80

1.1/1.1

2.35

28

21.5”

GG-215010

524.00*321.80

478.00*269.80

478.60*270.10

1.1/3

4.3

29

22”

GG-220010

550.00*376.00

475.70*298.10

477.70*300.10

1.1/3

4.3

30

23.6”

GG-236010

573.00*349.00

525.50*297.00

527.50*299.00

1.1/3

4.3

31

27”

GG-270010

658.00*416.00

598.00*336.00

600.00*338.00

1.1/3

4.3

32

32”

GFF-320010

770.70*465.30

698.70*393.30

706.00*397.90

0.45/3

3.65

33

GG-320010

770.70*465.30

698.70*393.30

704.00*396.00

1.1/3

4.3

34

42”

GFF-420010

994.20*587.30

934.20*527.30

938.20*531.10

0.45/4

4.65

35

46”

GFF-460010

1090.80*645.40

1020.80*575.40

1033.20596.40

0.45/4

4.65

36

55”

GFF-550010

1273.00*744.40

1213.60*684.40

1205.60*678.40

0.45/4

4.65
