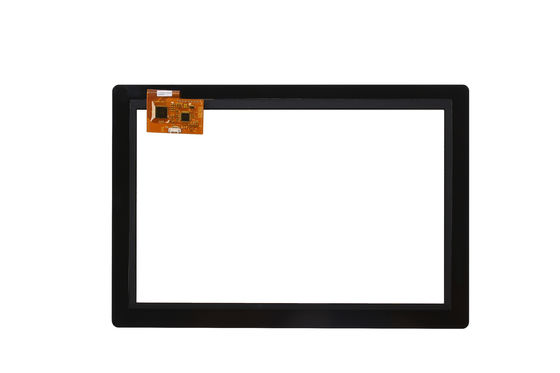

3.3V Adjustable Projective Capacitive Touch Screen Panel with I2C / USB Interface and 10.4 Inch
Standard size and customized size
№ |
Item |
Specification (Some index value will be adjusted according to customizated requirements) |
1 |
Item NO. |
DPT-PCT-1040XX |
2 |
Detection method |
Projected Capacitive |
3 |
Size |
10.4" |
4 |
Outline dimension(mm) |
see drawing |
5 |
View area(mm) |
|
6 |
Active area(mm) |
|
7 |
Aspect ratio |
16:9 or 4:3 |
8 |
Resolution |
1024*1024 |
9 |
Input method |
Finger |
10 |
Touch action force |
30~60g |
11 |
Operating Voltage |
3.3V adjustable |
12 |
Operating current |
2.5~10mA Depends on IC |
13 |
Operating temperature |
-10°C~60°C |
14 |
Storage temperature |
-15°C~40°C ,<90%RH;40°C~70°C,<60%RH |
15 |
Humidity |
10%~90%RH at 40°C, non-condensing |
16 |
Relative humidity |
10%~90%RH at 40°C, non-condensing |
17 |
Response time |
<10ms |
18 |
Transparency |
≥82% depends on the quantity of layers |
19 |
Surface hardness |
≥5H |
20 |
Material structure |
Glass+ Film or Glass+ Glass |
21 |
Thickness |
1.6mm adjustable Glass(1.1mm) +Top ITO Film(0.125mm) +Bottom ITO Film (0.125mm) |
22 |
Light transmission |
92%~100% |
23 |
Durability |
Scratch-free; More than 50,000,000 touches in one location without failure |
24 |
Drivers available |
Windows 2000,Windows XP,Windows NT,Linux,Mac |
25 |
Certificates |
CE, FCC, RoHS |
26 |
Working environment |
Under sunlight,indoor and outdoor |
27 |
Finger Touch life |
≥35,000,000 times |
28 |
Warranty |
1 year |
No. |
Size |
Item NO. |
CG OD (mm) |
CG VA (mm) |
Sensor AA mm |
Sensor/CG Thick mm |
Total thick |
|||
1 |
1”-10.1” I2C |
P+G |
Customized product TP <10.1” are 5-point touch and TP>10.1” are 10-point touch I2C(COF)And special USB(COF) product |
|||||||
G+G |
||||||||||
G+F/F |
||||||||||
10.4”-17” I2C USB |
P+G |
Customized product 10-point touch I2C(COF)And USB(COF),USB(COB) product |
||||||||
G+G |
||||||||||
G+F/F |
||||||||||
2 |
17”- 65” USB
|
P+G |
'Customized product 10-point touch USB(COB) product |
|||||||
G+G |
||||||||||
G+F/F |
||||||||||
3 |
2”-32” |
OGS |
One glass screen Customized product |
|||||||
|
|
All of the below items are USB interface |
||||||||
4 |
7”USB |
GG-070020 |
182.30*122.00 |
155.80*87.50 |
155.20*87.10 |
0.7/0.55 |
1.4 |
|||
5 |
8”USB |
GG-080020 |
191.90*150.00 |
164.00*123.50 |
163.20*122.90 |
0.7/0.55 |
1.4 |
|||
6 |
10.1” |
GG-101020 |
255.00*169.00 |
216.00*136.00 |
215.00*135.00 |
0.7/0.55 |
1.4 |
|||
7 |
10.2” |
GG-102020 |
247.20*194.00 |
212.20*159.40 |
211.20*158.40 |
0.7/1.1 |
2 |
|||
8 |
10.4” |
GG-104010 |
247.20*189.40 |
213.20*160.40 |
215.20*162.40 |
1.1/2 |
3.3 |
|||
9 |
12.1” |
GG-121010 |
290.00*220.50 |
246.00*184.50 |
248.00*186.50 |
0.7/1.1 |
2 |
|||
10 |
GG-121020 |
290.00*220.50 |
246.00*184.50 |
246.00*184.50 |
0.7/1.1 |
2 |
||||
11 |
13.3” |
GG-133010 |
333.40*196.00 |
293.4.00*165.00 |
295.00*166.60 |
0.55/1.1 |
1.85 |
|||
12 |
GG-133020 |
329.70*210.00 |
296.47*168.00 |
295.47*167.00 |
0.7/1.1 |
2 |
||||
13 |
14” |
GG-140010 |
335.00*200.00 |
305.00*176.00 |
307.00*178.00 |
1.1/2 |
3.3 |
|||
14 |
15” |
GG-150010 |
339.90*263.90 |
304.00*228.00 |
306.00*230.00 |
1.1/3 |
4.3 |
|||
15 |
GG-150020 |
331.60*254.80 |
307.00*232.10 |
306.00*231.10 |
0.7/1.1 |
2 |
||||
16 |
GG-150021 |
326.00*253.40 |
306.00*230.00 |
305.00*229.00 |
0.7/2 |
2.9 |
||||
17 |
15.6” |
GG-156010 |
387.00*231.00 |
344.00*194.00 |
346.00*196.00 |
1.1/3 |
4.3 |
|||
18 |
GG-156020 |
373.63*233.34 |
344.23*193.54 |
342.23*191.54 |
0.7/1.1 |
2 |
||||
19 |
17” |
GG-170010 |
377.00*309.00 |
339.00*271.30 |
340.90*273.30 |
1.1/3 |
4.3 |
|||
20 |
GG-170020 |
377.00*298.00 |
340.92*273.34 |
338.92*271.34 |
0.7/2 |
3 |
||||
21 |
17.3” |
GG-173010 |
550.00*278.00 |
375.90*208.80 |
377.90*210.80 |
1.1/3 |
4.3 |
|||
22 |
18.5” |
GG-185010 |
458.00*283.00 |
410.80*231.40 |
412.80*233.40 |
1.1/3 |
4.3 |
|||
23 |
GG-185020 |
443.90*273.55 |
412.80*233.40 |
410.80*231.40 |
0.7/1.1 |
2 |
||||
24 |
18.95” |
GG-189510 |
450.80*301.00 |
409.80*259.00 |
410.80*260.0 |
1.1/3 |
4.3 |
|||
25 |
19” |
GG-190010 |
421.00*346.00 |
377.30*302.10 |
379.30*304.10 |
1.1/3 |
4.3 |
|||
26 |
GG-190020 |
421.00*346.00 |
379.32*304.96 |
377.32*302.96 |
0.7/2 |
2.9 |
||||
27 |
21” |
GG-210020 |
525.00*312.00 |
480.20*271.80 |
478.20*269.80 |
1.1/1.1 |
2.35 |
|||
28 |
21.5” |
GG-215010 |
524.00*321.80 |
478.00*269.80 |
478.60*270.10 |
1.1/3 |
4.3 |
|||
29 |
22” |
GG-220010 |
550.00*376.00 |
475.70*298.10 |
477.70*300.10 |
1.1/3 |
4.3 |
|||
30 |
23.6” |
GG-236010 |
573.00*349.00 |
525.50*297.00 |
527.50*299.00 |
1.1/3 |
4.3 |
|||
31 |
27” |
GG-270010 |
658.00*416.00 |
598.00*336.00 |
600.00*338.00 |
1.1/3 |
4.3 |
|||
32 |
32” |
GFF-320010 |
770.70*465.30 |
698.70*393.30 |
706.00*397.90 |
0.45/3 |
3.65 |
|||
33 |
GG-320010 |
770.70*465.30 |
698.70*393.30 |
704.00*396.00 |
1.1/3 |
4.3 |
||||
34 |
42” |
GFF-420010 |
994.20*587.30 |
934.20*527.30 |
938.20*531.10 |
0.45/4 |
4.65 |
|||
35 |
46” |
GFF-460010 |
1090.80*645.40 |
1020.80*575.40 |
1033.20596.40 |
0.45/4 |
4.65 |
|||
36 |
55” |
GFF-550010 |
1273.00*744.40 |
1213.60*684.40 |
1205.60*678.40 |
0.45/4 |
4.65 |
