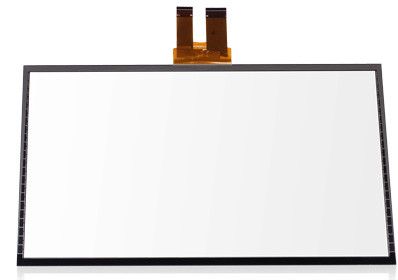

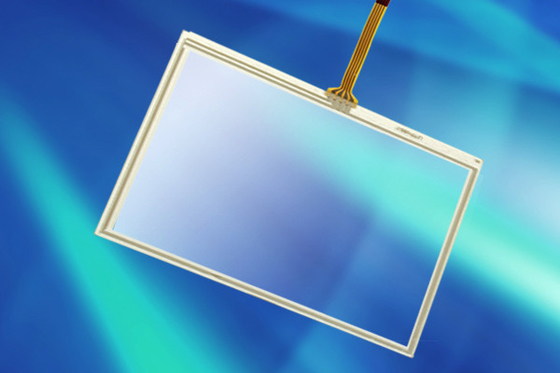

Multi Touch 23.6" 4 Wire Resistive Touch Panel LCD Digitizer with Controller,UVC

№

Item

Specification

1

Item NO.

DPT-4W-xxxxxx

2

Detection method

Four wire Resistive

3

Size

See engineering drawing

4

Aspect ratio

4:3

5

Input method

Finger or touch pen

6

Touch action force

20~80g

7

Position accuracy

4.5mm

8

Operating Voltage

DC≤10V

9

Operating current

5~25mA

10

Operating temperature

-10°C~60°C

11

Storage temperature

-20°C~70°C

12

Humidity

10%~90% RH at 60°C, non-condensing

13

Relative humidity

10%~90% RH at 40°C, non-condensing

14

Response time

<10ms

15

Transparency

≥80%

16

Surface hardness

3H

17

Material

Glass + film

18

Thickness

ITO Glass:1.8mm

ITO Film:0.188mm

19

Light transmission

92%~100%

20

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

21

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

22

Surface Disposal

Glare hard coating;  Anti-Newton ring

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Pen hitting life

≥10,000,000/point

26

Pen sliding Durability

≥500,000 times

27

Finger Touch life

≥35,000,000 times

28

Surface resistance

200Ω~900Ω

29

Isolation resistance

≥20MΩ    @ DC 25V

30

Linearity

≤1.5%

31

X.Y resistance

X:180Ω~480Ω  Y:500Ω~1080Ω

32

 Warranty

1 year

Item No.

4W-M236001

Type

AMR (Analog type)

Structure

ITO Film / ITO Glass

Outline Dimensions

544.80*320.5*2.13mm

View Area

523.50*295.50mm

Active Area

522.50*294.50mm

TP Size (inch, diagonal)

23.6

Connector

FPC

Input Method

stylus or finger

Input Force

30g-80g

Operation Voltage

5V

Transmittance

>78%

Linearity

± 1.5% error or less for X and Y axis.

Operation Environment

-10°C to 35°C, humidity 10%~90%

>35°C to 50℃, humidity 10%~60%

Storage Environment

-30°C to 35°C, humidity 10%~90%

>35°C to 70℃, humidity 10%~60%

Hitting life

Pen sliding: more than 100k times

Pen hitting: more than 1M times.

Finger Touch: more than 5M times.

ROHS, REACH, PTH, PAHs, NP

No.

Size

Item NO.

OD&thickness (mm)

VA(mm)

AA(mm)

1

4.7”

4W-M047001

113*69*1

109*62

104.7*60

2

4.9”

4W-M049001

113*65*1.5

109*59

108.4*58.4

3

5.5”

4W-M055001

137.16*90.93*1.4

125.98*76.9

121.52*69.86

4

7.0”

4W-M070001

167.1*92.8*1.2

158*84.60

156.4*83.12

5

7.1”

4W-M071001

161.1*101.1*1.4

154.45*94.75

154.45*94.75

6

8.5”

4W-M085001

182.7*142.65*1.4

173.8*131.2

171.8*129.2

7

10.4”

4W-M104001

225.50*176.30* 2.13

214.23* 161.64

211.73* 159.12

8

13.3”

4W-M133001

307.60*183.10*2.13

296.42*167.97

295.42*166.97

9

18.5”

4W-M185001

430.37*254.60*2.13

413.20*233.80

411*231.60

10

19”

4W-M190001

432.00*278.00*2.13

416.42*258.50

411.20*257.30

11

20”

4W-M200001

462.80*272.00*2.13

445.80*252.20

443.80*250.20

12

23”

4W-M230001

533.20*312*2.13

513.78*291.02

509.18*286.42

13

23.6”

4W-M236001

544.80*320.5*2.13

523.50*295.50

522.50*294.50
