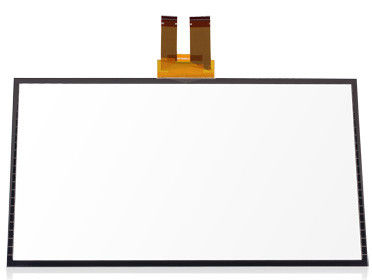

23 Inch Multi Touch 4W Resistive Touch Panel for LCD Display

23 Inch Multi Touch 4W Resistive Touch Panel for LCD Display

23 Inch Multi Touch 4W Resistive Touch Panel for LCD Display
23 Inch Multi Touch 4W Resistive Touch Panel for LCD Display 23 Inch Multi Touch 4W Resistive Touch Panel for LCD Display

Large Image :  23 Inch Multi Touch 4W Resistive Touch Panel for LCD Display

Product Details:
Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: DPT-4W-M230001
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 20Kpcs/month
Detailed Product Description
Highlight:

resistive touch screens

,

4 wire resistive touch screen

23 Inch Multi Touch 4W Resistive Touch Panel for LCD Display


Quick Detail:

1.Material: Glass + film
2.Aspect ratio: 4:3
3.Input method: Finger or touch pen
4.Thickness: ITO Glass:1.8mm,ITO Film:0.188mm
5.Surface hardness: 3H
6.Detection method: Four wire Resistive


Specification


23 Inch Multi Touch 4W Resistive Touch Panel for LCD Display 0






4W Multi-touch Resistive touch panel


No.

Size

Item NO.

OD&thickness (mm)

VA(mm)

AA(mm)

1

4.7”

4W-M047001

113*69*1

109*62

104.7*60

2

4.9”

4W-M049001

113*65*1.5

109*59

108.4*58.4

3

5.5”

4W-M055001

137.16*90.93*1.4

125.98*76.9

121.52*69.86

4

7.0”

4W-M070001

167.1*92.8*1.2

158*84.60

156.4*83.12

5

7.1”

4W-M071001

161.1*101.1*1.4

154.45*94.75

154.45*94.75

6

8.5”

4W-M085001

182.7*142.65*1.4

173.8*131.2

171.8*129.2

7

10.4”

4W-M104001

225.50*176.30* 2.13

214.23* 161.64

211.73* 159.12

8

13.3”

4W-M133001

307.60*183.10*2.13

296.42*167.97

295.42*166.97

9

18.5”

4W-M185001

430.37*254.60*2.13

413.20*233.80

411*231.60

10

19”

4W-M190001

432.00*278.00*2.13

416.42*258.50

411.20*257.30

11

20”

4W-M200001

462.80*272.00*2.13

445.80*252.20

443.80*250.20

12

23”

4W-M230001

533.20*312*2.13

513.78*291.02

509.18*286.42

13

23.6”

4W-M236001

544.80*320.5*2.13

523.50*295.50

522.50*294.50




Item No.

4W-M230001

Type

 Multi-Touch (Analog type)

Structure

ITO Film / ITO Glass

Outline Dimensions

533.20*312*2.13mm

View Area

513.78*291.02mm

Active Area

509.18*286.42mm

TP Size (inch, diagonal)

23

Connector

FPC

Input Method

Touch stylus or finger

Input Force

30g-80g

Operation Voltage

5V

Transmittance

>78%

Linearity

± 1.5% error or less for X and Y axis.

Operation Environment

-10°C to 35°C, humidity 10%~90%



>35°C to 50℃, humidity 10%~60%

Storage Environment

-30°C to 35°C, humidity 10%~90%



>35°C to 70℃, humidity 10%~60%

Hitting life

Pen sliding: more than 100k times



Pen hitting: more than 1M times.



Finger Touch: more than 5M times.

ROHS, REACH, PTH, PAHs, NP





23 Inch Multi Touch 4W Resistive Touch Panel for LCD Display 1



23 Inch Multi Touch 4W Resistive Touch Panel for LCD Display 2
