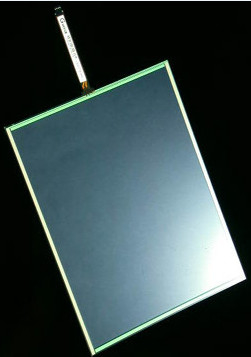

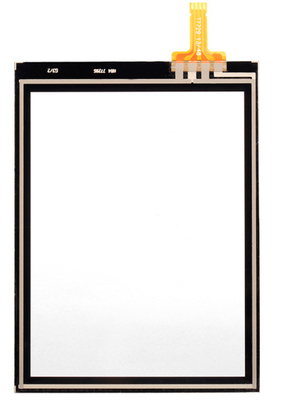

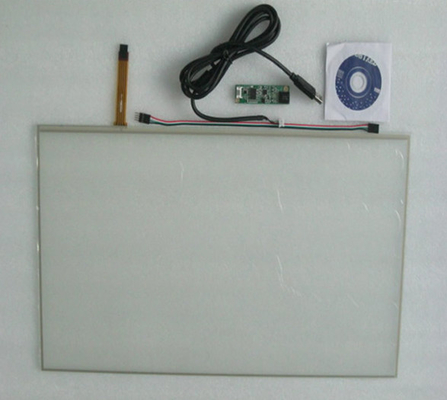

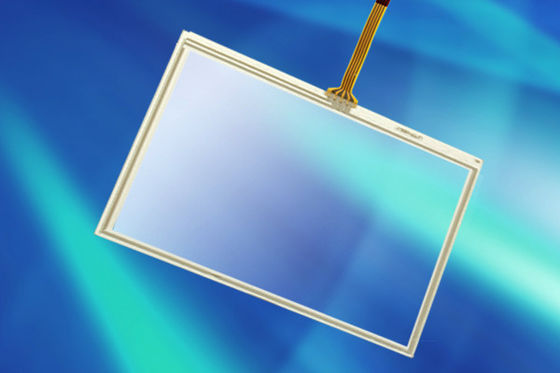

Glass To Film Resistive Multi Touch Screen Panel with USB Interface and Four Wire TP

№

Item

Specification

1

Item NO.

DPT-4W-xxxxxx

2

Detection method

Four wire Resistive

3

Size

See engineering drawing

4

Aspect ratio

4:3

5

Input method

Finger or touch pen

6

Touch action force

20~80g

7

Position accuracy

4.5mm

8

Operating Voltage

DC≤10V

9

Operating current

5~25mA

10

Operating temperature

-10°C~60°C

11

Storage temperature

-20°C~70°C

12

Humidity

10%~90% RH at 60°C, non-condensing

13

Relative humidity

10%~90% RH at 40°C, non-condensing

14

Response time

<10ms

15

Transparency

≥80%

16

Surface hardness

3H

17

Material

Glass + film

18

Thickness

ITO Glass:1.8mm

ITO Film:0.188mm

19

Light transmission

92%~100%

20

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

21

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

22

Surface Disposal

Glare hard coating;  Anti-Newton ring

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Pen hitting life

≥10,000,000/point

26

Pen sliding Durability

≥500,000 times

27

Finger Touch life

≥35,000,000 times

28

Surface resistance

200Ω~900Ω

29

Isolation resistance

≥20MΩ    @ DC 25V

30

Linearity

≤1.5%

31

X.Y resistance

X:180Ω~480Ω  Y:500Ω~1080Ω

32

 Warranty

1 year

No.

Size

Item NO.

OD(mm)

 VA(mm)

AA(mm)

1

Customized size 2”-10.1” with small pin and no controller

2

2.0”

DPT-4W-0200135

50.50*38.00

40.60*33.80

39.60*32.68

3

2.5”

DPT-4W-0250106

63.00*29.00

59.80*23.80

25.00*22.30

4

2.8”

DPT-4W-0280131

68.80*48.80

59.00*44.80

58.00*43.80

5

DPT-4W-0280194

66.72*45.00

60.00*35.48

57.00*33.48

6

3.0”

DPT-4W-0300115

72.00*39.00

67.30*34.00

62.30*31.80

7

DPT-4W-0300130

66.00*64.00

53.90*58.50

52.90*50.50

8

DPT-4W-0300199A

76.69*55.00

67.79*51.60

66.79*50.60

9

DPT-4W-0300199B

76.69*55.00

67.79*51.60

66.79*50.60

10

3.2”

DPT-4W-0320128

77.50*49.80

71.90*40.10

71.50*39.70

11

DPT-4W-0320174

72.00*50.00

67.30*44.00

62.30*41.80

12

3.3”

DPT-4W-0330038

82.00*24.00

78.00*18.50

/

13

DPT-4W-0330061

75.60*59.50

68.60*52.50

/

14

3.5”

DPT-4W-0350018

76.00*68.60

64.00*61.60

/

15

DPT-4W-0350122

85.00*64.00

76.2*58.40

75.80*58.00

16

DPT-4W-0350129

77.20*55.10

71.00*50.70

69.00*49.20

17

3.6”

DPT-4W-0360200A

80.00*65.00

77.00*55.90

76.00*54.90

18

DPT-4W-0360200B

80.00*65.00

77.00*55.90

76.00*54.90

19

4.2”

DPT-4W-0420035

101.00*61.00

94.00*52.00

/

20

4.3”

DPT-4W-0430008

104.70*64.90

99.00*57.60

96.40*55.00

21

DPT-4W-0430044

102.00*62.50

97.40*56.30

95.64*54.46

22

DPT-4W-0430097

104.50*65.90

96.74*57.05

95.74*54.50

23

5.0”

DPT-4W-0500028

119.10*73.20

115.10*67.00

110.80*67.00

24

DPT-4W-0500034

117.50*70.00

112.50*65.00

112.00*65.00

25

DPT-4W-0500122

120.00*73.50

115.10*67.50

110.80*66.22

26

DPT-4W-0500192

120.70*76.30

111.20*68.20

108.30*65.10

27

5.2”

DPT-4W-0520011

131.00*78.00

114.00*64.00

108.00*58.00

28

5.6”

DPT-4W-0560041

126.50*100.00

113.80*85.90

112.80*84.90

29

5.7”

DPT-4W-0570012

132.50*104.70

122.00*93.85

115.17*86.37

30

DPT-4W-0570055

133.00*103.00

123.00*93.00

115.17*86.36

31

DPT-4W-0570081

130.00*97.00

120.00*91.00

116.04*87.00

32

DPT-4W-0570108

129.50*101.50

117.30*87.90

112.50*83.80

33

6.1”

DPT-4W-0610147

149.00*82.90

138.20*74.00

135.00*70.80

34

6.2”

DPT-4W-0620002

154.80*87.80

140.70*80.00

137.52*77.22

35

DPT-4W-0620002B

155.20*88.20

140.70*80.00

135.05*75.40

36

DPT-4W-0620045

155.20*88.20

138.82*78.53

135.82*75.53

37

DPT-4W-0620064

154.80*87.80

143.50*80.62

135.80*75.50

38

DPT-4W-0620074

154.30*87.20

140.80*80.00

135.80*75.00

39

DPT-4W-0620104

155.00*88.00

142.40*80.43

135.40*75.30

40

DPT-4W-0620120

152.75*87.55

142.35*79.95

134.65*72.40

41

6.5”

DPT-4W-0650001

155.00*88.00

139.70*78.80

136.40*75.60

42

DPT-4W-0650168

154.80*89.10

146.40*80.55

142.38*76.30

43

6.7”

DPT-4W-0670123

154.00*105.00

144.20*92.00

142.20*90.00

44

6.95”

DPT-4W-0695140

166.50*92.50

159.24*84.87

154.40*80.56

45

DPT-4W-0695142

166.95*92.90

159.35*84.80

157.15*79.70

46

DPT-4W-0695148

166.70*92.50

158.60*84.25

154.50*80.50

47

7.0”

DPT-4W-0700007

165.00*100.00

157.00*90.00

152.00*85.00

48

DPT-4W-0700021

164.60*103.60

155.70*94.70

152.40*91.44

49

DPT-4W-0700026

166.77*92.50

158.60*84.25

154.50*80.50

50

DPT-4W-0700030

164.50*99.50

155.30*87.22

150.40*83.50

51

DPT-4W-0700046

164.90*99.90

157.00*87.90

152.60*83.53

52

DPT-4W-0700047

164.80*99.80

156.30*89.30

154.30*86.80

53

DPT-4W-0700056

164.90*100.00

155.50*88.50

153.50*86.00

54

DPT-4W-0700060

164.90*100.00

155.60*88.64

152.60*83.94

55

DPT-4W-0700065B

164.80*100.00

155.60*88.64

152.60*85.64

56

DPT-4W-0700069

161.20*97.00

156.20*88.80

155.60*88.20

57

DPT-4W-0700072

164.50*99.70

157.30*89.70

153.08*83.92

58

DPT-4W-0700073

164.90*99.90

157.50*89.90

149.60*83.49

59

DPT-4W-0700076

164.50*99.60

155.50*88.50

153.50*86.00

60

DPT-4W-0700079

164.80*99.90

155.90*90.40

152.70*85.70

61

DPT-4W-0700087

164.80*100.00

156.80*91.30

149.74*82.30

62

DPT-4W-0700092

164.70*99.80

154.60*87.64

151.60*84.64

63

DPT-4W-0700110

162.60*97.60

156.00*89.52

152.50*84.85

64

DPT-4W-0700117

164.40*99.90

154.20*91.25

151.94*84.70

65

DPT-4W-0700119

164.30*98.70

156.68*88.52

155.68*87.52

66

DPT-4W-0700126

163.60*98.90

156.40*89.30

151.35*84.20

67

DPT-4W-0700153

163.65*100.46

156.60*93.00

154.60*91.00

68

DPT-4W-0700157

164.90*99.00

157.25*90.10

155.25*88.10

69

DPT-4W-0700162

165.30*93.00

149.10*76.80

145.10*72.80

70

DPT-4W-0700169

164.90*100.00

156.70*89.10

152.38*84.70

71

7.1”

DPT-4W-0710116

167.39*104.10

157.20*94.80

155.00*92.00

72

8.0”

DPT-4W-0800004

192.20*116.00

183.00*105.70

175.80*99.30

73

DPT-4W-0800071

192.30*116.40

180.10*103.40

174.00*96.50

74

DPT-4W-0800082

192.56*116.80

182.60*106.00

173.60*96.50

75

DPT-4W-0800109

182.70*140.50

160.40*125.40

161.88*121.80

76

8.1”

DPT-4W-0810005

192.40*115.86

180.10*103.78

175.64*98.36

77

8.4”

DPT-4W-0810138

191.17*141.50

171.40*131.80

172.40*129.80

78

9.0”

DPT-4W-0900075

210.70*126.10

201.00*114.70

197.00*110.70

79

DPT-4W-0900185

210.50*124.30

200.40*114.48

198.60*112.68

80

DPT-TP-090W4H1

233.00*120.60

225.00*101.50

221.00*97.50

No.

Size

Item NO.

OD(mm)

VA(mm)

AA(mm)

1

2”-22”

Customized size

2

9.7”

TP097W4H1

210.00*164.00

200.91*152.26

196.61*147.46

3

TP097W4L1

234.70*115.60

223.30*103.10

220.30*100.10

4

10”

TP100W4LN

224.50*169.50

211.00*160.50

206.00*155.50

5

10.1”

TP101W4L1

234.40*142.30

228.60*131.80

225.60*128.30

6

TP101W4N2

234.00*142.00

226.50*129.00

224.50*127.00

7

10.2”

TP102W4K

233.00*143.80

223.40*132.20

221.40*130.20

8

TP102W4L1

235.00*145.90

224.90*136.11

222.00*133.20

9

TP102W4N1

235.00*145.00

228.00*135.90

224.00*132.50

10

TP102W4N2

228.50*148.50

220.50*139.20

217.00*136.20

11

TP102W4N3

228.50*148.50

220.50*139.20

217.00*136.20

12

TP102W4N5

234.50*135.00

227.50*130.00

226.10*128.60

13

10.4”

TP104W4BZ

234.00*178.00

216.00*163.40

212.00*159.40

14

TP104W4H1

224.50*172.00

214.20*161.60

212.20*172.00

15

TP104W4H3

229.00*171.50

220.00*165.00

212.00*157.00

16

TP104W4L1

225.40*175.90

215.00*162.20

211.20*158.40

17

TP104W4L2

221.00*171.10

209.00*158.50

203.00*152.50

18

TP104W4N1

228.50*175.50

218.00*167.50

216.00*165.50

19

TP104W4N2

225.55*172.95

215.00*162.20

211.20*158.80

20

TP104W4N3

235.00*143.00

225.70*128.20

222.70*125.20

21

TP104W4N5

225.55*172.95

215.00*165.21

209.70*158.80

22

TP104W4N6

228.00*175.00

214.40*161.50

213.20*160.30

23

TP104W4N7

224.00*168.50

209.00*158.50

203.00*152.50

24

TP104W4N8

228.00*175.00

213.20*160.40

211.20*158.40

25

TP104W4N9

225.55*172.95

215.00*162.20

214.00*161.00

26

TP104W4N10

225.30*172.80

215.50*162.00

211.50*158.00

27

TP104W4N11

225.00*173.50

215.80*162.70

213.00*159.90

28

10.5”

TP105W4N1

227.60*174.40

213.10*174.40

210.10*157.10

29

10.6”

TP106W4N1

259.60*117.30

250.00*103.50

248.00*101.50

30

11.4”

TP114W4H1

244.50*186.50

236.00*177.50

173.50*231.00

31

12.1”

TP121W4BZ

266.00*203.20

253.50*191.50

248.00*186.00

32

TP121W4H2

271.00*206.00

254.00*192.00

248.00*186.00

33

TP121W4K

275.82*178.03

264.12*166.20

261.12*163.20

34

TP121W4N2

260.00*200.00

252.00*190.00

248.00*186.00

35

TP121W4N3

260.80*203.20

248.00*187.20

245.00*184.20

36

TP121W4N4

279.00*166.84

271.01*153.68

268.01*150.68

37

TP121W4N6

261.00*198.60

250.80*190.60

249.80*188.20

38

TP121W4N7

260.00*200.00

247.80*186.00

243.20*182.30

39

12.2”

TP122W4N1

275.50*178.00

264.00*167.50

262.00*164.50

40

13”

TP130W4N1

299.00*173.30

280.40*152.70

280.40*152.70

41

13.3”

TP133W4K

310.40*181.60

297.40*168.60

294.40*165.60

42

TP133W4L1

292.00*216.00

274.30*206.00

272.30*204.00

43

TP133W4N1

285.00*217.00

275.00*207.00

270.00*202.00

44

TP133W4N3

305.00*183.50

297.00*172.00

291.00*164.00

45

TP133W4N4

296.40*191.40

288.00*181.00

286.00*179.00

46

14.1”

TP141W4BZ

298.00*227.00

289.00*218.00

285.00*214.00

47

TP141W4K

319.50*203.20

307.00*193.10

303.74*189.84

48

TP141W4N3F

323.50*191.99

313.40*177.95

309.40*173.95

49

TP141W4N4

319.10*203.10

307.00*193.20

303.36*189.60

50

TP141W4N5

323.50*191.99

313.40*177.95

309.40*173.95

51

15”

TP150W4BD

322.00*247.00

310.50*236.00

302.00*226.00

52

TP150W4BZ

322.00*247.00

310.50*236.00

304.00*228.00

53

TP150W4K

346.20*217.00

331.20*207.00

327.20*203.00

54

TP150W4N1

320.30*243.40

309.00*233.00

306.00*230.00

55

TP150W4N2

324.50*248.70

308.10*232.10

306.10*230.10

56

TP150W4N3

322.00*247.00

308.10*232.10

306.10*230.10

57

TP150W4N4

322.00*247.00

310.50*236.00

304.00*228.00

58

15.4”

TP154W4K

344.00*222.00

335.00*210.70

331.20*207.00

59

TP154W4KN

344.00*222.00

335.00*210.70

331.20*207.00

60

15.6”

TP156W4K

363.80*215.90

347.30*196.60

344.30*193.60

61

TP156W4N2

359.00*209.20

344.00*194.00

341.008191.00

62

TP156W4N3

359.00*209.20

348.30*197.60

344.30*193.60

63

TP156W4N4

359.30*209.50

345.56*194.99

344.16*193.59

64

17”

TP170W4BZ

355.00*288.00

341.50*275.00

337.00*269.00

65

TP170W4K

382.20*239.50

367.20*229.50

363.20*225.50

66

TP170W4KN

381.50*243.00

371.00*232.50

367.60*229.10

67

17.3”

TP173W4K

397.50*232.00

385.50*218.00

383.50*216.00

68

TP173W4L1

397.70*232.40

384.98*217.77

382.98*215.77

69

TP173W4L2

396.00*230.00

387.00*219.00

382.00*214.00

70

TP173W4N2

397.80*232.50

386.10*219.00

381.60*214.50

71

18.4”

TP184W4K

421.20*244.90

412.00*232.50

409.00*229.50

72

18.5”

TP185W4K

424.00*243.00

410.00*231.00

406.00*227.00

73

TP185W4KN

429.37*253.60

413.39*234.00

409.79*230.40

74

TP185W4N2

429.37*253.60

413.39*234.00

409.79*230.40

75

19”

TP190W4BZ

396.00*323.00

377.00*304.00

375.00*300.00

76

TP190W4K

426.40*266.50

410.40*256.50

406.40*252.50

77

TP190W4KL

426.00*276.00

414.00*260.00

410.00*256.00

78

TP190W4KN

426.00*276.00

414.00*260.00

410.00*256.00

79

TP190W4N2

426.00*276.00

410.24*259.15

407.40*254.00

80

19.5”

TP195W4N1

452.00*263.00

435.00*243.06

430.00*238.00

81

20”

TP200W4BZ

430.00*322.00

413.00*311.00

408.00*306.00

82

21.5”

TP215W4K

490.00*285.00

480.00*270.00

476.00*266.00

83

TP215W4L1

495.00*292.00

479.00*271.30

476.00*268.00

84

22”

TP220W4

488.00*310.00

475.20*297.00

472.20*294.00

85

4W-TP220W4H1

491.00*318.00

477.00*300.00

475.00*297.60

86

4W-TP220W4N1

487.70*315.00

477.70*300.10

473.76*296.10

87

22”-52”

4W Film/Film

Customized FF-RTP
