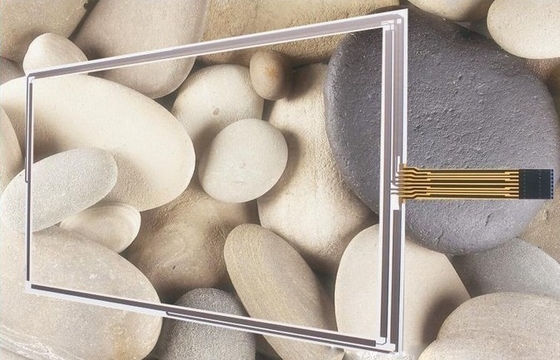

4 Wire F/F Resistive Touch Panel Screen for 52 Inch LCD Display / Computer

4 Wire F/F Resistive Touch Panel Screen for 52 Inch LCD Display / Computer

4 Wire F/F Resistive Touch Panel Screen for 52 Inch LCD Display / Computer
4 Wire F/F Resistive Touch Panel Screen for 52 Inch LCD Display / Computer 4 Wire F/F Resistive Touch Panel Screen for 52 Inch LCD Display / Computer

Large Image :  4 Wire F/F Resistive Touch Panel Screen for 52 Inch LCD Display / Computer

Product Details:
Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: DPT-4W-FF5200A FF5200B
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 60Kpcs/month
Detailed Product Description
Highlight:

resistive touch screens

,

4 wire resistive touch screen

4 Wire F/F Resistive Touch Panel Screen for 52 Inch LCD Display / Computer





Quick Detail:



1.Material: Glass + film

2.Aspect ratio: 4:3

3.Input method: Finger or touch pen

4.Thickness: ITO Glass:1.8mm,ITO Film:0.188mm

5.Surface hardness: 3H

6.Detection method: Four wire Resistive





Specification



Item

Specification

1

Item NO.

DPT-4W-xxxxxx

2

Detection method

Four wire Resistive

3

Size

See engineering drawing

4

Aspect ratio

4:3

5

Input method

Finger or touch pen

6

Touch action force

20~80g

7

Position accuracy

4.5mm

8

Operating Voltage

DC≤10V

9

Operating current

5~25mA

10

Operating temperature

-10°C~60°C

11

Storage temperature

-20°C~70°C

12

Humidity

10%~90% RH at 60°C, non-condensing

13

Relative humidity

10%~90% RH at 40°C, non-condensing

14

Response time

<10ms

15

Transparency

≥80%

16

Surface hardness

3H

17

Material

Glass + film

18

Thickness

ITO Glass:1.8mm

ITO Film:0.188mm

19

Light transmission

92%~100%

20

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

21

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

22

Surface Disposal

Glare hard coating;  Anti-Newton ring

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Pen hitting life

≥10,000,000/point

26

Pen sliding Durability

≥500,000 times

27

Finger Touch life

≥35,000,000 times

28

Surface resistance

200Ω~900Ω

29

Isolation resistance

≥20MΩ    @ DC 25V

30

Linearity

≤1.5%

31

X.Y resistance

X:180Ω~480Ω  Y:500Ω~1080Ω

32

 Warranty

1 year
