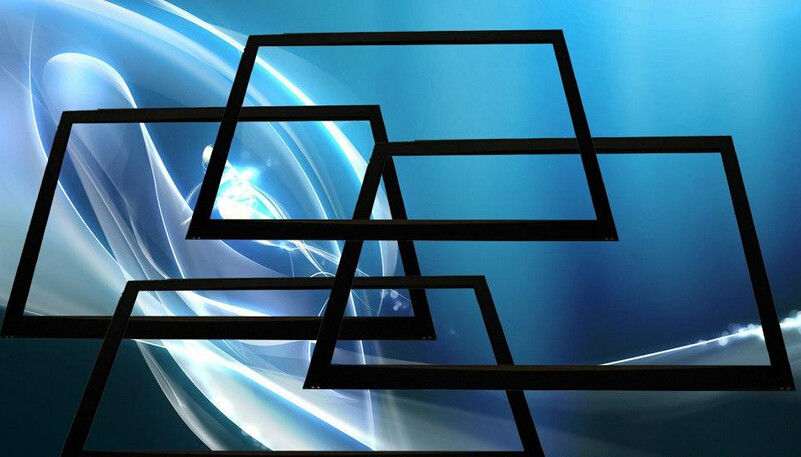

Waterproof Infrared Touch Screen Panel

Waterproof Infrared Touch Screen Panel

Waterproof Infrared Touch Screen Panel
Waterproof Infrared Touch Screen Panel Waterproof Infrared Touch Screen Panel Waterproof Infrared Touch Screen Panel Waterproof Infrared Touch Screen Panel Waterproof Infrared Touch Screen Panel

Large Image :  Waterproof Infrared Touch Screen Panel

Product Details:
Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC,ROHS
Model Number: DPT-IR-xx
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: Standard export package
Delivery Time: 7-15 working days
Payment Terms: T/T,westen union
Supply Ability: 20Kpcs/month
Detailed Product Description
Highlight:

infrared touch screens

,

lcd touch panel

Abrasion-Resistant Infrared Touch Panel Waterproof Touch Screens With High Transparency


No.

Size

Item NO.

Outline Dimension
(mm)  OD

Viewing Area(mm)
VA

Action Area(mm)
AA

1

10”-350”

Customized size







2

17”

IR-170001S

380.00*312.00

342.00*274.00

340.00*272.00

3

18.5”

IR-185003S

451.40*272.00

413.40*234.00

411.40*232.00

4

19”

IR-190001S

418.00*343.00

380.00*315.00

378.00*313.00

5

19”Wide

IR-190002S

450.20*297.00

412.00*259.00

410.20*257.00

6

20”

IR-200001S

484.80*291.10

446.80*253.10

444.80*251.10

7

21.5”

IR-215001S

518.60*310.10

480.60*272.10

478.60*270.10

8

22”

IR-220001S

518.00*340.50

482.00*304.50

478.00*300.50

9

23.6”

IR-236001S

563.30*335.20

527.30*299.20

523.30*295.20

10

24”

IR-240001S

562.50*368.00

526.50*332.00

522.50*328.00

11

26”

IR-260001S

592.00*386.00

556.00*350.00

552.00*346.00





IR-Txx=
 ten-point touch

Customized size for 24”-350” ten-point touch

12

31.5”

IR-T315001

741.00*436.00

703.00*398.00

698.00*393.00

13

42”

IR-T420001

974.00*567.00

936.00*529.00

931.00*524.00

14

46”

IR-T460001

1061.00*616.00

1023.00*578.00

1018.00*573.00

15

55”

IR-T550001

1148.00*665.00

1110.00*627.00

1105.00*622.00

16

IR-T550002

1253.00*724.00

1215.00*686.00

1210.00*681.00

17

60”

IR-T600001

1372.00*791.00

1334.00*753.00

1329.00*748.00

18

65”

IR-T650001

1472.00*847.00

1434.00*809.00

1429.00*804.00

19

70”

IR-T700001

1592.50*914.50

1554.50*876.50

1549.50*871.50


Waterproof Infrared Touch Screen Panel 0

Infrared touch screen is waterproof and maintenance free with highest transparency. The preferred solution for application, reliability and clarity. Leasing touch technology combines superior optical performance with excellent gasket-sealing capabilities, so its an excellent choice for harsh industrial and outdoor kiosk applications. Touched with a finger, gloved hand, fingernail, or stylus, it delivers a fast, accurate response every time. DOPO touch infrared technology is available for standard size and large size panel solutions.
Advantage
■ Withstands severe environments
■ Stable, no-drift calibration performance
■ Vandal- and abrasion-resistant screens, ideal for rugged applications
■ Parallax-free performance for LCD displays
■ Sealable against contaminants
■ Operable in various light conditions, indoor and outdoor


Application
■ Point-of-information kiosks
■ Vending and ticket sales
■ Electronic catalogs
■ Gaming, lottery, and amusement
■ Public pay phones
■ Multimedia marketing
■ Banking/financial transactions
■ Industrial control rooms
■ Computer-based training


Waterproof Infrared Touch Screen Panel 1
Waterproof Infrared Touch Screen Panel 2
Waterproof Infrared Touch Screen Panel 3

Waterproof Infrared Touch Screen Panel 4
