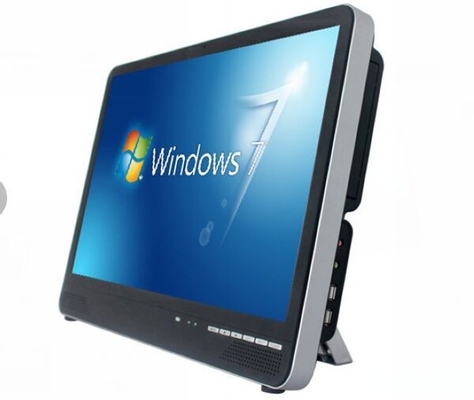

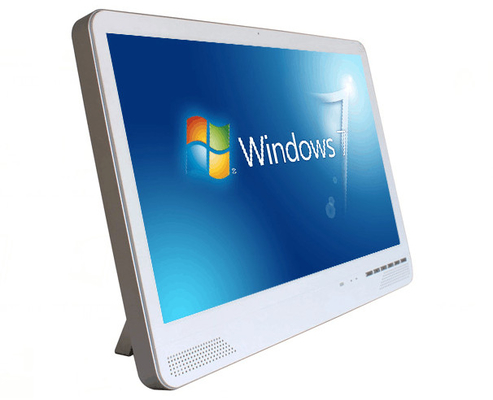

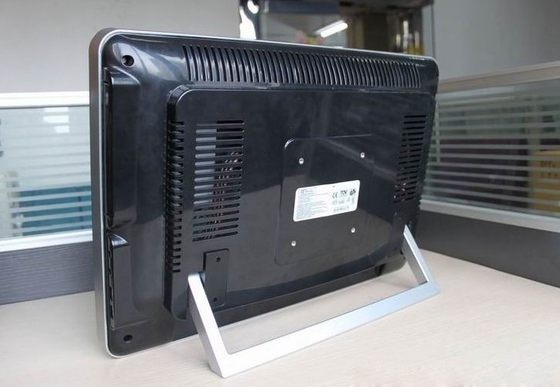

Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G

Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G

Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G
Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G

Large Image :  Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G

Product Details:
Place of Origin: China
Brand Name: Dopo touch
Certification: CE,FCC
Model Number: DPT-AIP-215010
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Packaging Details: Film+foam+wooden box
Delivery Time: 15-20 working days
Payment Terms: T/T,westen union
Supply Ability: 800pcs/month
Detailed Product Description
Highlight:

car player touch screen

,

capacitive touch panel

21.5 Inch Industrial Touch Screen All In One PC with 1037 Dual Core 1.8G / 2G / 160G





★D525 dual core 1.8G/2G/160G

★inner WIFI

★65MM BODY THICKNESS

Key features

1) Good apperaance

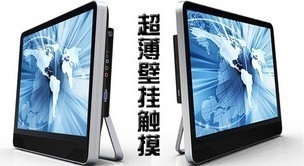

All in one items, body thickness is 65MM and gross weight is 10KG,support desktop and wall mounted

two ways

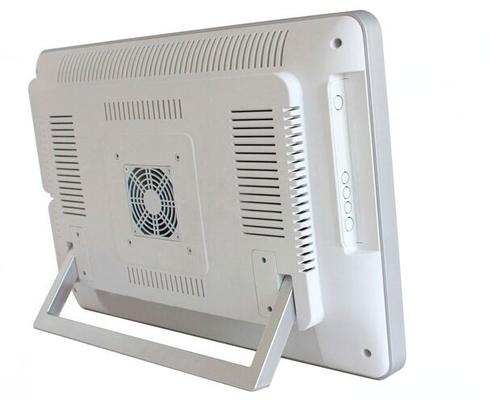

2) Special design for heat dissipation

3) All wires are inner, only power cable outside

4) Low-power customption solution, ROHS

5) High-performance graphics card, support DX10 card

6) Support 720P, 1080P video display, HD audio output

7) Easy update, standard 160G HD and can be extended to 1TG; standard 1G RAM and can be etended to

4G

8) So many interfaces for difference device.

9) Touch display

10) Display function HDMI,YPbPr,AV,S-VIDEO interface easy to connect with STB and DVD



Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G 0

Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G 1



Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G 2



Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G 3



Low Power Industrial Car Touch Panel 21.5 Inch With 1037 Dual Core 1.8G 2G 160G 4





21.5”all-in-one PC hardware list

Part

Specification

CPU

Intel ATOM 1.8G dual core

Radiator

No fan no noise

Motherboard

D525KT INTEL ultra-low-power

RAM

Kingston 2G DDR3 1333

HD

Seagate 160G 7200 turns (generation3)

Graphic card

Integrated Intel GMA 3150 high graphic card 1080P

Audio card

Intefrated 6 tracks chip

Net card

Intgrated 10-100M seld-adaption net card

Other ports

Two ports for PS/2 for mouse and keyboard

One port of serial port

One port of parellel port

Four ports of USB2.0

LCD

Brand:CHIMEI(From Taiwan China)

Size:21.5”

Resolution:1920X1080

Dot pitch:0.276mm

Screen Ratio:16:9

brightness:300cd/m2

dynamic contrast ratio:10Million:1

Response time:5ms

TOUCH SCREEN

1)circuit grade:5VDC35mA
2)surface hardness:3H
3)light transimittance:>90%
4)touch life:>35M
5)Pen-touch life:>5M
6)Touch point shake time:<10ms
7)Resolution:4096*4096
8)Working temperature:-10℃~+60℃
9)Storage temperature:-20℃~+70℃
10)Linearity<1.5%
11)Operating pressure:10g~100g
12)Glass thichness:2.0mm,
13)Glass:chemical tempered glass

POWER

12V 7A outer adapter

Audio box

HQ 3D surrounding

Optional parts (The folloiwng parts are not involved in standard quotation)

TV

To add TV function(USD30)

WIFI

150M wireless internet (USD20)

Keyboard and mouse

Wire keyboard and mouse (USD20)

Wireless keyboard and mouse (USD20)

Remark

1:Preassemble XP SP3 or WIN 7 testing version
2:Preassemble some common office tools
3:Preassemble one-key-reset
