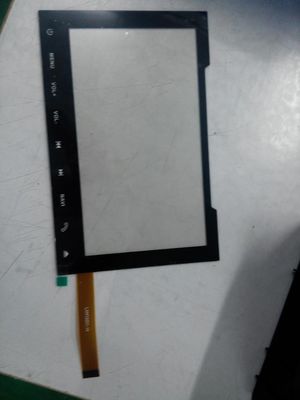

Industrial 4.2" 5" 5.7" Tft Resistive Touchscreen Panel With Usb Interface
Quick Detail:
Specification
|
№ |
Item |
Specification |
|
1 |
Item NO. |
DPT-4W-xxxxxx |
|
2 |
Detection method |
Four wire Resistive |
|
3 |
Size |
See engineering drawing |
|
4 |
Aspect ratio |
4:3 |
|
5 |
Input method |
Finger or touch pen |
|
6 |
Touch action force |
20~80g |
|
7 |
Position accuracy |
4.5mm |
|
8 |
Operating Voltage |
DC≤10V |
|
9 |
Operating current |
5~25mA |
|
10 |
Operating temperature |
-10°C~60°C |
|
11 |
Storage temperature |
-20°C~70°C |
|
12 |
Humidity |
10%~90% RH at 60°C, non-condensing |
|
13 |
Relative humidity |
10%~90% RH at 40°C, non-condensing |
|
14 |
Response time |
<10ms |
|
15 |
Transparency |
≥80% |
|
16 |
Surface hardness |
3H |
|
17 |
Material |
Glass + film |
|
18 |
Thickness |
ITO Glass:1.8mm |
|
ITO Film:0.188mm |
||
|
19 |
Light transmission |
92%~100% |
|
20 |
Durability |
Scratch-free; More than 50,000,000 touches in one location without failure |
|
21 |
Drivers available |
Windows 2000,Windows XP,Windows NT,Linux,Mac |
|
22 |
Surface Disposal |
Glare hard coating; Anti-Newton ring |
|
23 |
Certificates |
CE, FCC, RoHS |
|
24 |
Working environment |
Under sunlight,indoor and outdoor |
|
25 |
Pen hitting life |
≥10,000,000/point |
|
26 |
Pen sliding Durability |
≥500,000 times |
|
27 |
Finger Touch life |
≥35,000,000 times |
|
28 |
Surface resistance |
200Ω~900Ω |
|
29 |
Isolation resistance |
≥20MΩ @ DC 25V |
|
30 |
Linearity |
≤1.5% |
|
31 |
X.Y resistance |
X:180Ω~480Ω Y:500Ω~1080Ω |
|
32 |
Warranty |
1 year |
Any customized size we can design and produce based on customers' engineering drawing
|
No. |
Size |
Item NO. |
Outline Dimension (mm) OD |
Viewing Area(mm) VA |
Action Area(mm) AA |
|
1 |
Customized size 2”-10.1” with small pin and no controller |
||||
|
2 |
2.0” |
DPT-4W-0200135 |
50.50*38.00 |
40.60*33.80 |
39.60*32.68 |
|
3 |
2.5” |
DPT-4W-0250106 |
63.00*29.00 |
59.80*23.80 |
25.00*22.30 |
|
4 |
2.8” |
DPT-4W-0280131 |
68.80*48.80 |
59.00*44.80 |
58.00*43.80 |
|
5 |
DPT-4W-0280194 |
66.72*45.00 |
60.00*35.48 |
57.00*33.48 |
|
|
6 |
3.0” |
DPT-4W-0300115 |
72.00*39.00 |
67.30*34.00 |
62.30*31.80 |
|
7 |
DPT-4W-0300130 |
66.00*64.00 |
53.90*58.50 |
52.90*50.50 |
|
|
8 |
DPT-4W-0300199A |
76.69*55.00 |
67.79*51.60 |
66.79*50.60 |
|
|
9 |
DPT-4W-0300199B |
76.69*55.00 |
67.79*51.60 |
66.79*50.60 |
|
|
10 |
3.2” |
DPT-4W-0320128 |
77.50*49.80 |
71.90*40.10 |
71.50*39.70 |
|
11 |
DPT-4W-0320174 |
72.00*50.00 |
67.30*44.00 |
62.30*41.80 |
|
|
12 |
3.3” |
DPT-4W-0330038 |
82.00*24.00 |
78.00*18.50 |
/ |
|
13 |
DPT-4W-0330061 |
75.60*59.50 |
68.60*52.50 |
/ |
|
|
14 |
3.5” |
DPT-4W-0350018 |
76.00*68.60 |
64.00*61.60 |
/ |
|
15 |
DPT-4W-0350122 |
85.00*64.00 |
76.2*58.40 |
75.80*58.00 |
|
|
16 |
DPT-4W-0350129 |
77.20*55.10 |
71.00*50.70 |
69.00*49.20 |
|
|
17 |
3.6” |
DPT-4W-0360200A |
80.00*65.00 |
77.00*55.90 |
76.00*54.90 |
|
18 |
DPT-4W-0360200B |
80.00*65.00 |
77.00*55.90 |
76.00*54.90 |
|
|
19 |
4.2” |
DPT-4W-0420035 |
101.00*61.00 |
94.00*52.00 |
/ |
|
20 |
4.3” |
DPT-4W-0430008 |
104.70*64.90 |
99.00*57.60 |
96.40*55.00 |
|
21 |
DPT-4W-0430044 |
102.00*62.50 |
97.40*56.30 |
95.64*54.46 |
|
|
22 |
DPT-4W-0430097 |
104.50*65.90 |
96.74*57.05 |
95.74*54.50 |
|
|
23 |
5.0” |
DPT-4W-0500028 |
119.10*73.20 |
115.10*67.00 |
110.80*67.00 |
|
24 |
DPT-4W-0500034 |
117.50*70.00 |
112.50*65.00 |
112.00*65.00 |
|
|
25 |
DPT-4W-0500122 |
120.00*73.50 |
115.10*67.50 |
110.80*66.22 |
|
|
26 |
DPT-4W-0500192 |
120.70*76.30 |
111.20*68.20 |
108.30*65.10 |
|
|
27 |
5.2” |
DPT-4W-0520011 |
131.00*78.00 |
114.00*64.00 |
108.00*58.00 |
|
28 |
5.6” |
DPT-4W-0560041 |
126.50*100.00 |
113.80*85.90 |
112.80*84.90 |
|
29 |
5.7” |
DPT-4W-0570012 |
132.50*104.70 |
122.00*93.85 |
115.17*86.37 |
|
30 |
DPT-4W-0570055 |
133.00*103.00 |
123.00*93.00 |
115.17*86.36 |
|
|
31 |
DPT-4W-0570081 |
130.00*97.00 |
120.00*91.00 |
116.04*87.00 |
|
|
32 |
DPT-4W-0570108 |
129.50*101.50 |
117.30*87.90 |
112.50*83.80 |
|
|
33 |
6.1” |
DPT-4W-0610147 |
149.00*82.90 |
138.20*74.00 |
135.00*70.80 |
|
34 |
6.2” |
DPT-4W-0620002 |
154.80*87.80 |
140.70*80.00 |
137.52*77.22 |
|
35 |
DPT-4W-0620002B |
155.20*88.20 |
140.70*80.00 |
135.05*75.40 |
|
|
36 |
DPT-4W-0620045 |
155.20*88.20 |
138.82*78.53 |
135.82*75.53 |
|
|
37 |
DPT-4W-0620064 |
154.80*87.80 |
143.50*80.62 |
135.80*75.50 |
|
|
38 |
DPT-4W-0620074 |
154.30*87.20 |
140.80*80.00 |
135.80*75.00 |
|
|
39 |
DPT-4W-0620104 |
155.00*88.00 |
142.40*80.43 |
135.40*75.30 |
|
|
40 |
DPT-4W-0620120 |
152.75*87.55 |
142.35*79.95 |
134.65*72.40 |
|
|
41 |
6.5” |
DPT-4W-0650001 |
155.00*88.00 |
139.70*78.80 |
136.40*75.60 |
|
42 |
DPT-4W-0650168 |
154.80*89.10 |
146.40*80.55 |
142.38*76.30 |
|
|
43 |
6.7” |
DPT-4W-0670123 |
154.00*105.00 |
144.20*92.00 |
142.20*90.00 |
|
44 |
6.95” |
DPT-4W-0695140 |
166.50*92.50 |
159.24*84.87 |
154.40*80.56 |
|
45 |
DPT-4W-0695142 |
166.95*92.90 |
159.35*84.80 |
157.15*79.70 |
|
|
46 |
DPT-4W-0695148 |
166.70*92.50 |
158.60*84.25 |
154.50*80.50 |
|
|
47 |
7.0” |
DPT-4W-0700007 |
165.00*100.00 |
157.00*90.00 |
152.00*85.00 |
|
48 |
DPT-4W-0700021 |
164.60*103.60 |
155.70*94.70 |
152.40*91.44 |
|
|
49 |
DPT-4W-0700026 |
166.77*92.50 |
158.60*84.25 |
154.50*80.50 |
|
|
50 |
DPT-4W-0700030 |
164.50*99.50 |
155.30*87.22 |
150.40*83.50 |
|
|
51 |
DPT-4W-0700046 |
164.90*99.90 |
157.00*87.90 |
152.60*83.53 |
|
|
52 |
DPT-4W-0700047 |
164.80*99.80 |
156.30*89.30 |
154.30*86.80 |
|
|
53 |
DPT-4W-0700056 |
164.90*100.00 |
155.50*88.50 |
153.50*86.00 |
|
|
54 |
DPT-4W-0700060 |
164.90*100.00 |
155.60*88.64 |
152.60*83.94 |
|
|
55 |
DPT-4W-0700065B |
164.80*100.00 |
155.60*88.64 |
152.60*85.64 |
|
|
56 |
DPT-4W-0700069 |
161.20*97.00 |
156.20*88.80 |
155.60*88.20 |
|
|
57 |
DPT-4W-0700072 |
164.50*99.70 |
157.30*89.70 |
153.08*83.92 |
|
|
58 |
DPT-4W-0700073 |
164.90*99.90 |
157.50*89.90 |
149.60*83.49 |
|
|
59 |
DPT-4W-0700076 |
164.50*99.60 |
155.50*88.50 |
153.50*86.00 |
|
|
60 |
DPT-4W-0700079 |
164.80*99.90 |
155.90*90.40 |
152.70*85.70 |
|
|
61 |
DPT-4W-0700087 |
164.80*100.00 |
156.80*91.30 |
149.74*82.30 |
|
|
62 |
DPT-4W-0700092 |
164.70*99.80 |
154.60*87.64 |
151.60*84.64 |
|
|
63 |
DPT-4W-0700110 |
162.60*97.60 |
156.00*89.52 |
152.50*84.85 |
|
|
64 |
DPT-4W-0700117 |
164.40*99.90 |
154.20*91.25 |
151.94*84.70 |
|
|
65 |
DPT-4W-0700119 |
164.30*98.70 |
156.68*88.52 |
155.68*87.52 |
|
|
66 |
DPT-4W-0700126 |
163.60*98.90 |
156.40*89.30 |
151.35*84.20 |
|
|
67 |
DPT-4W-0700153 |
163.65*100.46 |
156.60*93.00 |
154.60*91.00 |
|
|
68 |
DPT-4W-0700157 |
164.90*99.00 |
157.25*90.10 |
155.25*88.10 |
|
|
69 |
DPT-4W-0700162 |
165.30*93.00 |
149.10*76.80 |
145.10*72.80 |
|
|
70 |
DPT-4W-0700169 |
164.90*100.00 |
156.70*89.10 |
152.38*84.70 |
|
|
71 |
7.1” |
DPT-4W-0710116 |
167.39*104.10 |
157.20*94.80 |
155.00*92.00 |
|
72 |
8.0” |
DPT-4W-0800004 |
192.20*116.00 |
183.00*105.70 |
175.80*99.30 |
|
73 |
DPT-4W-0800071 |
192.30*116.40 |
180.10*103.40 |
174.00*96.50 |
|
|
74 |
DPT-4W-0800082 |
192.56*116.80 |
182.60*106.00 |
173.60*96.50 |
|
|
75 |
DPT-4W-0800109 |
182.70*140.50 |
160.40*125.40 |
161.88*121.80 |
|
|
76 |
8.1” |
DPT-4W-0810005 |
192.40*115.86 |
180.10*103.78 |
175.64*98.36 |
|
77 |
8.4” |
DPT-4W-0810138 |
191.17*141.50 |
171.40*131.80 |
172.40*129.80 |
|
78 |
9.0” |
DPT-4W-0900075 |
210.70*126.10 |
201.00*114.70 |
197.00*110.70 |
|
79 |
DPT-4W-0900185 |
210.50*124.30 |
200.40*114.48 |
198.60*112.68 |
|
|
80 |
10.1” |
DPT-4W-1010086 |
235.00*143.00 |
225.50*128.00 |
221.50*124.00 |
|
81 |
10.4” |
DPT-4W-1040042 |
228.60*175.30 |
211.008157.50 |
208.80*155.30 |
